SoundPlus ® Infrared Transmitter •
D
D
Description:

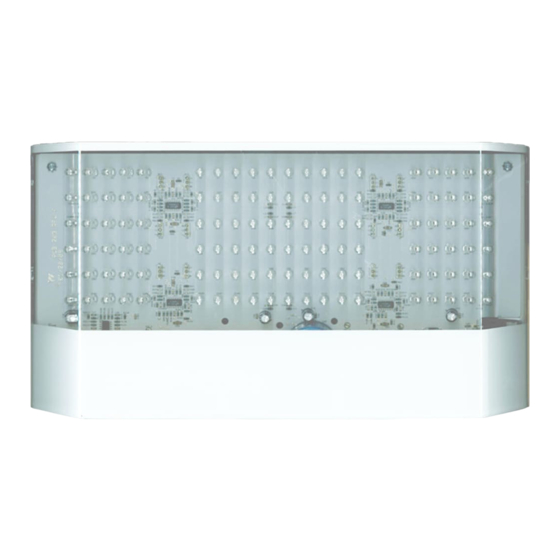

The TX90 two channel IR transmitter combines modulator and emitter technology into a single operating unit, which
reduces operating cost and eliminates precious rack space. The TX90 transmitter produces a wide-angle infrared sig-
nal that concentrates the IR energy efficiently in the listening area. Operating on the 2.3-3.8 MHz bandwidth, the
TX90 is less susceptible to radio and lighting interference. Each TX90 transmitter can cover up to 28,000 sq ft (2,600
sq m) in single-channel operation. The coverage area can be easily increased by connecting additional TX9 emitters.
A wall/ceiling omnidirectional mount is included, and stand kits are available for portable operation.
Applications:
Cinemas • Simultaneous Interpretation • Audio Description • Conferences • Multi-Media Rooms
Boardrooms • Courtrooms • Schools • Universities • Churches
WIR TX90 Transmitter:
Dimensions, Weight:
Color:
Power Supply:
Power Cable:
Modulation:
Carrier Frequency:
Emitter IR Power:
Coverage Area:
Signal-to-Noise Ratio:
Frequency Response:
Total Harmonic Distortion:
Compression:
Auto Carrier Shut-Off:

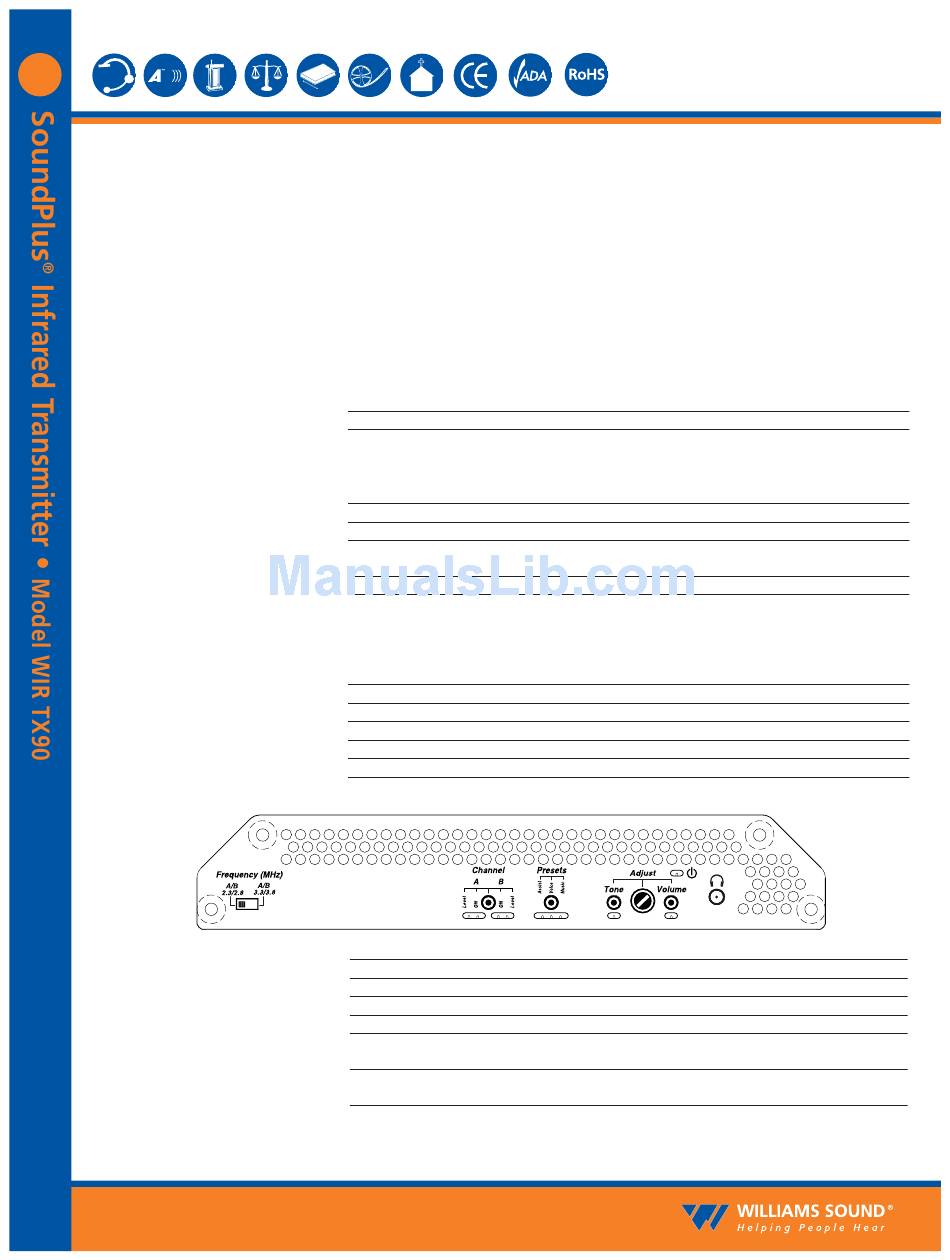

Fig. 1: TX90 Bottom View:
Power Indicator:
Audio Volume Level Controls:
Audio Indicators:
Carrier LEDs:
Phones Output:
Application Preset:
Tone Control:
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
* 90 days on accessories.
©2008, Williams Sound Corp. MCAT 042C
11.25" W x 6.25" H x 2.125" D (28.6 cm x 15.9 cm x 5.4 cm), 1.8 lbs (0.8 kg)
Black with white legends, black acrylic lens
Wall Transformer, 24 VAC, 50-60 Hz, 35 VA, 3-pin MOLEX Connector
North America: TFP 010, UL/CSA
Europe: TFP 027-01, 2-pin Schuko plug, CE
UK: TFP 027-02, 3-pin UK plug, CE
NEC Class 2 wiring, two-conductor, 18 ga., 200' (61m) max. length
FM Wideband, +50kHz deviation max., 50uS pre-emphasis
Channel A: Selectable, 2.3/2.8 MHz,
Channel B: Selectable, 3.3/3.8 MHz
3.5 watts
28,000 ft 2 (2,600 m 2 ) in single-channel mode when using the RX22-4 Receiver
18,000 ft (1,670 m ) in four-channel mode when using the RX22-4 Receiver
2 2
3,500 ft 2 (325 m 2 ) in single-channel mode when using the RX14-2 Receiver
3,063 ft 2 (285 m 2 ) in single-channel mode when using the RX16 Receiver
(See coverage area diagrams)
>75 dB, +3dB
80 to 15,000 Hz, electrical response
Less than .2%, electrical response at 1kHz
Music preset 1:1, Voice preset 1.5:1, Hearing Assist preset 2:1
20 minute timer shuts off carrier when no audio is present
Red LED
CHA and CHB Input Level, press to select, 28 dB adjustable range
CHA and CHB Audio Level, yellow LED, flash
2 green LED carrier "on" indicators
3.5mm TRS headphone jack. CH A tip, CH B ring on jack, 32 ohm headphone (min)
Music, Voice, Hearing Assist. Frequency response; Music: Flat; Voice: Mid-range
boost; Hearing Assist: High frequency boost
Press to select, 21 dB adjustable range (1 kHz between low boost/hi-cut and low
cut/hi boost).
1
Model WIR TX90
