MAN 167E

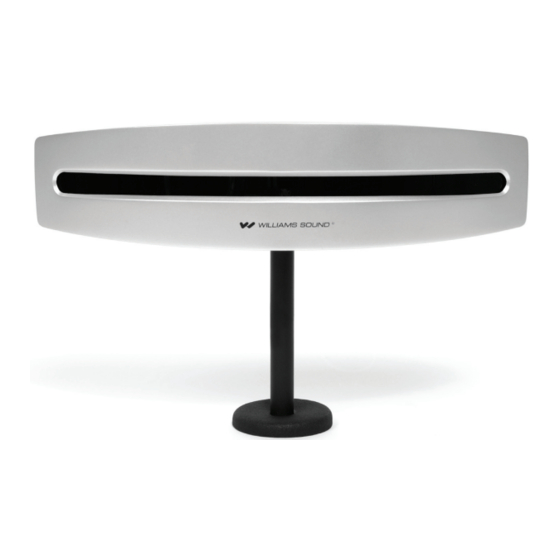

WIR TX75 C/D Infrared Transmitter
Quick Setup Guide
Determine Transmitter placement
Determine the best location where the WIR TX75 C or WIR TX75 D will
cover the desired area. Remember, IR signals need a clear line of sight to
the receiver for optimum reception. It is usually better to have the transmitter
located above the height of the receiver users.
The transmitter can be mounted on the wall or ceiling with the included
mounting bracket. An optional microphone adapter is available for mounting
to microphone stands. The threaded connector on the top and bottom of the
transmitter is standard to most camera tripods.
Plug the power supply into the transmitter. Make sure the green power LED
is on. Install the audio input cord of your choice and apply signal to the

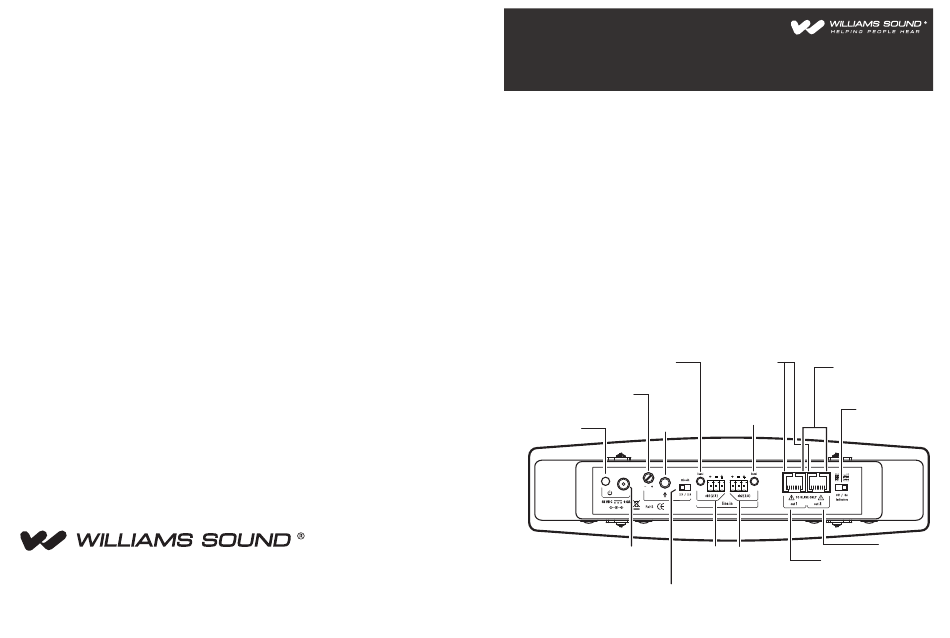

WIR TX75 C/D Master Rear View
CH 1 AUDIO
LEVEL INDICATOR
(YELLOW)
MIC
ADJUSTMENT
MIC
POWER
IN
INDICATOR
POWER IN
MIC CHANNEL
SELECTOR
SLAVE TRANSMIT
POWER INDICATOR
(YELLOW)
SLAVE POWER
INDICATOR
CH 2 AUDIO
(GREEN)
LEVEL
INDICATOR
INDICATOR
(YELLOW)
LIGHTS
(ON/OFF)
PHOENIX INPUTS
TX75 BUS
(2.3) TX75 C (2.8)
OUT TO
(3.3) TX75 D (3.8)
SLAVE (1)
(OR POE
INPUT)
TX75 BUS
OUT TO
SLAVE (2)
(OR POE
INPUT)
MAN 167E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Williams Sound WIR TX75 C
Summary of Contents for Williams Sound WIR TX75 C
- Page 1 Quick Setup Guide Determine Transmitter placement Determine the best location where the WIR TX75 C or WIR TX75 D will cover the desired area. Remember, IR signals need a clear line of sight to the receiver for optimum reception. It is usually better to have the transmitter located above the height of the receiver users.
- Page 2 (included) For larger facilities, additional emitters can be used to increase the total coverage area. The WIR TX75 C/D is capable of driving two WIR TX75-S slave emitters. Power, baseband and digital data bus are fed via CAT-5e cable to each TX75-S slave.
