WIR TX90
SoundPlus
Infrared Transmitter
®
Cinemas • Simultaneous Interpretation • Audio Description • Conferences • Multi-Media Rooms

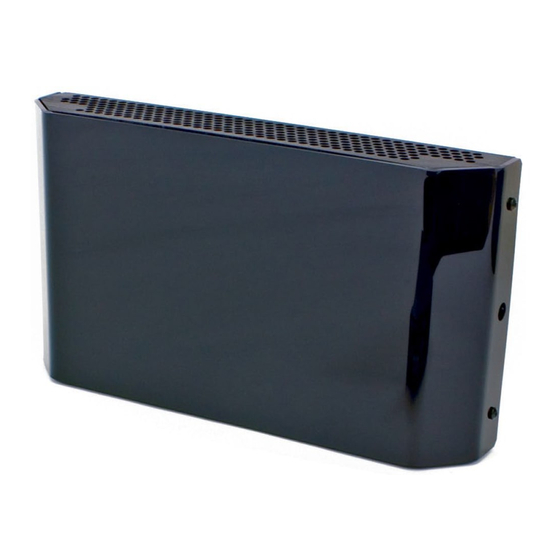

The TX90 two channel IR transmitter combines modulator and
emitter technology into a single operating unit, which reduces
operating cost and eliminates precious rack space. The TX90
transmitter produces a wide-angle infrared signal that concentrates
the IR energy efficiently in the listening area. Operating on the
2.3-3.8 MHz bandwidth, the TX90 is less susceptible to radio
and lighting interference. Each TX90 transmitter can cover up
to 28,000 sq ft (2,600 sq m) in single-channel operation. The
coverage area can be easily increased by connecting additional
TX9 emitters. A wall/ceiling omnidirectional mount is included, and
stand kits are available for portable operation.
SPECIFICATION DATA
INFRARED
Boardrooms • Courtrooms • Schools • Universities • Churches
Advertisement
Related Manuals for Williams Sound SoundPlus Infrared Transmitter WIR TX90
Summary of Contents for Williams Sound SoundPlus Infrared Transmitter WIR TX90
- Page 1 WIR TX90 SoundPlus Infrared Transmitter ® Cinemas • Simultaneous Interpretation • Audio Description • Conferences • Multi-Media Rooms Boardrooms • Courtrooms • Schools • Universities • Churches The TX90 two channel IR transmitter combines modulator and emitter technology into a single operating unit, which reduces operating cost and eliminates precious rack space.
- Page 2 SoundPlus® Infrared Transmitter WIR TX90 Transmitter: Dimensions, Weight: 11.25” W x 6.25” H x 2.125” D (28.6 cm x 15.9 cm x 5.4 cm), 1.8 lbs (0.8 kg) Color: Black with white legends, black acrylic lens (Available in white) Power Supply: Wall Transformer, 24 VAC, 50-60 Hz, 35 VA, 3-pin MOLEX Connector North America: TFP 010, UL/CSA Europe: TFP 027-01, 2-pin Schuko plug, CE UK: TFP 027-02, 3-pin UK plug, CE...
- Page 3 SoundPlus® Infrared Transmitter Fig 2: TX90 Rear View Power Input: Audio Input Connector: Input Level: Baseband Output: Baseband Cable: Operating Requirements: Mounting Kits: Warranty: Approvals: Compatible Receivers: Notes: Specifications: Single end input, volume & tone controls at mid point, 1 kHz, NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE! 3-Pin Molex, 24 VAC, 50-60 Hz, 35 VA CH A and CH B, 3 wire Phoenix Balanced or unbalanced, 316 mVRMS (-10dBV) nominal, 5.7k input impedance;...
- Page 4 SoundPlus Infrared Transmitter ® Feet Feet Fig. 3: Receiver Coverage Area with TX90 Transmitter in Single Channel Mode The coverage area for the TX90 will vary depending on the receiver being used. The diagram above demonstrates the receiver coverage when operating a single TX90 transmitter in single channel mode. Patterns are direct radiation patterns. Note: Reflections of the infrared light from walls, ceilings and floors may change these patterns.
-
Page 5: Infrared Transmitter
SoundPlus Infrared Transmitter ® Optional WIR RX22-4 Receiver: Channel Earphone Selector Knob Jack "On" On/Off Indicator LED Volume Switch RX22-4 Top RX22-4 Front Fig. 8: WIR RX22-4 Receiver Receiver Style: Size: Weight: Color and Material: Lanyard: Operating Temperature: Battery Type: Bid Specs Battery Life: Battery Drain: Charging Contacts: Carrier Frequency: De-Emphasis: FM Deviation:... - Page 6 SoundPlus Infrared Transmitter ® Bid Specs The Williams Sound WIR TX90 transmitter shall consist of an all-in-one modulator and emitter operating on switchable carrier frequencies of 2.3/2.8 MHz or 3.3/3.8 MHz. The carrier frequency shall use 50 kHz deviation and 50µs pre-emphasis.
