Model No. 831.21520.0
Serial No.
• Assembly
• Operation
• Maintenance
• Part List and Drawing
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Sears, Roebuck and Co., Hoffman Estates, IL 60179

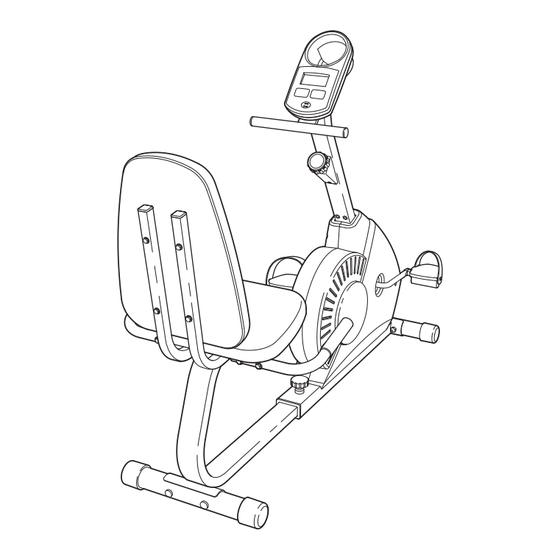

BIKE EXERCISER
User's Manual
Advertisement
Table of Contents
Related Manuals for Weslo Pursuit 530 Bike
Summary of Contents for Weslo Pursuit 530 Bike
- Page 1 Model No. 831.21520.0 BIKE EXERCISER Serial No. User’s Manual Serial Number Decal • Assembly • Operation • Maintenance • Part List and Drawing CAUTION Read all precautions and instruc- tions in this manual before using this equipment. Keep this manual Sears, Roebuck and Co., Hoffman Estates, IL 60179 for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............2 BEFORE YOU BEGIN . -
Page 3: Before You Begin
BEFORE YOU BEGIN Congratulations for selecting the new WESLO after reading this manual, please call 1-800-4-MY- ® PURSUIT 530 exercise cycle. Cycling is one of the HOME (1-800-469-4663). To help us assist you, ® most effective exercises for increasing cardiovascular please note the product model number and serial fitness, building endurance, and toning the body. -
Page 4: Assembly
ASSEMBLY Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tools, assembly requires a Phillips screwdriver , two adjustable wrenches , and pliers... - Page 5 1. While another person lifts the front of the Frame (1) slightly, attach a Stabilizer (2) with two M10 x 65mm Carriage Bolts (30) and two M10 Nylon Locknuts (33). 2. Attach the other Stabilizer (2) to the Seat Frame (5) with two M10 x 65mm Carriage Bolts (30) and two M10 Nylon Locknuts (33).
- Page 6 5. Attach a Seat Handle (50) to the round tube on the Left Seat Bracket (52) with two M6 x 26mm Bolts (62) and two M6 Nylon Locknuts (63). Attach the other Seat Handle (50) to the Right Seat Frame (53) in the same way. 6.
- Page 7 8. The Console (16) requires three AA batteries (not included); alkaline batteries are recommended. Insert Batteries three batteries into the Console as shown in the inset drawing. Make sure that the batteries are oriented as shown by the markings inside the Console. Console While another person holds the Console (16), attach Wire...
-
Page 8: How To Operate The Exercise Cycle
11. Identify the Left Pedal (24), which is marked with an “L.” Using an adjustable wrench, firmly tighten the Left Pedal counterclockwise into the left arm of the Crank (21). Tighten the Right Pedal (not shown) clockwise into the right arm of the Crank. Important: Tighten both Pedals as firmly as possible. - Page 9 FEATURES OF THE CONSOLE HOW TO OPERATE THE CONSOLE The console features a selection of modes that pro- Make sure that there are batteries in the console (see vide instant exercise feedback during your workouts. BATTERY REPLACEMENT on page 11). If there is a The modes are described below: sheet of clear plastic on the console, remove it.
- Page 10 3. Measure your heart rate if desired. Make sure that you are applying the proper amount of pressure to the pulse sensor. Try the pulse sensor To measure your several times until you become familiar with it. heart rate, stop Remember to sit still while measuring your heart pedaling and rate.
-
Page 11: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Inspect and properly tighten all parts of the exercise With the left side shield removed, locate the Reed cycle regularly. Replace any worn parts immediately. Switch (43). Turn the Crank (21) until the Magnet (38) is aligned with the Reed Switch. Next, loosen, but do To clean the exercise cycle, use a damp cloth and a not remove, the indicated M4 x 16mm Screw (49). -
Page 12: Conditioning Guidelines
CONDITIONING GUIDELINES The following guidelines will help you to plan your During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener- exercise program. Remember that proper nutrition and adequate rest are essential for successful results. gy. - Page 13 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
-
Page 14: Part List
PART LIST—Model No. 831.21520.0 R0405A Key No. Qty. Description Key No. Qty. Description Frame Flywheel Stabilizer Magnet Flange Nut Flywheel Axle Stabilizer Endcap Bearing Seat Frame M4 x 25mm Screw 11.5mm Spacer M8 Split Washer Handlebar Endcap Reed Switch/Wire Foam Grip Crank Bearing Set Adjustment Knob Lower Cable... -
Page 15: Exploded Drawing
EXPLODED DRAWING—Model No. 831.21520.0 R0405A... -
Page 16: Full 90 Day Warranty
FULL 90 DAY WARRANTY For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this Sears Bike Exerciser, contact the nearest Sears Service Center throughout the United States and Sears will repair or replace the Bike Exerciser, free of charge. This warranty does not apply when the Bike Exerciser is used commercially or for rental purposes.
