Model No. 831.283161
Serial No.
Serial
Number
Decal
= Assembly
= Operation
= Maintenance
= Part List and Drawing
,_CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment.
Keep this manual
for future reference.
EXE
User's
SE
Manual
Patent Pending
Sears, Roebuck and Co., Hoffman Estates, IL 60179

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pursuit 510 cs and is the answer not in the manual?

Questions and answers

Related Manuals for Weslo Pursuit 510 cs

Summary of Contents for Weslo Pursuit 510 cs

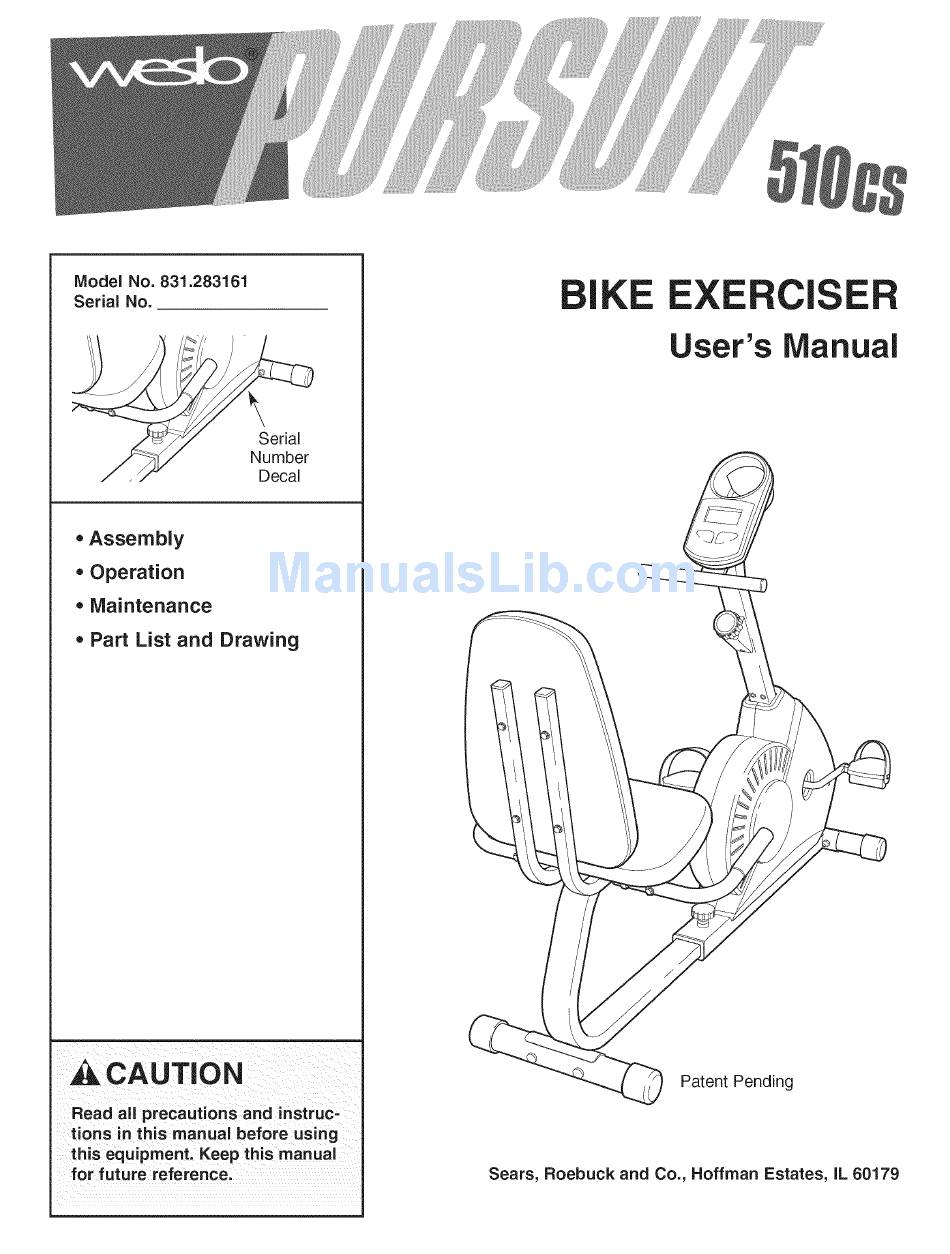

  • Page 1 Model No. 831.283161 Serial No. User's Manual Serial Number Decal = Assembly = Operation = Maintenance = Part List and Drawing ,_CAUTION Patent Pending Read all precautions and instruc- tions in this manual before using this equipment. Keep this manual for future reference.
  • Page 2 TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............BEFORE YOU BEGIN ..............ASSEMBLY ................HOW TO OPERATE THE EXERCISE CYCLE ............ MAINTENANCE AND TROUBLESHOOTING ........... CONDITIONING GUIDELINES ............... PART LIST ................EXPLODED DRAWING ..............ORDERING REPLACEMENT PARTS ..........Back Cover LIMITED WARRANTY ..............
  • Page 3 BEFORE YOU BEGIN Congratulations for selecting the new WESLO _ HOME _r_ (1-800-469-4663). To help us assist you, PURSUIT 510 CS exercise cycle. Cycling is one of please note the product model number and serial the most effective exercises for increasing cardiovas- number before calling.

  • Page 4: Assembly

    ASSEMBLY Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tools, assembly requires a Phillips screwdriver , two adjustable wrenches , and pliers...
  • Page 5 While another person lifts the front of the Frame (1) slightly, attach a Stabilizer (2) with two M10 x 65mm Carriage Bolts (30) and two M10 Nylon Locknuts (33). Attach a Stabilizer (2) to the Seat Frame (5) with two M10 x 65mm Carriage Bolts (30) and two M10 Nylon Locknuts (33).
  • Page 6 Attach a Seat Handle (50) to the round tube on the Left Seat Bracket (52) with two M6 x 32mm Bolts (62) and two M6 Nylon Locknuts (63). Attach the other Seat Handle (50) to the Right Seat Frame (53) in the same way. Attach the Backrest (54) to the Seat Brackets (52, 53) with four M6 x 38mm Screws (60) and four M6 Washers (61).
  • Page 7 The Console (16) requires three AA batteries (not included); alkaline batteries are recommended. Insert _Batteries three batteries into the Console as shown. Make sure that the batteries are oriented as shown by the markings inside the Console. Hold the Console (16) near the Handlebar (15). Insert ..
  • Page 8 11. Identify the Left Pedal (24), which is marked with an "L." Using an adjustable wrench, firmly tighten the Left Pedal counterclockwise into the left arm of the Crank (21). Tighten the Right Pedal (not shown) clock- wise into the right arm of the Crank. Important: Tighten both Pedals as firmly as possible.

  • Page 9: Features Of The Console

    FEATURES OF THE CONSOLE 2. Select one of the modes: The easy-to-use console features six modes that pro- Scan mode-- vide instant exercise feedback during your workouts. When the power The modes are described below. is turned on, the scan mode will be selected automati- cally.

  • Page 10: Maintenance/Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING With the left side shield removed, locate the Reed Inspect and properly tighten all parts of the exercise cycle regularly. Replace any worn parts immediately. Switch (43). Turn the Crank (21) until the Magnet (38) is aligned with the Reed Switch. Loosen, but do not To clean the exercise cycle, use a damp cloth and a remove, the M4 x 16mm Screw (49).
  • Page 11 CONDiTiONiNG GUiDELiNES The following guidelines will help you to plan your bet in your training zone as you exercise. For maxi- exercise program. Remember that proper nutrition mum fat burning, adjust the intensity of your exercise and adequate rest are essential for successful results. until your heart rate is near the middle number in your training zone as you exercise.
  • Page 12 EXERCISE FREQUENCY workouts. After a few months of regular exercise, you may complete up to five workouts each week, if To maintain or improve your condition, plan three work- desired. Remember, the key to success is make exer- outs each week, with at least one day of rest between cise a regular and enjoyable part of your everyday life.
  • Page 13 NOTES...
  • Page 14 EXPLODED DRAWING--Model No. 831.283161 R0004A Key No. Qty. Description Key No. Qty. Description Frame C-Magnet Bracket Stabilizer Flywheel M8 x 21ram Bolt Magnet Stabilizer Endcap Flywheel Axle Seat Frame 6200Z Bearing M4 x 16mm Flat Head Screw M4 x 25ram Screw Handlebar Endcap M8 Split Washer Foam Grip...
  • Page 15 EXPLODED DRAWING--Model No. 831.283161 R0004A 58-- 11__i...
  • Page 16 Your Home For repair = in your home = of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter made it, no matter who sold it! i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i For the replacement parts, accessories, and user's manuals that you need to do=it=yourself. iiiiiiiiiiiiiiiiiii For Sears professional installation of home appliances...
