Weslo PURSUIT 510 CS User Manual

Weslo PURSUIT 510 CS User Manual

Hide thumbs Also See for PURSUIT 510 CS:

Advertisement

Quick Links

Download this manual
®
Model No. WLEX19820
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction.
If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE. The
technicians on our customer hot
line will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.-Fri., 6 a.m.-6 p.m. MST
Read
all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
USER'S MANUAL
www.weslo.com
new products,
prizes,
fitness tips, and much more!

Advertisement

loading
Need help?

Need help?

Do you have a question about the PURSUIT 510 CS and is the answer not in the manual?

Questions and answers

Related Manuals for Weslo PURSUIT 510 CS

Summary of Contents for Weslo PURSUIT 510 CS

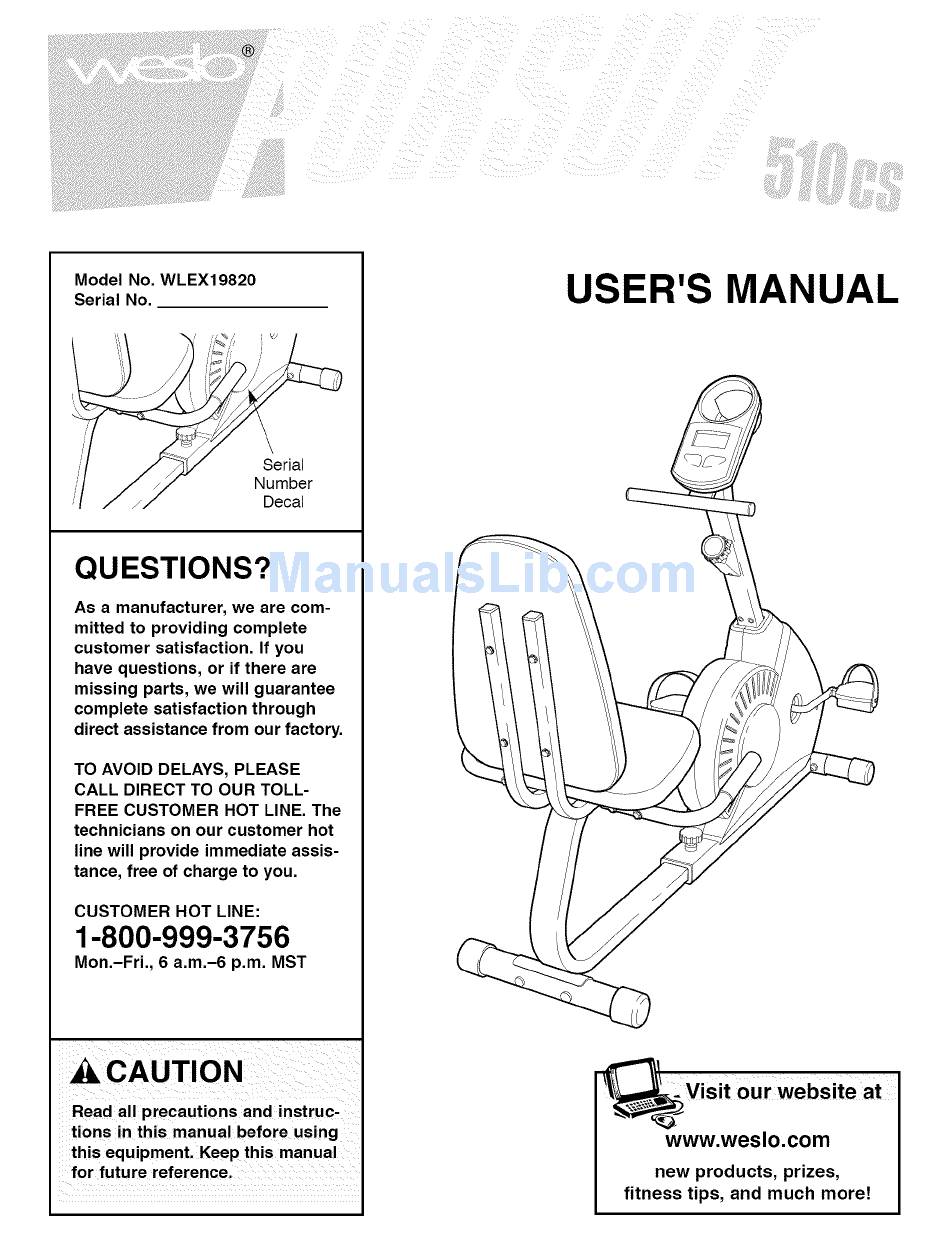

  • Page 1 CUSTOMER HOT LINE: 1-800-999-3756 Mon.-Fri., 6 a.m.-6 p.m. MST Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Keep this manual for future reference. new products, prizes, fitness tips, and much more!
  • Page 2 TABLE OF CONTENTS IMPORTANT PRECAUTIONS ............. BEFORE YOU BEGIN ..............ASSEMBLY ................HOW TO OPERATE THE EXERCISE CYCLE ..........MAINTENANCE AND TROUBLESHOOTING ..........CONDITIONING GUIDELINES ............PART LIST ................EXPLODED DRAWING ..............ORDERING REPLACEMENT PARTS ..........Back Cover LIMITED WARRANTY ............
  • Page 3 BEFORE YOU BEGIN Congratulations for selecting the new WESLO _ Service Department toll-free at 1-800-999-3756, PURSUIT 510 CS exercise cycle. Cycling is one of Monday through Friday, 6 a.m. until 6 p.m. Mountain the most effective exercises for increasing cardiovas- Time (excluding holidays).
  • Page 4 ASSEMBLY Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tools, assembly requires a Phillips screwdriver two adjustable wrenches and pliers _.
  • Page 5 Whileanother person liftsthefrontofthe Frame (1) slightly, a ttach a Stabilizer (2)withtwoMIOx 65mm Carriage Bolts(30)andtwo MIONylonLocknuts ( 33). Attacha Stabilizer (2)to theSeatFrame (5)withtwo MIOx 65mmCarriage Bolts (30)andtwo MIONylon Locknuts ( 33). Insert t heendofthe SeatFrame (5)intothe Frame (1).Next,firmlypresstheSeatFrame Bushing (20) intothe Frame. S ecure the SeatFrame Bushing to the Frame withtwoM4x 5mmScrews (65).Tighten the Adjustment Knob(9)intothe Frame.
  • Page 6 Attacha SeatHandle (50)tothe round tubeonthe LeftSeatBracket ( 52)withtwoM6x 32mmBolts(62) andtwo M6NylonLocknuts ( 63). Attach the otherSeatHandle (50)to theRightSeat Frame (53)in thesameway. Attach the Backrest (54)tothe SeatBrackets (52,53) withfourM6x 38mmScrews(60)andfourM6 Washers (61). Seestep4.Tighten thetwoM8NylonLocknuts ( 10). 7. Attach theSeat(12)tothe SeatBrackets (52,53)with fourM6x 38mmScrews (60)andfourM6Washers (61).
  • Page 7 TheConsole (16)requires threeAAbatteries (not included); alkaline batteries a rerecommended. Insert _Batteries threebatteries intothe Console as shown. M akesure ,, ..thatthe batteriesareorientedas shownby the markingsinsidethe Console. HoldtheConsole (16)nearthe Handlebar (15).Insert theconsole wiredownthrough theindicated holein e__j_ the Handlebar. Note: T heconsole wireis longer t han ___1 .;...
  • Page 8 11. Identify the Left Pedal (24), which is marked with an "L." Using an adjustable wrench, firmly tighten the Left Pedal counterclockwise into the left arm of the Crank (21). Tighten the Right Pedal (not shown) clock- wise into the right arm of the Crank. Important: Tighten both Pedals as firmly as possible.
  • Page 9 FEATURES OF THE CONSOLE 2. Select one of the modes: The easy-to-use console features five modes that pro- Scan mode-- vide instant exercise feedback during your workouts. When the power Mode Indicators The modes are described below. is turned on, the scan mode will be selected automati- _-w,,m...
  • Page 10 MAINTENANCE AND TROUBLESHOOTING Inspect and properly tighten all parts of the exercise Next, turn the resistance knob to the lowest setting cycle regularly. Replace any worn parts immediately. (see HOW TO ADJUST THE PEDALING RESIS- TANCE on page 8). To clean the exercise cycle, use a damp cloth and a small amount of mild detergent.
  • Page 11 HOW TO ADJUST THE REED SWITCH If the console does not display correct feedback, the reed switch should be adjusted. In order to adjust the reed switch, the left side shield must be removed (see HOW TO ADJUST THE RESISTANCE STRAP on page 10).
  • Page 12 CONDITIONING GUIDELINES The following guidelines will help you to plan your ber in your training zone as you exercise. For maxi- exercise program. Remember that proper nutrition mum fat burning, adjust the intensity of your exercise and adequate rest are essential for successful results. until your heart rate is near the middle number in your training zone as you exercise.
  • Page 13 EXERCISE FREQUENCY workouts. After a few months of regular exercise, you may complete up to five workouts each week, if To maintain or improve your condition, plan three work- desired. Remember, the key to success is make exer- outs each week, with at least one day of rest between cise a regular and enjoyable part of your everyday life.
  • Page 14 EXPLODED DRAWING-- Model No. WLEX19820 Roao2A Key No. Qty. Description Key No. Qty. Description Frame Belt Stabilizer Axle Washer Strap Clamp Flywheel Stabilizer Endcap Magnet Seat Frame Flywheel Axle M4 x 16mm Self-tapping Screw 6200Z Bearing Handlebar Endcap M4 x 25mm Screw Foam Grip M8 Split Washer Adjustment Knob...
  • Page 15 EXPLODED DRAWING-- Model No. WLEX19820 Roao2A 34.--1_...
  • Page 16 • The MODEL NUMBER of the product (WLEX19820) • The NAME of the product (WESLO "; PURSUIT 510 CS exercise cycle) • The SERIAL NUMBER of the product (see the front cover of this manual) • The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 14) WESLO is a registered trademark of ICON Health &...
