Weslo Pursuit 530 User Manual

Weslo Pursuit 530 User Manual

Hide thumbs Also See for Pursuit 530:
Table of Contents

Advertisement

Quick Links

www.weslo.com
Model No. WLEX91408.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO
NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
1-866-699-3756
CALL TOLL-FREE:
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal
USERʼS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pursuit 530 and is the answer not in the manual?

Questions and answers

Related Manuals for Weslo Pursuit 530

Summary of Contents for Weslo Pursuit 530

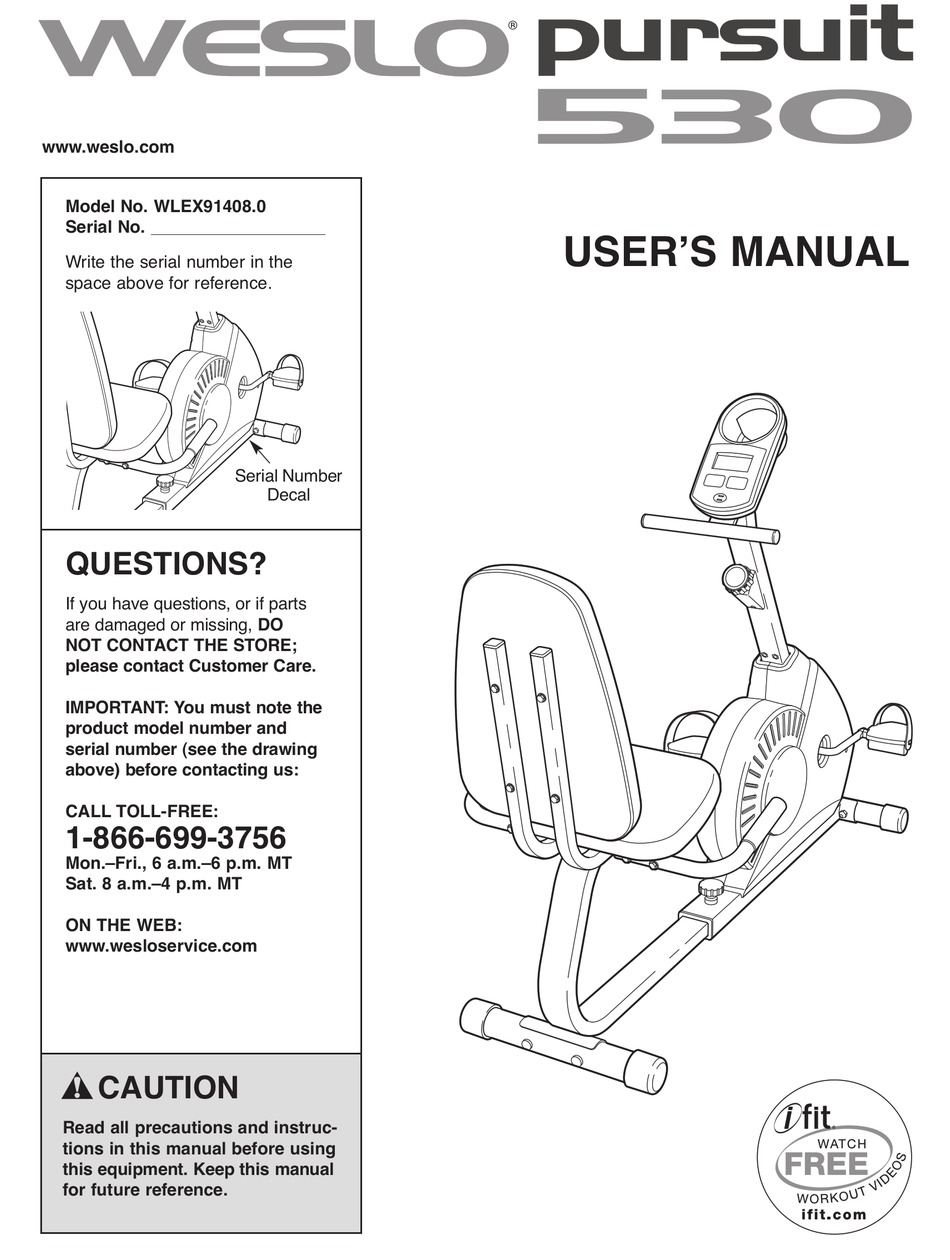

  • Page 1 USERʼS MANUAL Model No. WLEX91408.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care.

  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise cycle before using your exercise cycle. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

  • Page 4: Before You Begin

    The model number and the location of the serial for increasing cardiovascular fitness, building number decal are shown on the front cover of this endurance, and toning the body. The PURSUIT 530 manual. exercise cycle offers a selection of features designed...

  • Page 5: Assembly

    ASSEMBLY To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480. Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack- ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tool(s), assembly requires a Phillips screwdriver and an adjustable wrench...
  • Page 6 To make assembly easier, read the information on page 5 before you begin assembling the exercise cycle. While another person lifts the front of the Frame (1), attach a Stabilizer (2) with two M10 x 65mm Carriage Bolts (30) and two M10 Locknuts (33) (only one is shown).
  • Page 7 4. Attach the Left and Right Seat Brackets (52, 53) to the Seat Frame (5) with two M8 x 115mm Bolts (57), four M8 Washers (14), and two M8 Locknuts (10). Do not tighten the Locknuts yet. 5. Attach a Seat Handle (50) to the round tube on the Left Seat Bracket (52) with two M6 x 30mm Bolts (62) and two M6 Locknuts (63).
  • Page 8 7. Attach the Seat (12) to the Seat Brackets (52, 53) with four M6 x 30mm Patch Screws (60) and four M6 Washers (61). 8. The Console (16) requires three AA batteries (not included); alkaline batteries are recom- mended. IMPORTANT: If the Console has Batteries been exposed to cold temperatures, allow it to warm to room temperature before insert-...
  • Page 9 10. While another person holds the Handlebar (15) near the Upright (13), connect the console wire to the Extension Wire (36). Tip: Avoid pinching the wires. Attach the Handlebar (15) to the Upright (13) with two M8 x 15mm Patch Screws (34) and two M8 Split Console Washers (42).

  • Page 10: How To Use The Exercise Cycle

    12. Identify the Left Pedal (24), which is marked with an “L.” Using an adjustable wrench, firmly tighten the Left Pedal (24) counterclockwise into the left arm of the Crank (21). Tighten the Right Pedal (not shown) clockwise Strap into the right arm of the Crank (not shown). IMPORTANT: Tighten both Pedals as firmly as possible.
  • Page 11 FEATURES OF THE CONSOLE HOW TO OPERATE THE CONSOLE The console features the following modes that provide Note: Make sure that there are batteries in the console exercise feedback: (see BATTERY REPLACEMENT on page 12). If there is a sheet of clear plastic on the console, remove it. 1.

  • Page 12: Maintenance And Troubleshooting

    3. Measure your heart rate if desired. your thumb off the pulse sensor for a few sec- onds. Then, place your thumb on the pulse sensor To measure your as described above. heart rate, stop pedaling and Make sure that you are applying the proper place your thumb amount of pressure to the pulse sensor.

  • Page 13: Exercise Guidelines

    EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning time. During the first few minutes of exercise, your this or any exercise program, consult your body uses carbohydrate calories for energy.

  • Page 14: Part List

    PART LIST—Model No. WLEX91408.0 R1108A Key No. Qty. Description Key No. Qty. Description Frame Flywheel Stabilizer Magnet Flange Nut Flywheel Axle Stabilizer Cap Bearing Seat Frame M4 x 25mm Screw 11.5mm Spacer M8 Split Washer Handlebar Cap Reed Switch/Wire Foam Grip Crank Bearing Set Adjustment Knob Lower Cable...

  • Page 15: Exploded Drawing

    EXPLODED DRAWING—Model No. WLEX91408.0 R1108A...

  • Page 16: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...

This manual is also suitable for:

Wlex91408.0
