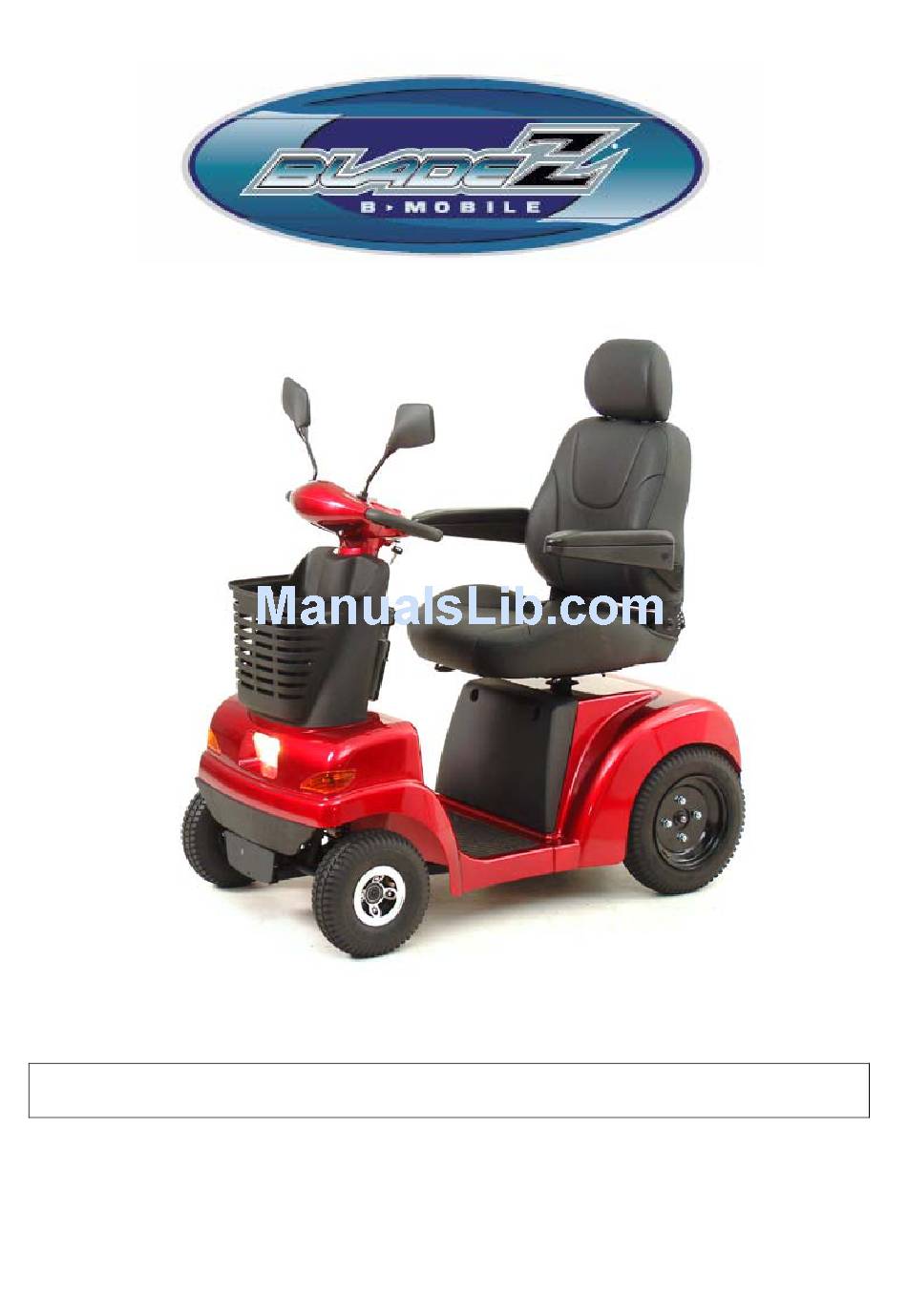

- Page 1 DKS600 PRESIDENT OWNER’S MANUAL BLADEZ HEALTH PRODUCTS CORPORATION TELEPHONE: 1-866-610-0330 20155 ELLIPSE EMAIL: BLADEZHEALTHPRODUCTS@EBLADEZ.COM FOOTHILL RANCH, CA 92610 WEBSITE: WWW.EBLADEZ.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENT PREFACE…………………………………………………………….. 3 ASSEMBLY INSTRUCTIONS……………………………………... SAFETY NOTICE…………………………………………………… 3.1 Before Driving 3.2 While Driving ELECTROMAGNETIC INTERFERENCE………………………. 9 PARTS INTRODUCTION………………………………………….. Parts Description OPERATION………………………………………………………… 6.1 Operation Panel 6.2 How to Operate Your vehicle 6.3 How to Set to Freewheel Mode CHARGING AND BATTERY………………………………………. 7.1 Charging the Battery 7.2 Charger 7.3 Battery... -
Page 3: Preface
♦ This owner’s manual includes instructions for all aspects of the vehicle, including assembly instructions and how to deal with possible accidents. ♦ This owner’s manual is written solely for the Bladez B*Mobile, DKS600 - President ♦ The symbols used in this manual are explained below. -
Page 4: Assembly Instructions
A S S E M B LY I N S T RU C T I O N S 1. Once you have removed your vehicle from the box it will be folded. (Fig.1) The basket and the seat are included with it. Remove the seat and basket and set them aside. - Page 5 A S S E M B LY I N S T RU C T I O N S To attach the basket to the vehicle use the five screws provided. Place the basket on the metal bracket on the front of the vehicle and line up the five holes in the bottom of the basket (Fig.
-
Page 6: Safety Notice
S A F E T Y N OT I C E 3.1 Before Driving The user should become familiar with all functions and features of this vehicle before driving. Please always keep safety in mind. It may be beneficial to have an assistant such as a family member or a care professional present while using the vehicle. -
Page 7: While Driving
S A F E T Y N OT I C E The B*Mobile vehicle is limited to one passenger Do not carry passengers on your vehicle. (Including children) Do not use this vehicle to carry or haul goods ♦ The maximum weight can be carried (including goods) is 308.6 lbs (140 kg). Refer to section “10-SPECIFICATIONS”... - Page 8 3 . S A F E T Y N OT I C E Ramps, inclines and declines ♦ When coming to an inclined road, Set the speed dial to a middle setting and proceed slowly. Always maintain a safe speed and avoid any sudden starts or stops. When going down a declined road, set the speed dial to a low setting to ensure a safe and controlled decent.
-
Page 9: Electromagnetic Interference
4 . E L E C T RO M AG N E T I C I N T E R F E R E N C E This portion of the owner’s manual will provide the user with basic information about the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure, or to minimize the degree of exposure. - Page 10 4 . E L E C T RO M AG N E T I C I N T E R F E R E N C E 3. Long-range transmitters and transceivers, such as commercial broadcast transmitter (radio and TV broadcast antenna towers) and amateur (HAM) radios. Note: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not...
-
Page 11: Parts Introduction
PA RT S I N T RO D U C T I O N PARTS DESCRIPTION, DK S600 1.Speed Dial 2. Rear Mirror 3. Control Panel 4.Tiller 5. Basket 6. Head Lamp 7. Signal Lamp 8. Front bumper 9. Head – Rest 10. -
Page 12: Operation
O P E R AT I O N 6.1 OPERATION PANEL 1. Speed Dial 2. Horn Button 3. Signal Light Switch 4. Key Hole/Head Light / Rear Light Switch 5. Speed Control Lever 6. Battery Condition Meter 7. Warning light switch 8. - Page 13 6 . O P E R AT I O N Signal Lamp Switch ♦ The front and rear lights will flash in the direction of the turn signal indicated by the user. ← left signal lamp → Right signal lamp ♦...
- Page 15 6 . O P E R AT I O N Battery Condition Meter ♦ When the power switch is turned on, the battery condition meter will light up with 5 LED lights indicating the remaining power of battery. All 5 LED lights: full power. 1 LED light with beeper warning: out of power.
-
Page 16: How To Set To Freewheel Mode
6 . O P E R AT I O N 6.3 HOW TO SET TO FREEWHEEL MODE ♦ Drive on mode: Push lever down completely, the vehicle can be driven by motor power. ♦ Freewheel Mode: Lift the lever up completely, the vehicle can now be moved manually. - Page 17 6 . O P E R AT I O N Starting and Driving 1. Make sure the seat is installed properly. 2. Make sure the tiller has been secured properly. 3. Make sure the armrest has been returned to the lowest position. 4.
- Page 18 6 . O P E R AT I O N Stopping 1. Release the speed control lever completely, and the vehicle will activate the electromagnetic brake and stop. 2. Turn the power switch to “OFF.” Then pull out the key. ATTENTION ♦...
-
Page 19: Charging And Battery
7 . C H A RG I N G A N D BAT T E RY 7.1 CHARGING THE BATTERY Be sure to follow all procedures below • Turn the power switch to “OFF”. • Open the charging socket cap in the rear lighting package •... -
Page 20: Battery
7 . C H A RG I N G A N D BAT T E RY WARNING 1. Keep away from flammable objects while charging, as it may lead to fire or explosion of battery. 2. As the battery may produce hydrogen, do not smoke while charging. Always charge your batteries in a well-ventilated space. - Page 21 7 . C H A RG I N G A N D BAT T E RY Cleaning the battery If the battery is contaminated by dirty water, battery acid, dust, or other factors, the battery will discharge quickly. Follow the following steps to clean the battery. 1.
-
Page 22: Inspection And Maintenance
♦ Check the tires tread depth. ♦ Are there any abnormal noises? Other ♦ Is there an oil leakage from transmission box? ATTENTION Go to Bladez Health Products Corporation service center for inspection and maintenance if you find anything wrong. -
Page 23: Regular Checking Record
8 . I N S P E C T I O N A N D M A I N T E NA N C E 8.2 REGULAR CHECKING RECORD To make sure your vehicle remains in good condition, go to your B Mobile service center regularly for maintenance and record it accordingly every six months after purchasing. -
Page 24: Fuse And Tire
If the power switch is “ON” and the battery condition meter is not lit, check the fuse. SUGGESTION Contact your Bladez Health Product Corporation service center for inspecting or replacing the fuse, since the tiller shroud has to be removed first to replace the fuse. Tires The condition of the tires depends on how you drive and use your vehicle. -
Page 25: Maintenance
8 . I N S P E C T I O N A N D M A I N T E NA N C E 8.4 MAINTENANCE ♦ You must maintain the vehicle frequently if you constantly drive on grass, sand, or gravel road. -
Page 26: Trouble Shooting
9 . T RO U B L E S H O OT I N G Vehicle Turns On But Doesn’t Move ♦ May still be in freewheel mode. ♦ Make sure the lever is completely pushed down to disengaged freewheel mode, then turn off the vehicle and turn it back on. - Page 27 9 . T RO U B L E S H O OT I N G DC Status Notes Fault Impact on Indicator Description Controller Flash Code Battery needs Reduced drive is The battery voltage has dropped recharging available below 23.3 volts in neutral. Recharge batteries.
-
Page 28: Specifications
1 0 . S P E C I F I C AT I O N S DK S600 Model Name B*Mobile – President Packing Size 64.2"×28.0"×26.3" (1630mmx710mmx670mm) Overall Height (without seat) 38” (965.20 mm) Overall Length 47” (1193.8 mm) Overall Width 26.5”... -
Page 29: Warranty
11.2.1 Contents and Duration of Warranty Contents of Warranty 1. For one year from the date of purchase, Bladez Health Products Corp will replace at our option free of charge, any part or electronic component found to be defective due workmanship and/or material upon the examination by a certified Bladez Health Product Corp. - Page 30 3. Tampering by changing or adding components to the vehicle which is not approved by Bladez Health Products Corp. 4. Damage caused by not using Bladez Health Products Corp. genuine parts or any parts not recommended by Bladez Health Products Corp.
- Page 31 1 1 . W A R R A N T Y 11.2.4 Warranty effectiveness The Product registration Card must be completely filled out and stamped by the Bladez Health Products Corporation Dealer where it was purchased. 11.2.5 Warranty rights are non-Transferable The Bladez Health Products Corp warranty is non-Transferable.
