- Page 1 DKS500 AMBASSADOR OWNER’S MANUAL BLADEZ HEALTH PRODUCTS CORPORATION TELEPHONE: 1-866-610-0330 20155 ELLIPSE EMAIL: B LADEZHEALTHPRODUCTS@EBLADEZ.COM FOOTHILL RANCH, CA 92610 WEBSITE: WWW.EBLADEZ.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PREFACE…………………………………………………………….. 3 ASSEMBLY INSTRUCTIONS……………………………………... SAFETY NOTICE…………………………………………………… 3.1 Before Driving 3.2 While Driving EMI …………………………………………………………………… 9 PARTS INTRODUCTION…………………………………………... Parts Description OPERATION………………………………………………………… 6.1 Operation Panel 6.2 How to Operate Your Scooter 6.3 How to Set to Freewheel Mode CHARGING AND BATTERY………………………………………. 7.1 Charging the Battery 7.2 Charger 7.3 Battery... -
Page 3: Preface
♦ This owner’s manual includes operation instructions for all aspects of this vehicle, including assembly, and for how to deal with possible accidents. ♦ This owner’s manual is written solely for Bladez B*Mobile, DKS500- Ambassador. ♦ The symbols used in this manual are explained below. -
Page 4: Assembly Instructions
A S S E M B LY I N S T RU C T I O N S 1. When you have removed your vehicle from the box it will be folded down with the basket and the seat with it. Remove the seat and basket and set them aside (Fig 1). - Page 5 A S S E M B LY I N S T RU C T I O N S Lastly attach the seat. Line up the pin on the bottom of the seat with the seat post and slide it into place. Lift the lever on the side of the seat to lock the seat into place.
-
Page 6: Safety Notice
S A F E T Y N OT I C E 3.1 Before Driving The user should get familiar with all functions and features to operate this vehicle before driving. Please always keep safety in mind. Initially an assistant should be present while the user becomes familiar with the vehicle. -
Page 7: While Driving
S A F E T Y N OT I C E Do not use this vehicle to carry or haul goods ♦ The maximum weight that can be carried is 350 lbs (158.8kg) including goods. Refer to section “10-SPECIFICATIONS” page 28 “WEIGHT CAPACITY” ♦... - Page 8 S A F E T Y N OT I C E ♦ When coming to an inclined road, you should adjust the speed dial to a middle setting and drive slowly. Maintain a safe speed and avoid any sudden starts or stops.
-
Page 9: Emi
Caution: It is very important that you read this information regarding the possible effects of electromagnetic interference on your electric Bladez B*Mobile vehicle. ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE SOURCES... - Page 10 E M I 3. Long-range transmitters and transceivers, such as commercial broadcast transmitter (radio and TV broadcast antenna towers) and amateur (HAM) radios. Note: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers are not likely to cause EMI problems to your powered vehicle.
-
Page 11: Parts Introduction

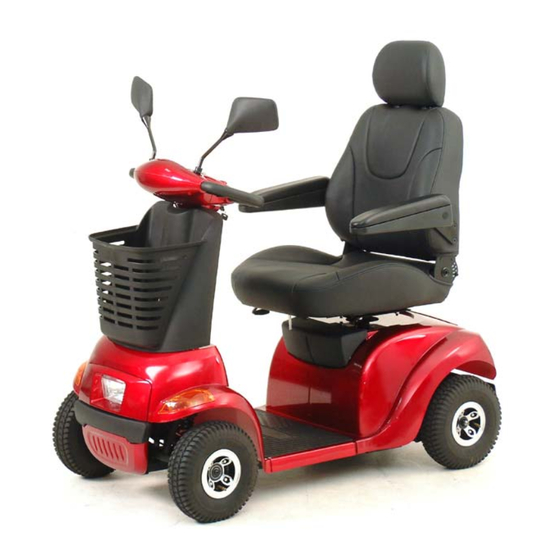

PA RT S I N T RO D U C T I O N PARTS DESCRIPTION, DK S500 1.Speed Dial 2. Rear Mirror 3. Control Panel 4.Tiller 5. Basket 6. Head Lamp 7. Signal Lamp 8. Front bumper 9. Head – Rest 10. -
Page 12: Operation
O P E R AT I O N 6.1 OPERATION PANEL 1. Speed Dial 2. Horn Button 3. Signal Light Switch 4. Key Hole/Head Light / Rear Light Switch 5. Speed Control Lever 6. Battery Condition Meter 7. Warning light switch 8. - Page 13 6 . O P E R AT I O N Signal Lamp Switch ♦ The front and rear lights will flash in the direction of the turn signal indicated by the user. ← left signal lamp → Right signal lamp ♦...
- Page 15 When you find the travel distance is about 50% of brand new batteries traveling distance, it is time for replacement batteries. Please go to your Bladez Health Products Corporation service center for replacement batteries. If you continue to use the old batteries less travel distance will be expected.
-
Page 16: How To Set To Freewheel Mode
6 . O P E R AT I O N 6.3 HOW TO SET FREE-WHEEL MODE ♦ Drive on mode: Push the lever down completely, the vehicle can now be driven by motor power. ♦ Free-wheel Mode: Lift the lever up completely, the vehicle can now be moved manually. - Page 17 6 . O P E R AT I O N Starting and Driving 1. Make sure the seat is properly installed. 2. Make sure the tiller has been properly secured. 3. Make sure the armrest has been returned to the lowest position. 4.
- Page 18 6 . O P E R AT I O N Stopping 1. Release the speed control lever completely. The vehicle will activate the electromagnetic brake and stop. 2. Turn the power switch to “OFF.” Then pull out the key. ATTENTION ♦...
-
Page 19: Charging And Battery
7 . C H A RG I N G A N D BAT T E RY 7.1 CHARGING THE BATTERY Be sure to follow all procedures below • Turn the power switch to “OFF”. • Open the charging socket cap in the rear lighting package (Fig •... -
Page 20: Battery
7 . C H A RG I N G A N D BAT T E RY WARNING 1. Keep away from flammable objects while charging. This may lead to fire or explosion of the batteries. 2. As the batteries may produce hydrogen, do not smoke while charging. Always charge your batteries in a well-ventilated space. - Page 21 6. Clean the battery with a clean cloth. If the terminal is covered by white powder, clean it by using warm water. SUGGESTION If necessary, contact your Bladez Health Products Corporation service center for cleansing and replacement of the batteries. SUGGESTION 1.
-
Page 22: Inspection And Maintenance
Check the following items before driving. If you find any thing abnormal, contact your Bladez Health Products Corporation service center for further inspection before using it. Item Inspection Content ♦... -
Page 23: Regular Checking Record
8 . I N S P E C T I O N A N D M A I N T E NA N C E 8.2 REGULAR CHECKING RECORD To make sure your vehicle remains in good condition, go to B Mobile service center regularly for maintenance and record it accordingly every six months after purchasing. -
Page 24: Fuse And Tire
8 . I N S P E C T I O N A N D M A I N T E NA N C E Item \ Period Wheel Tightness of bolts and nuts Wear or deformation around tires Tightness of bolts and nuts Shock Damage to shock absorbers Absorber... -
Page 25: Maintenance
Please store the vehicle in a location where is out of direct sunlight, rain, or dew. When stored for a long time, please charge the battery to the full power and then disconnect the battery terminal. For any details, inquire at your Bladez Health Products Corporation service center. -
Page 26: Trouble Shooting
9 . T RO U B L E S H O OT I N G ■ When you have trouble with your vehicle ♦ You can inspect the following before taking your vehicle to the Bladez Health Products Corporation service center. - Page 27 9 . T RO U B L E S H O OT I N G DC Status Fault Impact on Notes Indicator Description Controller Flash Code Battery needs Reduced drive is The battery voltage has dropped recharging available below 23.3 volts in neutral. Recharge batteries.
-
Page 28: Specifications
1 0 . S P E C I F I C AT I O N S DK S500 Model Name B*Mobile – Ambassador Packing Size 62.4"×26.6"×28.0" (1585mmx675mmx710mm) Overall Height (without seat) 37” (939.8 mm) Overall Length 47” (1193.8 mm) Overall Width 25”... -
Page 29: Warranty
11.2.1 Contents and Duration of Warranty Contents of Warranty 1. For one year from the date of purchase, Bladez Health Products Corp. will replace at our option free of charge any part or electronic component found to be defective due to workmanship and/or material upon the examination by a certified Bladez Health Products Corp. - Page 30 3. Tampering by changing or adding components to the vehicle which is not approved by Bladez Health Products Corp. 4. Damage caused by not using Bladez Health Products Corp. genuine parts or any parts not recommended by Bladez Health Products Corp.
- Page 31 11.2.5 Warranty rights are non-Transferable Bladez Health Products Corp. warranty is non-Transferable. The warranty will only be honored by the original purchaser only. NOTE: Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from the original date of purchase and to the extent permitted by law.
