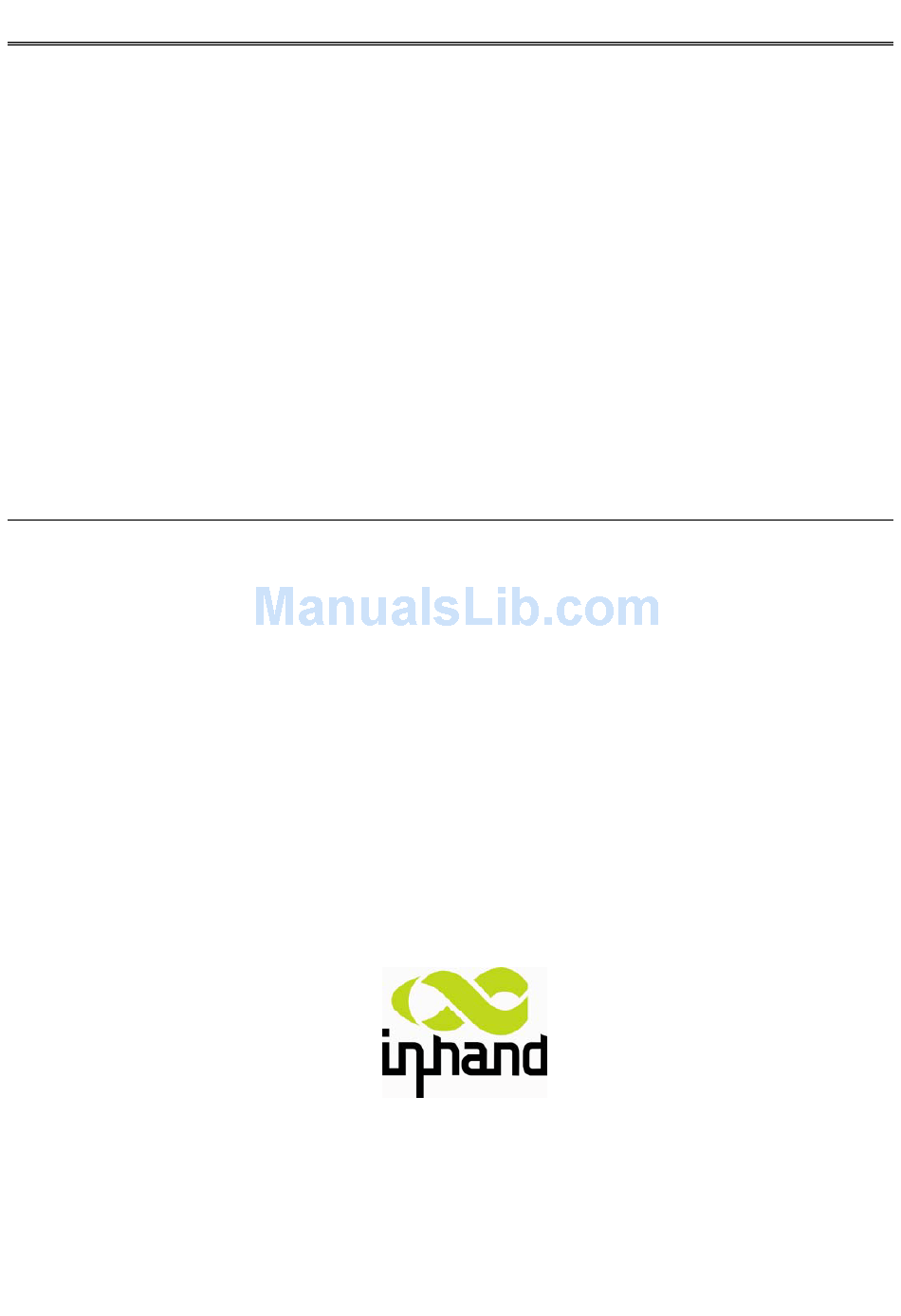

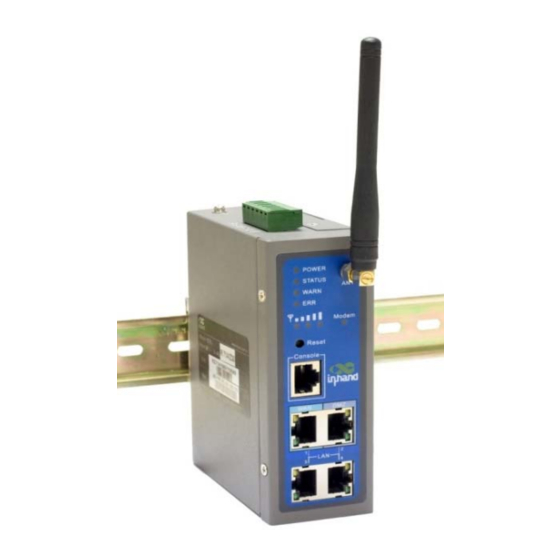

InRouter 700 Series User's Manual
www.inhandnetworks.com
InRouter 700 Series User's Manual
Forth Edition, March, 2011
(For Firmware Version: 1.3.4.v2101)
© 2010 InHand Networks, All rights reserved.
Republication without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InHand 700 Series

Summary of Contents for InHand 700 Series

  • Page 1 InRouter 700 Series User’s Manual www.inhandnetworks.com InRouter 700 Series User’s Manual Forth Edition, March, 2011 (For Firmware Version: 1.3.4.v2101) © 2010 InHand Networks, All rights reserved. Republication without permission is prohibited.
  • Page 2 Disclaimer Information in this document is subject to change without notice and does not represent an obligation on the part of InHand Networks. This user manual may include intentional technical or typographical errors. Changes are periodically made to the manual to correct such errors, and these changes are not informed in new editions.

  • Page 3: Release Notes

    InRouter 700 Series User’s Manual www.inhandnetworks.com Release Notes 2011. 3. 24: Add description for function: 1. WOL (Wakeup Over LAN) at “Networks” ”LAN”; 2. SMS control (reboot/show status) at “Service” ”SMS”; 3. “User+X.509” mode for OpenVPN client; Add Notice: 1. WAN/LAN settings: don’t set the WAN/LAN IP as 192.168.3.1 (the default IP of DMZ port);...

  • Page 4: Table Of Contents

    InRouter 700 Series User’s Manual www.inhandnetworks.com Contents Contents ...................................... 3  Introduction to InRouter 700 Series ............................0  1.1  Overview ................................1  1.2  Package Checklist ..............................3  1.3  Product Features ..............................4  1.3.1 Interfaces ................................4  1.3.2 Functions ................................5  1.3.3 Environmental Limits ............................6 ...

  • Page 5: Introduction To Inrouter 700 Series

    Introduction to InRouter 700 Series Overview ◆ Product Models ◆ Product Features & Specifications ◆ Package Checklist ◆...

  • Page 6: Overview

    1.1 Overview InRouter 700 series industrial grade routers provide users with stable and high speed connection between remote devices and customer’s center via 2.5G/3G networks. They allow wide voltage power supply (9-48V DC), large range operating temperature from -25°C to 70°C (-10 ~ 158F)/ humidity: 95% RH, and fully satisfy various EMC verifications, which ensure stability and reliability under harsh industrial conditions.

  • Page 7: Important Safety Information

    InRouter 700 Series User’s Manual www.inhandnetworks.com Important Safety Information This product is not intended for use in the following circumstances • Area(s) where radio transmission equipment (such as cell phone) are not permitted. • Hospitals, health care facilities and area(s) where cell phones are restricted by law.

  • Page 8: Contents

    Router 700 Se eries User’s M Manual ww.inhandne tworks.com 2 Packa age Chec cklist We put each InRouter 700 0 cellular rout ter in a box w with standard accessories. A Additionally, , there’re opti ional accesso ories can be ordere ed.

  • Page 9: Product Features

    InRouter 700 Series User’s Manual www.inhandnetworks.com 1.3 Product Features 1.3.1 Interfaces Cellular WAN: Band Options: HSUPA /HSDPA/WCDMA 850/900/1900/2100MHz GSM/GPRS/EDGE 850/900/1800/1900MHz Ethernet WAN: Ethernet: 10/100 Mbps, RJ45 connector, Auto MDI/MDIX Magnetic Isolation Protection: 1.5 KV built-in IR701/711/791: Number of Ports: 1 Ethernet: 10/100 Mbps, RJ45 connector, Auto MDI/MDIX Magnetic Isolation Protection: 1.5 KV built-in...

  • Page 10: Functions

    InRouter 700 Series User’s Manual www.inhandnetworks.com 1.3.2 Functions Supported VPDN/APN, fast access to virtual private dial-up network (VPDN) provided by mobile operator, ensure high-security data transmission. Support PPPoE (Point to Point Protocol over Ethernet) Protocol. Support CHAP/PAP/MS-CHAP/MS-CHAP V2 authorization Support Connection Detection, auto-recovery, auto-link, ensure reliable communication.

  • Page 11: Environmental Limits

    InRouter 700 Series User’s Manual www.inhandnetworks.com 1.3.3 Environmental Limits Operating Temperature: -25 to 70°C (-10 to 158°F) Operating Humidity: 5 to 95% RH Storage Temperature: -40 to 85°C (-40 to 167°F) 1.3.4 Power Requirements Power Inputs: 1 terminal block, including power jack and serial.

  • Page 12: Advanced Industrial Features

    RF conducted interference: EN61000-4-6, Level 3 Damped oscillation Immunity: EN61000-4-12, Level 3 Power-frequency electromagnetic fields Immunity: EN61000-4-8, Level 5 Anti-shock: IEC60068-2-27 Drop: IEC60068-2-32 Vibration: IEC60068-2-6 1.3.7 Device Management Software Device Manager: Centralized management solution for InHand Networks Devices 1.3.8 Warranty Warranty Period: 3 years...

  • Page 13: Product Models

    InRouter 700 Series User’s Manual www.inhandnetworks.com 1.4 Product Models The current models of InRouter 700 Series include: InRouter 701/711/791GS55, InRouter 701/711/791WH01, InRouter 704/714/794WH01. The models are classified according to main difference including cellular network, VPN support and interface for device.

  • Page 14: Quick Installation Guide

    Quick Installation Guide Typical Application ◆ Panel Layout ◆ Quick Connect to Internet ◆ Quick IPSec VPN Configuration ◆ Reset to Factory Defaults ◆...

  • Page 15: Typical Application

    2.1 Typical Application InRouter 700 series can be used to connect your device (with RS232/485/Ethernet Interface) to internet via GPRS/HSUPA cellular. Meanwhile, to ensure the security and access, InRouter 700 series support VPN, enabling remote access and secure data transmission through internet.
  • Page 16 InRouter 700 Series User’s Manual www.inhandnetworks.com IR704/714/794: Interface Description Power Interface Access 9-48 V DC Power Supply Serial Access to the serial line, realizing One 10/100Base-TX RJ45 Port (IR701/711/791GS55, IR701/711/791WH01, IR701/711/791UE) Ethernet Ports Four 10/100Base-TX RJ45 Ports, (IR704/714/794UE, IR704/714/794WH01) ANTENNA 2.5G/3G antenna...

  • Page 17: Quick Connection To Internet

    Link the power supply in the product package with InRouter, watch where the InRouter Power LED on the panel is light up. If not, please connect with InHand for technical supports. You can configure IR700 after the Power LED lights up.

  • Page 18: First Connect Inrouter With Your Pc

    InRouter 700 Series User’s Manual www.inhandnetworks.com 2.3.5 First Connect InRouter with Your PC IR700 Router can auto-distribute IP address for PC. Please set the PC to automatically obtain IP address via DHCP. (Based on the Windows operation system): 1) Open “Control Panel”, double click “Network Connections” icon, and enter “Network Connections” Screen.
  • Page 19 InRouter 700 Series User’s Manual www.inhandnetworks.com Click “OK”, InRouter will allocate an IP address: 192.168.2.X, and a gateway: 192.168.2.1(the default address of IR700). After configure TCP/IP protocols, you can use ping command to check whether the link between PC and Router is built correctly.

  • Page 20: Start To Configure Your Inrouter 700(Optional)

    InRouter 700 Series User’s Manual www.inhandnetworks.com 2.3.6 Start to configure your InRouter 700(Optional) After you have finished the former steps, you can configure the Router: 1) Open IE browser, input the default IP address of the Router: http://192.168.2.1, you can see the login web below: Input “username”...

  • Page 21: Connect Inrouter With Internet

    InRouter 700 Series User’s Manual www.inhandnetworks.com 2.3.7 Connect InRouter with Internet Following the configuration steps below to enable IR700 to connect with the internet. Click “Network”=>“Dialup”, enter dialup configuration web: Please check the APN, Dialup Number, Username and Password: Dialup Number, Username and Password are provided by local mobile operator. You can contact them for more details.

  • Page 22: Quick Ipsec Vpn Configuration

    If you need to build a VPN tunnel to realize access to your PLC far away through internet or you need ensure the security by using VPN. Here’s a quick configuration guide of IPSec for InRouter 700 Series. Connect PC with Router to enter router configuration web, select “VPN” => “IPSec setting”: Enable NAT-Traversal (NATT): select enable.
  • Page 23 InRouter 700 Series User’s Manual www.inhandnetworks.com Basic Parameters: set basic parameters of IPSec tunnel. Tunnel Name: name IPSec tunnel, the default is IPSec_tunnel_1. Destination Address: set to VPN server IP/domain, e.g.: the domain provided by GJJ is gjj-ovdp.3322.org. Startup Modes: select Auto Activated.

  • Page 24: Reset To Factory Defaults

    InRouter 700 Series User’s Manual www.inhandnetworks.com You can click “Show Detail Status” to observe the specific connection details, or click “Add” to add a new tunnel. Now you succeed to build a high-security IPSec tunnel, here’s an example: We set an IPSec Tunnel from subnet: 192.168.220.0/24 to subnet: 192.168.123.0/24, when it succeeds, the web will show: And the PC in IPSec client subnet can get access to the server’s subnet.

  • Page 25: Web Method

    InRouter 700 Series User’s Manual www.inhandnetworks.com 3) After a few seconds, the ERROR LED then turns off, now push RESET button again: 4) Then you will see ERROR and STATUS blinking, which means reset to factory defaults successfully! Factory default settings: IP: 192.168.2.1...

  • Page 26: Advanced Configuration

    InRouter 700 Series User’s Manual www.inhandnetworks.com Advanced Configuration Configuration on Web ◆...

  • Page 27: Configuration On Web

    InRouter 700 Series User’s Manual www.inhandnetworks.com 3.1 Configuration on Web InRouter must be correctly configured before use. This Chapter will show you how to configure via Web. 3.1.1 Preparation Firstly, connect your devices with IR700 by cable or HUB (switch), then set the IP of PC and IR700 in the same subnet, for example: Set PC IP to 192.168.2.50, net mask: 255.255.255.0, gateway (default IP of IR700: 192.168.2.1 ):...

  • Page 28: System

    InRouter 700 Series User’s Manual www.inhandnetworks.com 3.1.2 System System settings include the 9 settings: Basic Setup, Time, Serial Port, Admin Access, System Log, Config Management, Update, Reboot and Logout. (1) Basic Setup Parameters Name Description Default Example Language Choose language of configuration web...
  • Page 29 InRouter 700 Series User’s Manual www.inhandnetworks.com (2) Time Name Description Default Router Time Display router time 1970-1-1 8:00:00 PC Time Display PC time (or the time of device linked with router) Time Zone Set time zone Custom Custom TZ string...
  • Page 30 InRouter 700 Series User’s Manual www.inhandnetworks.com (4) Admin Access Name Description Default Username/Password Username Username for configuration web login Old Password To change the password, you need to input the old one 123456 New Password Input new password Confirm New Password...
  • Page 31 InRouter 700 Series User’s Manual www.inhandnetworks.com (5) System Log Name Description Default Log to Remote System Enable remote log server Disable IP address/Port (UDP) Set the IP and Port of remote log server Port: 514 (6) Config Management Name Description...
  • Page 32 InRouter 700 Series User’s Manual www.inhandnetworks.com Click “update”, and then click “sure” to begin update as it shows below. Upgrade firmware succeed, and click “reboot” to restart IR700. (8) Reboot If you need to reboot system, please click ”System”=>”Reboot”, Then click ”OK” to restart system.

  • Page 33: Network

    InRouter 700 Series User’s Manual www.inhandnetworks.com 3.1.3 Network Network settings include configurations of Dialup, LAN, DNS, DDNS, Static Route, and etc. (1) Dialup Name Description Default Enable Enable PPP dialup Enable Time Schedule Set time for online and offline SHARED Enabled—device linked with Router Can access to internet.
  • Page 34 InRouter 700 Series User’s Manual www.inhandnetworks.com Static IP Enable Static IP if your SIM card can get static IP address Disable Connection Mode Optional Always Online, Always Online Redial Interval When Dial fails, InRouter will redial after the interval 30 seconds...
  • Page 35 InRouter 700 Series User’s Manual www.inhandnetworks.com (2) WAN (for InRouter704/714/794 only) This page is to set the type of WAN port: Name Description Default Type Static IP; Disabled Dynamic Address(DHCP); ADSL Dialup(PPPoE); Disabled Attention: There can only be one WAN type at one time, enabling one type WAN will disabled another.
  • Page 36 InRouter 700 Series User’s Manual www.inhandnetworks.com WAN—Dynamic Address (DHCP) Name Description Default Type Dynamic Address (DHCP) SHARED Enabled—the local device linked with Router can get access to Enable internet. Disable—the local device can’t get access to internet via Router. MAC Address...
  • Page 37 InRouter 700 Series User’s Manual www.inhandnetworks.com Username Set username for dialing up Blank Password Set password for dialing up Blank Static IP Enable Static IP Disabled IP address Static IP Address Blank Peer IP Set Peer IP Blank Connection Mode...
  • Page 38 Name Description Default MAC Address The MAC address in LAN 00:10:A1:86:95:02 (Provided by InHand) , for manufactures IP Address Set IP Address in LAN 192.168.2.1 (If Changed, you need to input the new address for entering the configuration web) Net Mask Set Net Mask of LAN 255.255.255.0...
  • Page 39 InRouter 700 Series User’s Manual www.inhandnetworks.com Name Description Default MAC Address Set MAC address of DMZ port (Provided by Manufacture: InHand) IP Address Set IP Address of DMZ port 192.168.3.1 Net Mask Set Net Mask of DMZ port 255.255.255.0 Optional between Default & Manual...
  • Page 40 InRouter 700 Series User’s Manual www.inhandnetworks.com (8) DDNS (Dynamic DNS) Name Description Default Current Address Show the current IP address Blank Service Type Select DDNS Provider Disabled Name Description Default Service Type DynDNS - Dynamic http://www.dyndns.com/ Username Registered username for DDNS...

  • Page 41: Service

    InRouter 700 Series User’s Manual www.inhandnetworks.com 3.1.4 Service Service settings include DHCP Service, DNS Forwarding, VRRP and other related parameters. (1) DHCP Service Name Description Default Enable DHCP Click to enable DHCP Enable IP Pool Starting Address Set the starting IP address of DHCP pool 192.168.2.2...
  • Page 42 InRouter 700 Series User’s Manual www.inhandnetworks.com (3) VRRP Name Description Default Enable Select to enable VRRP Disable Group ID Select group id of routers (range 1-255) Priority Select priority for router (range 1—254) 10 (bigger number stands for higher priority)
  • Page 43 InRouter 700 Series User’s Manual www.inhandnetworks.com Name Description Default Mode SMS+IP Mode Vendor Set Vendor Name Default Device ID Set Device ID Server Set Device Manager Server IP Port Set Port For DM 9000 Login Retries Set login retries Heartbeat Interval...
  • Page 44 InRouter 700 Series User’s Manual www.inhandnetworks.com (6) SMS Name Description Default Enable Click to enable SMS control Disable Status Query Set Status Query SMS, and you can see status of router by send SMS (e.g.: show status). Reboot Let the router reboot...

  • Page 45: Firewall

    InRouter 700 Series User’s Manual www.inhandnetworks.com 3.1.5 Firewall This page is to set parameters concerned with firewall. (1) Basic Configuration Name Description Default Default Filter Policy Optional between Accept /Refused Accept Block Anonymous WAN Request (ping) Click to enable filer ping request...
  • Page 46 InRouter 700 Series User’s Manual www.inhandnetworks.com Source To fill with source IP 0.0.0.0/0 Service Port Fill the port of service 8080 Internal Address Set the internal IP for mapping Blank Internal Port Set the Port mapping to internal 8080 Click to enable log about port mapping.

  • Page 47: Qos

    InRouter 700 Series User’s Manual www.inhandnetworks.com (6) MAC-IP Bundling When firewall denies all access to the external network, only PC with MAC-IP Bundling can access to external network Name Description Default MAC Address Set Bundling Mac address Blank IP Address Set Bundling IP address 192.168.2.2...
  • Page 48 InRouter 700 Series User’s Manual www.inhandnetworks.com 2．Select to enable Compression Mode or Debug Name Description Default Enable NAT Transversal Click to enable NATT Enable (NATT) Keep alive time interval of NATT Set live time for NATT 60 sec Enable Compression...
  • Page 49 InRouter 700 Series User’s Manual www.inhandnetworks.com Name Description Default Show Advanced Options Click to enable advanced options Disable Basic Parameters Tunnel Name To name the tunnel IPSec_tunnel_1 Destination Address Set the destination address of IPSec VPN Server Blank Startup Mode...
  • Page 50 InRouter 700 Series User’s Manual www.inhandnetworks.com USERFQDN, or IP Address Remote ID (Only for FQDN and USERFQDN) Set the ID according to ID type Blank Authentication Type Optional: Shared Key or Certificate Shared Key Key (While choosing Shared Key Authentication...
  • Page 51 InRouter 700 Series User’s Manual www.inhandnetworks.com (4) L2TP Clients (For IR711/791/714/794 only) Name Description Default Enable Click Enable Enable Tunnel Name Set Tunnel Name L2TP_TUNNEL_1 L2TP Server SetL2TP Server Address Blank Username Set Server Username Blank Password Set Server Password...
  • Page 52 InRouter 700 Series User’s Manual www.inhandnetworks.com (5) PPTP Clients (For IR711/791/714/794 only) Name Description Default Enable Click Enable Enable Tunnel Name Set Tunnel Name PPTP_TUNNEL_1 PPTP Server Set PPTP Server Address Blank Username Set Server Username Blank Password Set Server’s Password...
  • Page 53 InRouter 700 Series User’s Manual www.inhandnetworks.com (6) Open VPN Tunnels (for IR791/794 only) In the configuration WEB of 700, select “VPN”=> “Open VPN Tunnels” as below: Click “Add” to add a new Open VPN tunnel: Name Description Tunnel name Can’t be set...
  • Page 54 InRouter 700 Series User’s Manual www.inhandnetworks.com (3) User/Password ----- For multi users to access CA needed: Client: root CA (ca.crt) Server: root CA (ca.crt), public key (pub.crt), private key (pri.key) (4) X.509 Cert (multi-client) ----- CA mode for multi users to access CA needed: Client: root CA (ca.crt), public key (pub.crt), private key (pri.key)

  • Page 55: Tools

    InRouter 700 Series User’s Manual www.inhandnetworks.com (9) Certificate Management (for IR791/794 only) Name Description Default Enable SCEP Click Enable (Simple Certificate Enrollment Protocol) Certificate Protected Key Set Certificate Protected Key Blank Certificate Protected Key Confirm Confirm Certificate Protected Key Blank...

  • Page 56: Status

    InRouter 700 Series User’s Manual www.inhandnetworks.com (2) Trace Route Name Description Default Host Destination for Trace Route Blank Max Hops Set Max Hops Time Out Set Time Out 3 sec Protocol Optional: ICMP/UDP Expert Options Advanced parameters Blank (3) Link Speed Test Test link speed via unload or download 3.1.9 Status...
  • Page 57 InRouter 700 Series User’s Manual www.inhandnetworks.com (2) Modem Status This page shows the status of Modem, including the signal level. (3) Network Connections This page shows the network connections via WAN or LAN (4) Route Table This page shows the route table of IR700.
  • Page 58 This page shows the log of system, including download log file. For some situation when there’re some problems that can’t be diagnosed at the moment, you’ll be asked to provide the diagnose log to InHand engineers, you can click “Download System Diagnosing Data” then send the diagnose log to us.

  • Page 59: Support

    3.2 Support In case you have problems with the installation and use, please address them to us by e-mail: support@inhandnetworks.com. Copyright © 2010 InHand Networks, All rights reserved. Tel: 86-10-64391099-8022 Fax: 86-10-64399872 Address: Wangjing Science Park, Road Lizezhonger, Chaoyang District, Beijing, P. R. C, 100102 Website: http://www.inhandnetworks.com...
