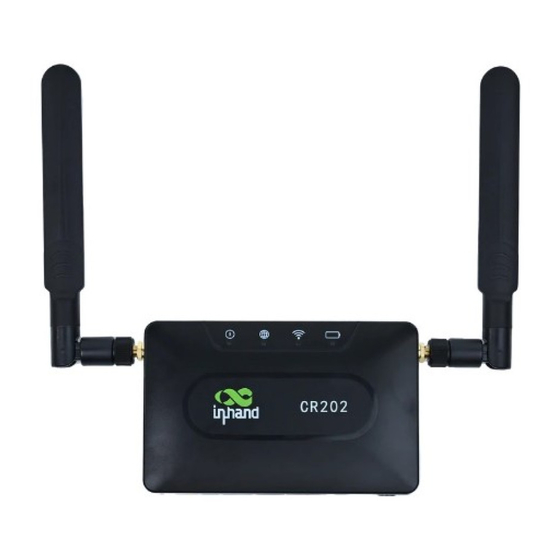

- Page 1 InHand Networks CR202 Portable 4G Router Quick Installation Manual V1.0—2023.2...
-
Page 2: Table Of Contents
5.1 Restore to Factory Setting ......................9 5.1.1 Web Setting ..........................9 5.1.2 Hardware Restore ....................... 10 5.2 Import/Export Configuration ..................... 10 5.3 Log and Diagnose Record ......................10 5.4 Connect to InHand platform ...................... 10 6 Description of Indicator ........................... 12... -
Page 3: Overview
Overview This manual is a guide for the installation and operation of CR202 routers from InHand Networks. Please confirm the product model and packaging accessories (cable, antenna), and purchase SIM cards from local network operators All statements, information and recommendations in this manual do not constitute any expressed or implied warranty. -
Page 4: Panel Introduction
2 Panel Introduction 3 Installation Precautions for installation: ● Power supply: Internal battery or Type-C interface (5V/2A), please pay attention to the power voltage level. ● Environment: Working temperature: -10℃～50℃, storage temperature: -20℃～ 60℃, equipment surface may be high temperature, please consider the surrounding environment before installation. -
Page 5: Antenna Installation
3.2 Antenna Installation Rotate the metal interface clockwise until the movable part cannot be rotated, do not hold the black glue stick to twist the antenna. 4 Access to Internet CR202 supports three ways of accessing to Internet: wired, cellular and Wi-Fi. When CR202 does not access to Internet via cellular, please disable Cellular in “Network>>Cellular”, otherwise the device will restart after trying dial up and fail for several times. -
Page 6: Wired To Internet
4.1 Wired to Internet Step 1: Connect power and Ethernet cable to CR202, connect WAN/LAN1 port to public network, and LAN2 to PC. Step 2: Configure PC to be in the same network segment as the IP address of the router. - Page 7 Step 4: Create a WAN port in “Network >> WAN” in the left menu. Configure an IP address for WAN port and let the router connect to Internet. There are there methods to obtain IP address: Dynamic DHCP (recommend). Static IP (Click Apply & Save after configure manually) and ADLS Dialup (Click Apply &...
-
Page 8: Sim Card Dialup
Obtain IP address by ADSL Dialup Step 5: Check the connectivity in “Tools >> PING”. 4.2 SIM Card Dialup Step 1: Insert the SIM card when device is power off. Connect 4G antenna to the router, and connect PC to router. Then power on. Note: When insert or plug out SIM card, please power off the device to prevent data loss or damage to the router. -
Page 9: Wi-Fi To Internet
Step 2: Open a browser and access to router’s WEB management page. (refer to 4.1) Step 3: Click “Network >> Cellular”, set profile. The device enables the cellular by default, it will connect to Internet within a few minutes. If the device cannot connect to Internet, please disable and restart dialup. - Page 10 cellular. AP mode supports setting SSID name and encryption method, and terminal devices will need to input password when connecting. STA mode: CR202 connects to other AP Wi-Fi device to access the Internet. 1. Select WLAN Type to STA in “Network>>Switch WLAN Mode” and save. Then reboot the router.
-
Page 11: Quick-Use Guidance
4. Configure WAN mode in “Network>>WAN(STA)”, set WAN parameters for Wi- 5 Quick-Use Guidance 5.1 Restore to Factory Setting 5.1.1 Web Setting Login to the WEB management page, click on the "System>> Config Management" menu in the navigation tree. Click "Restore default configuration" button, router will restore to default settings after reboot. -
Page 12: Hardware Restore
Download System Diagnosing Data to download diagnose record from router. 5.4 Connect to InHand platform Make sure that router has already connect to Internet. Click "Service>>Device Manager" to set router to connect to InHand DM platform. https://iot.inhand.com.cn is the server for China, and https://iot.inhandnetworks.com... - Page 13 If you don’t have DM account, please click "Sign up/Sign in" after select server, then you will be directed to InHand Device Manager website, please follow the instruction to register an account. Login your account in Device Manager, and add your device in “Gateways”, named your device and fill in the serial number from device, then you can manage your router in DM.
-
Page 14: Description Of Indicator
6 Description of Indicator CR202 LED Status Off --- Power off Blink in green --- Device starting System Steady in green --- Device working Blink in yellow --- Upgrading Off --- Cellular disable Blink in green --- Dialing up Blink in yellow --- Dialing abnormal Blink in...
Need help?
Do you have a question about the CR200 Series and is the answer not in the manual?
Questions and answers
when i connect to the internet after five minutes i get a message for no internet
The InHand CR200 Series may lose internet connection after five minutes due to issues with the SIM card or dial-up configuration. Possible reasons include:
- The SIM card is not enabled with data service or has been suspended due to overdue charges.
- Incorrect dial-up parameters such as APN, dial-up number, username, or password.
- The device may need a restart or reconfiguration if using a private network SIM card.
- Checking the dial-up status in "Status" can confirm if the router is connected with an IP address.
If the issue persists, disabling and restarting the dial-up function may help.
