Page 2: Table Of Contents
ABLE OF CONTENTS ABLE OF CONTENTS PART 1 PRODUCT (GENERAL)............1. 1.1--PRODUCT INTRODUCTION............1. 1.2--PRODUCT FEATURES..............1. 1.3--TECHNICAL SPECIFICATIONS.............2. 1.4--PHOTOMETRIC DATA..............3. 1.5--SAFETY WARNING..............4. PART 2 INSTALLATION...............5. 2.1--MOUNTING...................5. 2.2--POWER CONNECTION..............5. 2.3--SETTING UP WITH A DMX512 CONTROLLER.........6. 2.3-1--DMX512 ADDRESSING WITHOUT ID ADDRESSING........6. 2.3-2--DMX512 ADDRESSING WITH ID ADDRESS..........6. PART 3 DISPLAY PANEL OPERATION.........8. -
Page 3: Part 1 Product (General)

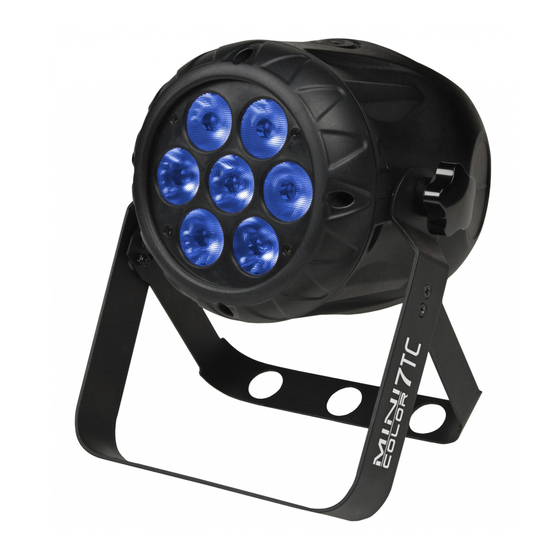

PRODUCT (GENERAL) PRODUCT INTRODUCTION This product is designed for indoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any DMX512 controller. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS LED MODULE 1 PRODUCT(GENERAL) 2009.12.9... -
Page 5: Photometric Data
PHOTOMETRIC DATA PHOTOMETRIC DATA 1 PRODUCT(GENERAL) 2009.12.9... -
Page 6: Safety Warning
SAFETY WARNING IMPORTANT ALWAYS READ THE USER MANUAL BEFORE OPERATION. PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA. This product must be installed by a qualified professional. Always operate the equipment as described in the user manual. -
Page 7: Part 2 Installation
INSTALLATION MOUNTING HANGING The LED PAR can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit a safety cable should also be used. UPRIGHT The LED PAR can be mounted in an upright or sitting position using the supporting brackets. -
Page 8: Setting Up With A Dmx512 Controller
SETTING UP WITH A DMX512 CONTROLLER 2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING (STAGE 1 MODE) Connect the DMX512 controller to the units in series. Each unit has 9 DMX channels so the DMX Addresses should increase by increments of 9 (e.g. 1,10,19,28...) The ID address has not been set so therefore when using the controller Ch9 must be inactive ( CH9=0 ). - Page 9 Example: The figure above shows a simple DMX layout which has used three units at each DMX address. The three units have different ID addresses which allows the user to collectively control the whole group of units at that DMX address by setting CH9 to 0, or to control each unit independently by first selecting the DMX address and then by using Ch9 to locate the target ID address.
-
Page 10: Part 3 Display Panel Operation
DISPLAY PANEL OPERATION BASIC MENU scroll through the main menu or exit from the current menu or function ENTER Enter the currently selected menu or confirm the current function value scroll 'UP' through the menu list or increase the value of the current function DOWN scroll 'DOWN' through the menu list or decrease the value of the current function 2 INSTALLATION... -
Page 11: Menu
MENU 3 DISPLAY PANEL OPERATION 2009.12.9... -
Page 12: Static
STATIC STATIC Select GREN BLUE STRB to set the value AUTO AUTO Select the target AUTO program and press ENTER Programs AUTO 1 to AUTO 10 are fully pre-programmed and will not be altered Programs Custom 1 to Custom 10 are fully pre-programmed and can be edited ADDRESS ADDRESS... -
Page 13: Person
PERSON PERSON Enter PERSON and select STAGE1 ARC1 ARC1+D DMX mode Enter ID and set the ID address 001~066 3.9 FAN Enter Fan and select the working mode of fan: High , Normal , Auto or Low 3.10 EDIT EDIT Enter EDIT to edit the custom programs... -
Page 14: Settings
3.11 SETTINGS Choose ON / OFF to open or close ID Reset to Factory? This function will reset all setting to the original factory setting Up load custom? Select Up load custom? to upload the custom programs from the current MASTER unit to the SLAVE units COLOR is f ora ctivate/unactivatet hec olorc alibrationf unctions. -
Page 15: Part 4 Using A Dmx512 Controller
USING A DMX512 CONTROLLER BASIC ADDRESSING Connect all of the units in series using standard DMX512 signal cable or the IP65 rated cable provided. Set the DMX512 address in the DMX menu. It is possible to have the same DMX address or independent addresses for each fixture. CHANNEL ASSIGNMENT Note: This product have three DMX512 channel configuration: STAGE 1... - Page 16 4 USING A DMX512 CONTROLLER 2009.12.9...
- Page 17 4 USING A DMX512 CONTROLLER 2009.12.9...
-
Page 18: Basic Instructions For Dmx512 Operation (Stage 1)
BASIC INSTRUCTIONS FOR DMX512 OPERATION (STAGE 1) MASTER DIMMER CH1 controls the intensity of the currently projected color When the slider is at the highest position (255) the intensity of the output is the maximum RED, GREEN & BLUE COLOR SELECTION CH2, CH3 &... -
Page 19: Part 5 Appendix
APPENDIX TROUBLE SHOOTING LED MODULE 4 USING A DMX512 CONTROLLER 2009.12.9... -
Page 20: Maintenance
MAINTENANCE ITEM Plastic cover dustproof glass Lens wheel Led board Cooling Fans Plastic side cover Side board DMX board Display support Holder LCD plastic cover Fuse socket Main board Driver board Power board Switch 5 APPENDIX 2009.12.9...
