FEATURES

High performance 450Mbps wireless n access point

1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port

1 x WPS button

1 x Reset button

On/off power switch (EU Version)

Diagnostic LEDs

Wi-Fi compliant with IEEE 802.11n standard

Backwards compatible with IEEE 802.11g/b devices

Features Wireless Distribution System (WDS) and Repeater modes for wireless network expansion

Supports 64/128-bit WEP, WPA/WPA2-PSK, and WPA/WPA2-RADIUS wireless security

Mac filter feature for added security

Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization

Multiple Input Multiple Output (MIMO) antenna technology

Define up to 3 additional SSIDs

One touch wireless connection using the WPS button

Maximum reliability, throughput, and connectivity with automatic data rate switching

Easy user setup wizard and intuitive Web browser configuration

Coverage of up to 100 meters indoor (328ft.) and 300 meters outdoor (948ft.) *

3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary
depending on interference, network traffic, building materials and other conditions.

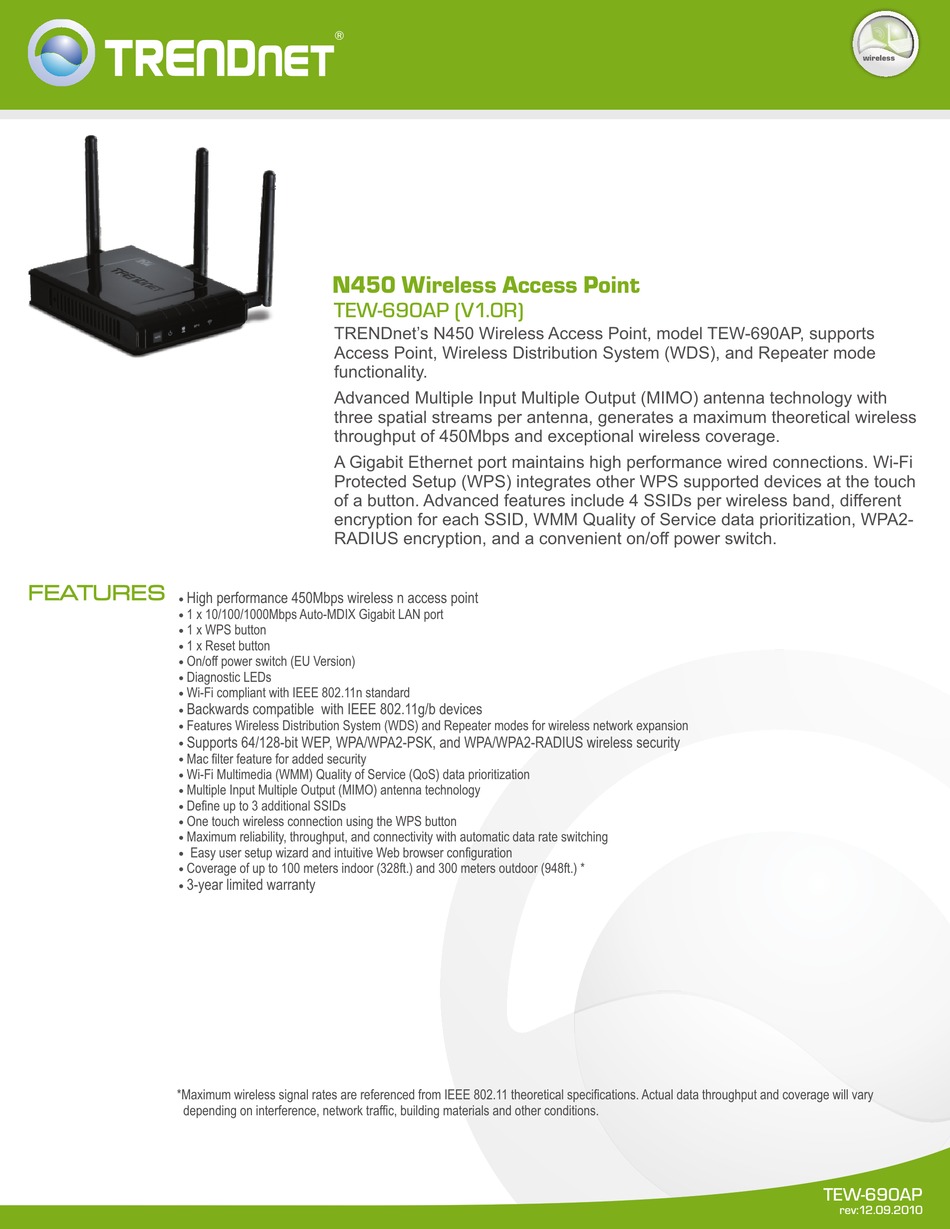

N450 Wireless Access Point
TEW-690AP (V1.0R)
TRENDnet's N450 Wireless Access Point, model TEW-690AP, supports
Access Point, Wireless Distribution System (WDS), and Repeater mode
functionality.
Advanced Multiple Input Multiple Output (MIMO) antenna technology with
three spatial streams per antenna, generates a maximum theoretical wireless
throughput of 450Mbps and exceptional wireless coverage.
A Gigabit Ethernet port maintains high performance wired connections. Wi-Fi
Protected Setup (WPS) integrates other WPS supported devices at the touch
of a button. Advanced features include 4 SSIDs per wireless band, different
encryption for each SSID, WMM Quality of Service data prioritization, WPA2-
RADIUS encryption, and a convenient on/off power switch.
wireless
TEW-690AP
rev:12.09.2010
