TRENDnet TEW-690AP Quick Installation Manual
450mbps wireless n access point
Hide thumbs
Also See for TEW-690AP:
- User manual (45 pages) ,
- Quick installation manual (10 pages) ,
- Specifications (2 pages)
Related Manuals for TRENDnet TEW-690AP
Summary of Contents for TRENDnet TEW-690AP

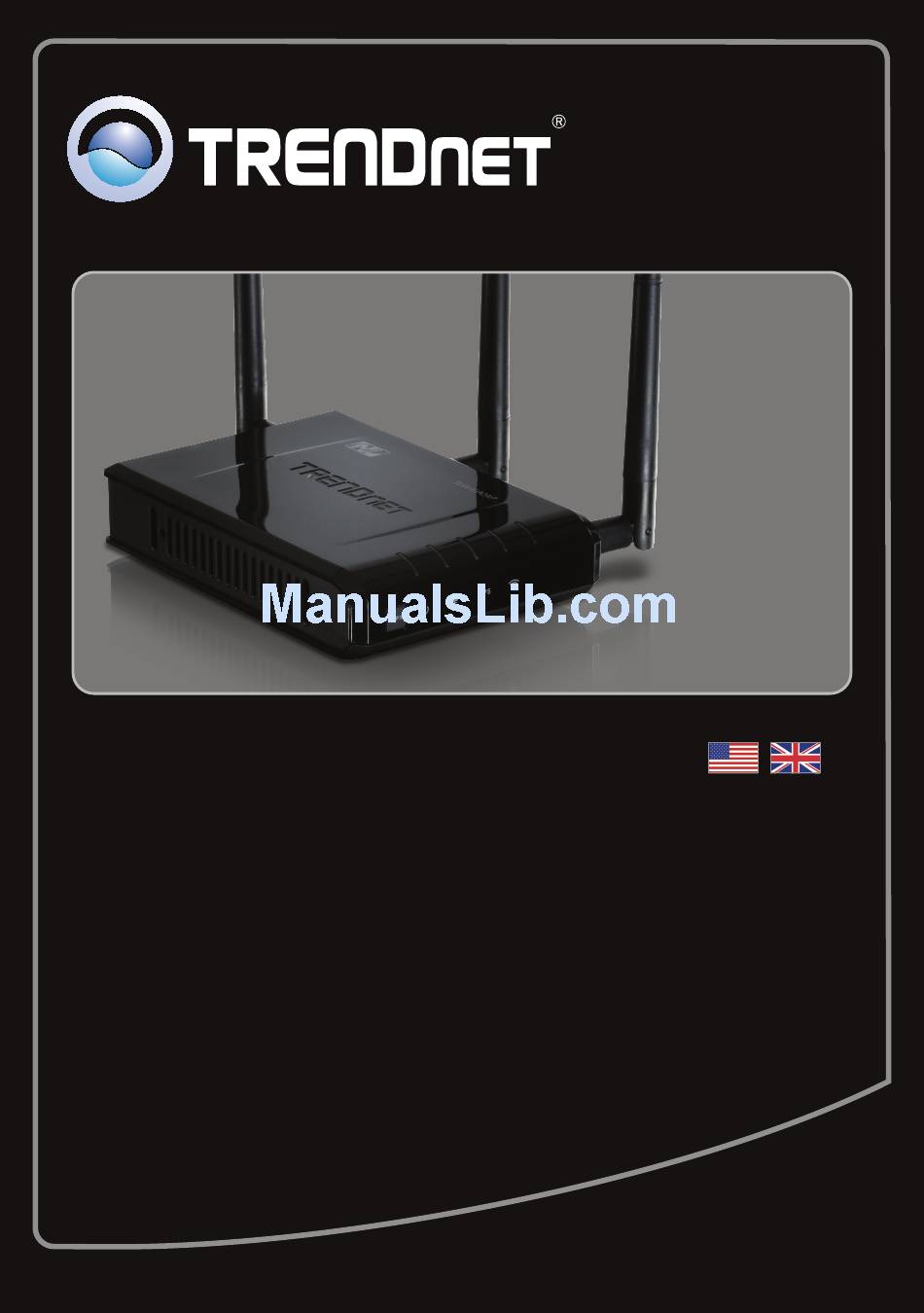

- Page 1 Quick Installation Guide TEW-690AP 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation Troubleshooting Wireless Tips Version 11.09.2010... -
Page 3: English
1. Before You Start Package Contents TEW-690AP Ÿ Multi-Language Quick Installation Guide Ÿ CD-ROM (Utility and Ÿ User's Guide Ÿ Power Adapter (12V DC, 0.5A) Ÿ Cat. 5 Ethernet Cable (0.6m/2ft.) System Requirements Ÿ Web Browser: Internet Explorer (6 or higher). Ÿ... -
Page 4: Hardware Installation
2. Hardware Installation Note: 1. Locate an optimum location for the Access Point. The best place for the Access Point is usually at the center of your wireless network. 2. Disable any anti-virus and firewall programs before starting hardware installation. For Windows Users 1. - Page 5 6. Connect a RJ-45 cable from a LAN port on your Router to the Ethernet port on your computer. 7. Connect the Power Adapter to the Access Point and then to a power outlet. Verify that the power switch is set to the on position (EU version only).
- Page 6 11. Select Manual Setup and then click Next. 12. Enter a SSID (Wireless Network Name) and then click Next. By default, the SSID is TRENDnet690. 13. Select the desired Wireless Mode and then click Next. 14. Select a Security Mode and then click Next. (example shows WPA-PSK).
- Page 7 Note: 1. To protect your network from any unauthorized access it is recommended to enable wireless encryption. 2. The fexample below is for WPA2-PSK security. If you select WPA-PSK or WPA2-PSK, make sure your wireless adapters support WPA or WPA2. If your wireless adapters do not support WPA or WPA2, then select WEP.
- Page 8 Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet...
-
Page 9: Troubleshooting
With a pin or paperclip, press and hold the reset button for 10 second and release it. The default user name is admin. By default, there is no password. If you still encounter problems or have any questions regarding the TEW-690AP, please contact TRENDnet's Technical Support Department. -
Page 10: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID. Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. - Page 11 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall. Dense materials like metal, solid wood, glass or even furniture may block or degrade the signal.
