Plug the other end of the USB cable into a powered USB port on your computer. For more
information on powered USB ports, see your system manual.
Note:
To purchase a Matrox power adapter for your product, see the Matrox online store
(shopmatrox.com).
Attach the Matrox input cable
3
If your graphics hardware has a DVI
connector, attach one end of the Matrox
DVI to DVI cable provided with your
Matrox product to the graphics connector
on your computer. Attach the other end of
the cable to the DVI input connector (
on your Matrox product.
If your graphics hardware has an HD-15
connector, attach one end of the Matrox
HD-15 to HD-15 cable provided with your
Matrox product to the graphics connector
on your computer. Attach the other end of
the cable to the the HD-15 input connector
( ) on your Matrox product.
Connect the first monitor
4
If your monitor has a DVI connector, use
your monitor cable to connect your first
monitor directly to the first connector
(
If your monitor has an HD-15 connector,
use a DVI to HD-15 adapter (sold
separately) to connect your monitor to the
connector.
12 Matrox TripleHead2Go – User Guide
If your computer doesn't have a powered USB port, you'll need a separate adapter.
) on your Matrox product.
)

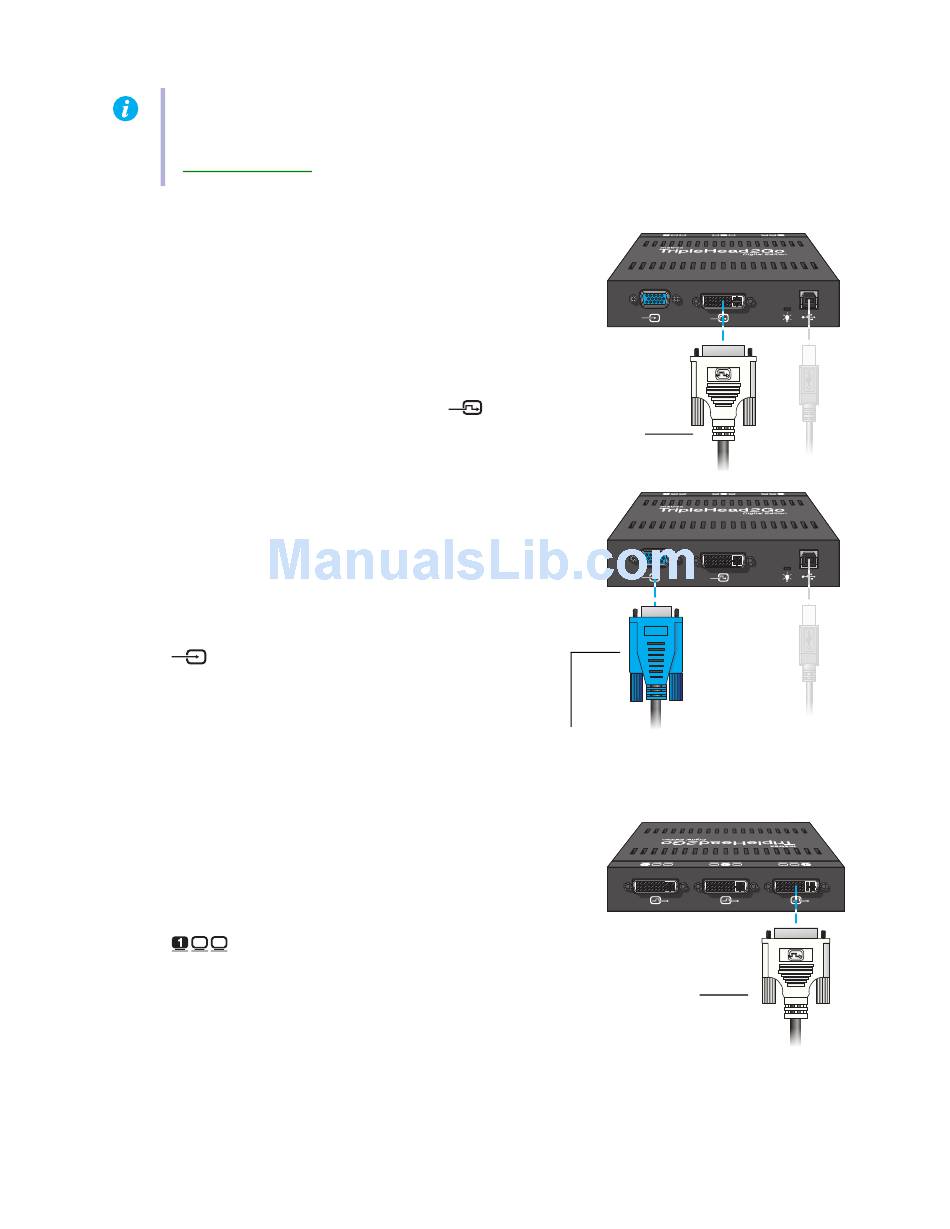

Matrox input cable
(DVI to DVI)
Matrox input cable
(HD-15 to HD-15)
Monitor cable
(DVI)
