Summary of Contents for SOMFY Telis Composio RTS
- Page 1 Telis Composio RTS USER MANUAL 5015237A...

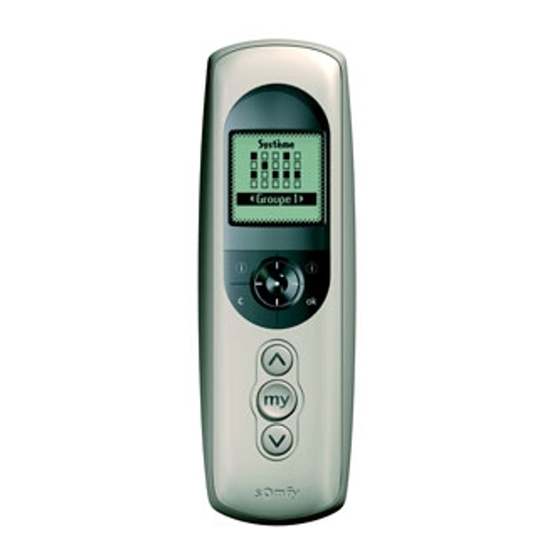

- Page 2 REMOTE CONTROL PRESENTATION Description of the remote control Display Up order( Stop / Intermediate position ( Down order ( Programming key (Prog.) Wall mount Mount compartment Battery compartment cover Help / Information ( N ) Cancel or back to a previous screen( C ) Validation (ok) Move left ( Move right (...
- Page 3 ( N) ( N ) (ok) ( C )
- Page 4 NOTES...
-
Page 5: Table Of Contents
CONTENTS CHARACTERISTICS Presentation Technical specifications SETTING INTO SERVICE Fitting/replacing batteries Attaching the wall mount QUICK START GUIDE Introduction Moving through the matrix/menus Selecting a group Driving a group Favourite position Using the Soliris ( u ) function CUSTOMISING THE MATRIX Renaming groups Organising groups in the matrix SETTINGS... -
Page 6: Characteristics
CHARACTERISTICS Presentation Telis Composio RTS is a remote control that lets you drive up to 20 groups of products compatible with Somfy (RTS) radio technology. The following product categories can be controlled by the Telis Composio RTS remote control: • roller shutters, •... -
Page 7: Setting Into Service
Used batteries should always be recycled and never disposed of with regular waste Setting into service for the first time When first used the Telis Composio RTS automatically prompts the user to set the language and create the first groups: 1- Select the language using the ( n ) keys and confirm with (ok). -
Page 8: Quick Start Guide
QUICK START GUIDE Introduction Telis Composio RTS is used to control all of the opening and closing systems for a home by creating groups of motor-driven systems to cover zones within the house. With just one touch of a key, all of the products in the same group will rise, fall or adopt a favourite position, simultaneously. -
Page 9: Moving Through The Matrix/Menus
(ok) ( C ) Telis Composio RTS. Press (i) or (ok) to call up the next screen. ( C ) returns you to the previous screen. Press ( C ) as many times as necessary to return to the main screen. -
Page 10: Selecting A Group
QUICK START GUIDE Selecting a group There are two different ways to select a group. Selecting a group by name Place the cursor on the group names at the bottom of the screen and use the ( n ) keys to scroll the group names until the desired group is found. -
Page 11: Favourite Position
We recommend saving, modifying or deleting favourite positions individually for each product: • using Telis Composio RTS for groups comprising a single product. • using the product’s local control point. Saving or modifying the favourite position Move the product to the desired position. -
Page 12: Using The Soliris ( U ) Function
(i). Confirm with ( ok). “All” to activate or deactivate the Soliris function for all of the groups controlled by the Telis Composio RTS remote control. Using this selection it is also possible to delete groups with (i). Confirm with ( ok). -
Page 13: Customising The Matrix
CUSTOMISING THE MATRIX Renaming groups The “System> Groups> Page” ( k ) menu lets you display groups column by column with their names. Select the desired group using the ( m ) keys and confirm with (i) or (ok) to rename the group. -
Page 14: Settings
The matrix can be set up for a 12 group display (3 lines x 4 columns) or a 20 group display (4 lines x 5 columns). The Telis Composio RTS remote control is factory set up for a 12 group... -
Page 15: Screen
The screen display can be set up without back lighting or with back lighting lasting 5 seconds or 15 seconds after the last key is pressed. The Telis Composio RTS remote control is set up at the factory for 5 second back lighting. Select the chosen option with (i) and confirm with (ok). -
Page 16: Creating A Group
We recommend pairing all carrier products with local control points and to set the end of travel stops for each carrier product before using the Telis Composio RTS. Nevertheless, Telis Composio RTS can be used like any RTS remote control to set motors into service (setting end of travel stops…). - Page 17 CREATING A GROUP 2- Press the (Prog.) key on the Telis Composio RTS remote control for 0.5 seconds. The corresponding product is again activated (a brief movement or blinking) confirming the end of the procedure. Repeat steps 1 and 2 for every product to be assigned to the group being created.
-
Page 18: Modifying A Group
Local Control Options 2- Press the (Prog.) key on the Telis Composio RTS remote control for 0.5 seconds. The corresponding product is again activated (a brief movement or blinking) confirming the end of the procedure. -
Page 19: Deleting A Group
Local Control Options 2- Press the (Prog.) key on the Telis Composio RTS remote control for 0.5 seconds. The corresponding product is again activated (a brief movement or blinking) confirming the end of the proce- dure. -
Page 20: Index
INDEX Heading pages CONTACT GROUPS Examples Selecting a group Selecting from the last groups used 6, 10 Selecting from the matrix Driving a group Renaming a group Organising groups Matrix size (12 or 20 groups) Screen back lighting Creating a group 12, 13 Modifying a group Deleting a group... -
Page 21: Notes
NOTES... - Page 22 NOTES...
- Page 23 India : SOMFY INDIA PVT Ltd Slovaquia : (43) 662 62 53 08 (91) 11 51 65 91 76 cf. Czech Republic - SOMFY Spol s.r.o. (420) 296 372 486-7 Belgium : SOMFY BELUX Italy : SOMFY ITALIA s.r.l (32) 2 712 07 70...
- Page 24 SOMFY SAS Capital 20 000 000 euros RCS Bonneville 303.970.230 - 12 -2006...
