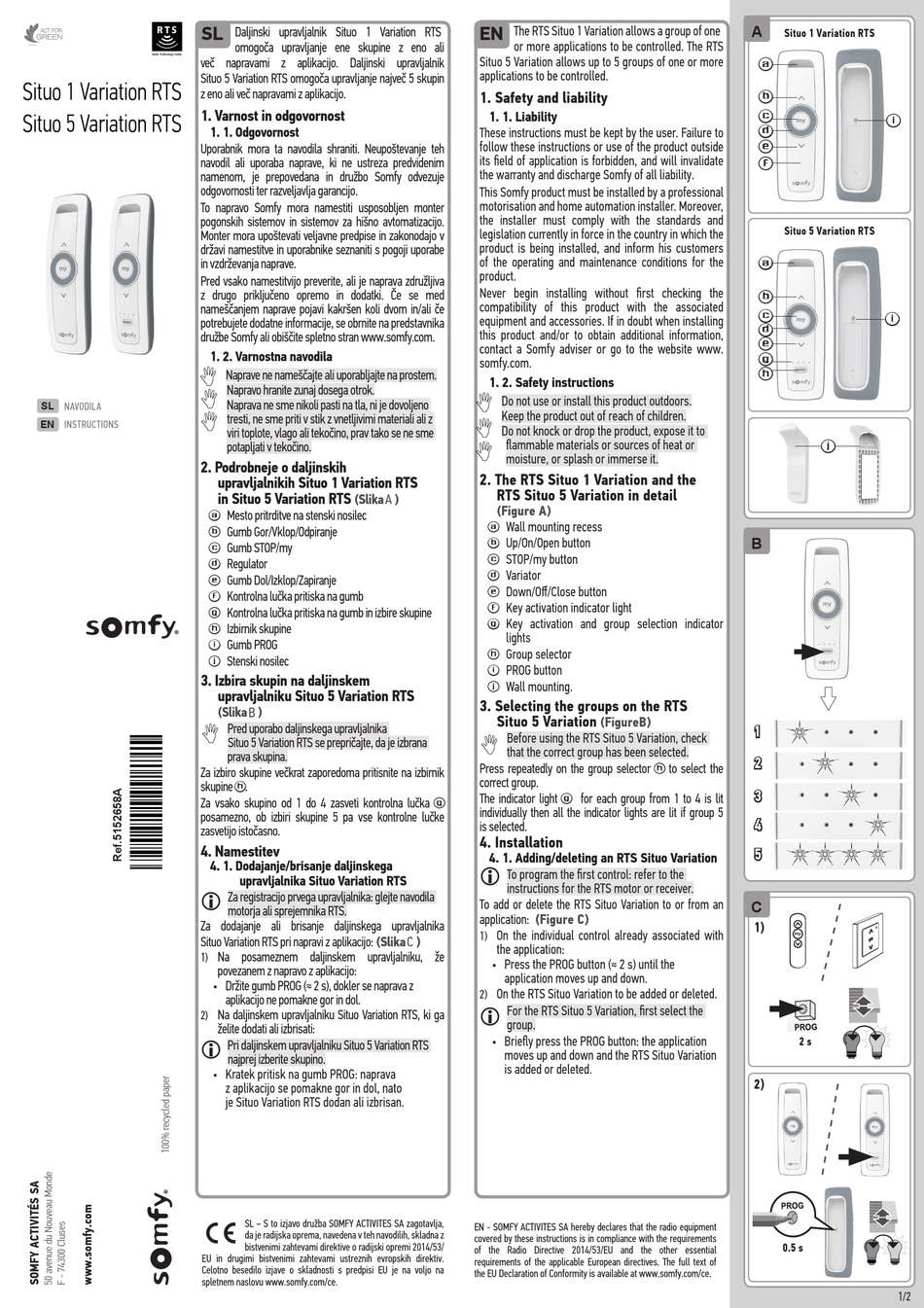

SOMFY Situo 1 Variation RTS Instructions

Situo 1 Variation RTS
Situo 5 Variation RTS
SL
NAVODILA
EN
INSTRUCTIONS
SL
Daljinski upravljalnik Situo 1 Variation RTS
omogoča upravljanje ene skupine z eno ali
več napravami z aplikacijo. Daljinski upravljalnik
Situo 5 Variation RTS omogoča upravljanje največ 5 skupin
z eno ali več napravami z aplikacijo.
1. Varnost in odgovornost
1. 1. Odgovornost
Uporabnik mora ta navodila shraniti. Neupoštevanje teh
navodil ali uporaba naprave, ki ne ustreza predvidenim
namenom, je prepovedana in družbo Somfy odvezuje
odgovornosti ter razveljavlja garancijo.
To napravo Somfy mora namestiti usposobljen monter
pogonskih sistemov in sistemov za hišno avtomatizacijo.
Monter mora upoštevati veljavne predpise in zakonodajo v
državi namestitve in uporabnike seznaniti s pogoji uporabe
in vzdrževanja naprave.
Pred vsako namestitvijo preverite, ali je naprava združljiva
z drugo priključeno opremo in dodatki. Če se med
nameščanjem naprave pojavi kakršen koli dvom in/ali če
potrebujete dodatne informacije, se obrnite na predstavnika
družbe Somfy ali obiščite spletno stran www.somfy.com.
1. 2. Varnostna navodila

Naprave ne nameščajte ali uporabljajte na prostem.
Napravo hranite zunaj dosega otrok.

Naprava ne sme nikoli pasti na tla, ni je dovoljeno
 tresti, ne sme priti v stik z vnetljivimi materiali ali z
viri toplote, vlago ali tekočino, prav tako se ne sme
potapljati v tekočino.
2. Podrobneje o daljinskih
upravljalnikih Situo 1 Variation RTS
in Situo 5 Variation RTS
(Slika A )
Mesto pritrditve na stenski nosilec
a
Gumb Gor/Vklop/Odpiranje
b
Gumb STOP/my
c
Regulator
d
Gumb Dol/Izklop/Zapiranje
e
Kontrolna lučka pritiska na gumb
f
Kontrolna lučka pritiska na gumb in izbire skupine
g
Izbirnik skupine
h
Gumb PROG
i
Stenski nosilec
j
3. Izbira skupin na daljinskem
upravljalniku Situo 5 Variation RTS
(Slika B )
Pred uporabo daljinskega upravljalnika

Situo 5 Variation RTS se prepričajte, da je izbrana
prava skupina.
Za izbiro skupine večkrat zaporedoma pritisnite na izbirnik
skupine h.
Za vsako skupino od 1 do 4 zasveti kontrolna lučka
posamezno, ob izbiri skupine 5 pa vse kontrolne lučke
zasvetijo istočasno.
4. Namestitev
4. 1. Dodajanje/brisanje daljinskega
upravljalnika Situo Variation RTS
Za registracijo prvega upravljalnika: glejte navodila
motorja ali sprejemnika RTS.
Za dodajanje ali brisanje daljinskega upravljalnika
Situo Variation RTS pri napravi z aplikacijo:
Na posameznem daljinskem upravljalniku, že
1)
povezanem z napravo z aplikacijo:
Držite gumb PROG (≈ 2 s), dokler se naprava z
•
aplikacijo ne pomakne gor in dol.
Na daljinskem upravljalniku Situo Variation RTS, ki ga
2)
želite dodati ali izbrisati:
Pri daljinskem upravljalniku Situo 5 Variation RTS
najprej izberite skupino.
Kratek pritisk na gumb PROG: naprava
•
z aplikacijo se pomakne gor in dol, nato
je Situo Variation RTS dodan ali izbrisan.
SL – S to izjavo družba SOMFY ACTIVITES SA zagotavlja,
da je radijska oprema, navedena v teh navodilih, skladna z
bistvenimi zahtevami direktive o radijski opremi 2014/53/
EU in drugimi bistvenimi zahtevami ustreznih evropskih direktiv.
Celotno besedilo izjave o skladnosti s predpisi EU je na voljo na
spletnem naslovu www.somfy.com/ce.
EN The RTS Situo 1 Variation allows a group of one
or more applications to be controlled. The RTS
Situo 5 Variation allows up to 5 groups of one or more
applications to be controlled.
1. Safety and liability
1. 1. Liability
These instructions must be kept by the user. Failure to
follow these instructions or use of the product outside
its field of application is forbidden, and will invalidate
the warranty and discharge Somfy of all liability.
This Somfy product must be installed by a professional
motorisation and home automation installer. Moreover,
the installer must comply with the standards and
legislation currently in force in the country in which the
product is being installed, and inform his customers
of the operating and maintenance conditions for the
product.
Never begin installing without first checking the
compatibility of this product with the associated
equipment and accessories. If in doubt when installing
this product and/or to obtain additional information,
contact a Somfy adviser or go to the website www.
somfy.com.
1. 2. Safety instructions

Do not use or install this product outdoors.
Keep the product out of reach of children.

Do not knock or drop the product, expose it to
flammable materials or sources of heat or

moisture, or splash or immerse it.

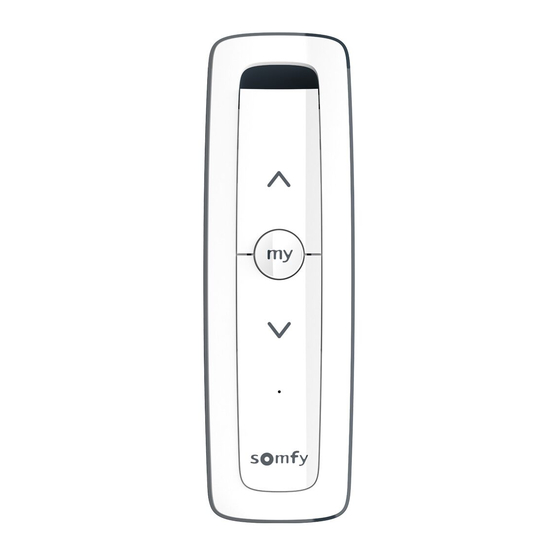

2. The RTS Situo 1 Variation and the
RTS Situo 5 Variation in detail
(Figure A)
Wall mounting recess
a
Up/On/Open button
b
STOP/my button
c
Variator
d
Down/Off/Close button
e
Key activation indicator light
f
Key activation and group selection indicator
g
lights
Group selector
h
PROG button
i
Wall mounting.
j
3. Selecting the groups on the RTS
Situo 5 Variation
Before using the RTS Situo 5 Variation, check

that the correct group has been selected.
Press repeatedly on the group selector
correct group.
The indicator light
g
individually then all the indicator lights are lit if group 5
is selected.
4. Installation
4. 1. Adding/deleting an RTS Situo Variation
To program the first control: refer to the
instructions for the RTS motor or receiver.
To add or delete the RTS Situo Variation to or from an
application: (Figure C)
On the individual control already associated with
1)
(Slika C )
the application:
Press the PROG button (≈ 2 s) until the
•
application moves up and down.
On the RTS Situo Variation to be added or deleted.
2)
For the RTS Situo 5 Variation, first select the
group.
Briefly press the PROG button: the application
•
moves up and down and the RTS Situo Variation
is added or deleted.
EN - SOMFY ACTIVITES SA hereby declares that the radio equipment
covered by these instructions is in compliance with the requirements
of the Radio Directive 2014/53/EU and the other essential
requirements of the applicable European directives. The full text of
the EU Declaration of Conformity is available at www.somfy.com/ce.
(FigureB)
to select the
h
for each group from 1 to 4 is lit
g
A
Situo 1 Variation RTS
a
b
c
i
d
e
f
Situo 5 Variation RTS
a
b
c
i
d
e
g
h
j
B
1
2
3
4
5
C
1)
2 s
2)
0.5 s
1/2
