SOMFY Telis 4 Soliris RTS Operating And Installation Manual

Hide thumbs Also See for Telis 4 Soliris RTS:
Table of Contents

Advertisement

Quick Links

www.somfy.com

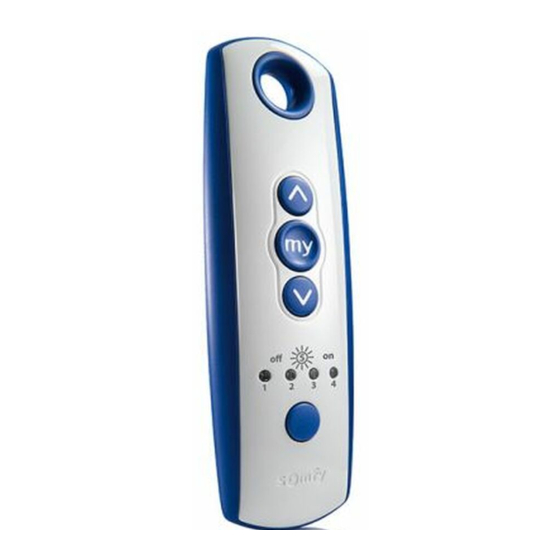

Telis 4 Soliris RTS
Operating and installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Telis 4 Soliris RTS and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY Telis 4 Soliris RTS

Summary of Contents for SOMFY Telis 4 Soliris RTS

  • Page 1 Telis 4 Soliris RTS Operating and installation guide...

  • Page 2: Table Of Contents

    Telis 4 Soliris RTS Contents 1. Brief introduction to the Telis 4 Soliris RTS remote control 1.1 What is the Telis 4 Soliris RTS for? 1.2 A few definitions 2. Safety - Important information 2.1 Installation and commissioning 2.2 Operating 2.3 Environment...

  • Page 3: Brief Introduction To The Telis 4 Soliris Rts Remote Control

    Somfy’s expertise delivers satisfaction guaranteed. Thank you for choosing a Somfy Telis 4 Soliris RTS . Before installing and using the Telis 4 Soliris RTS, please read this guide carefully. Somfy solutions animate your windows and entrances to bring your whole house alive.

  • Page 4: A Few Definitions

    Monitor the product while it is moving, especially during commissio- ning of the Telis 4 Soliris RTS, and keep people at a distance until the product is completely closed. Make sure the power supply to the product is turned off before any maintenance operation in the vicinity of the product (for example, when cleaning windows near your awning).

  • Page 5: Environment

    Telis 4 Soliris RTS remote control Mounting pin Bracket Plug Screw Identification label 3.2 Tools required • Appropriate screwdriver for the screws to be used • Insulated flathead electrician's screwdriver • Drill and drill bit • Pencil Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 6: Details Of The Telis 4 Soliris Rts

    5. How does the Telis 4 Soliris RTS operate? 5.1 Channels and indicator lights 5.1.1 Description The Telis 4 Soliris RTS allows independent or simultaneous control of different products with a single remote control unit. This functionality is possible thanks to a 5-channel system, identified by indicator lights: each indicator light corresponds to an individual channel.
  • Page 7 Press one of the three buttons, Up/ STOP/Down to control the operations. Caution: the Telis 4 Soliris RTS will store the last channel activated. Press the Selection button (E), the indicator light of the last channel used will light up.
  • Page 8 Wind/Sun indicator lights will come on; the roller shutter / awnings allocatted to channel 5 move briefly. Release the Selection button (E): the Wind and Sun function is active. Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 9: Choice Of Products To Be Controlled

    Terrace awning No. 2 called Terrace Awning 2, Each of these products is fitted with an individual control point. The purpose of installing the Telis 4 Soliris RTS is to be able to control these 2 roller shutters and 2 awnings independently but also on certain occasions, the 2 terrace awnings at the same time.
  • Page 10 Living Room shutter 1. Press the PROG button on the origi- nal control point (refer to the section “Adding a new Telis 4 Soliris RTS”) until the roller shutter moves briefly. Press the Selection button (E) to light up the first indicator light (channel 1).
  • Page 11 Soliris RTS: The roller shutter will perform a ► second brief movement to indicate that the new Telis 4 Soliris RTS is programmed. Living Room Shutter 2 on channel 2 Identify the original control point alloca- ted to the Living Room shutter 2.
  • Page 12 RTS: The awning shutter will perform a ► second brief movement to indicate that the new Telis 4 Soliris RTS is programmed. Terrace Awning 2 on channel 4 Identify the original control point alloca- ted to the Terrace awning 2.

  • Page 13: Adding A New Telis 4 Soliris Rts

    6.1 Identifying the original control point 6.1.1 Installation recommendations To add a Telis 4 Soliris RTS, use the control point allocated to the roller shutter/awning which controls only this roller shutter/awning: pressing the Down or Up button only causes movement of the roller shutter/ awning to which the new Telis 4 Soliris RTS must be connected.

  • Page 14: One-Touch Point

    6.1.2 Original control points Find the original control point in the list below and refer to the paragraph given to add the new Telis 4 Soliris RTS: 1) Control point fixed to the wall with a single button, called a One-touch point, see paragraph 6.2;...
  • Page 15 Press the PROG button (F) on the new Telis 4 Soliris RTS briefly with the tip of a pencil: the roller shutter/awning will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 Soliris RTS is stored.
  • Page 16 Telis 4 Soliris RTS Press the Down button on the new Telis 4 Soliris RTS: If the roller shutter/awning is lowe- red, the Telis 4 Soliris RTS is operational. If the roller shutter/awning does not move, contact the Somfy assistance service.

  • Page 17: Point With Up/Stop/Down Buttons

    Telis 4 Soliris RTS Press the PROG button (F) on the new Telis 4 Soliris RTS briefly with the tip of a pencil: the roller shutter/awning will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 Soliris RTS is stored.
  • Page 18 Caution! If after removing the front cover, no PROG button is found, this means that the control point is not compatible: the Telis 4 Soliris RTS cannot be linked to the roller shutter/awning. 6.3.2 Adding the Telis 4 Soliris RTS...

  • Page 19: Timer

    Caution! If after removing the front cover, no PROG button is found, this means that the control point is not compatible: the Telis 4 Soliris RTS cannot be linked to the roller shutter/awning. Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 20 Press the PROG button (F) on the new Telis 4 Soliris RTS briefly with the tip of a pencil: the roller shutter/awning will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 Soliris RTS is stored.

  • Page 21: Situo Control Point

    Press the PROG button (F) on the new Telis 4 Soliris RTS briefly with the tip of a pencil: the roller shutter/awning will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 Soliris RTS is stored.

  • Page 22: Telis 1 Rts/Telis Soliris Rts Remote Controls

    Telis 4 Soliris RTS Press the Down button on the new Telis 4 Soliris RTS: If the roller shutter/awning is lowe- red, the Telis 4 Soliris RTS is operational. If the roller shutter/awning does not move, contact the Somfy assistance service.

  • Page 23: Telis 4 Rts/Telis 4 Soliris Rts Remote Controls

    Press the PROG button (F) on the new Telis 4 Soliris RTS briefly with the tip of a pencil: the roller shutter/awning will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 Soliris RTS is stored.
  • Page 24 Press the PROG button (F) on the new Telis 4 Soliris RTS briefly with the tip of a pencil: the roller shutter/awning will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 Soliris RTS is stored.

  • Page 25: Replacing A Lost Or Broken Control Point

    RTS" according to the control point model. Note: If, after having followed this operation, there is not a brief movement (or a series of beeps) from the roller shutter/awning, contact the Somfy assistance service so they can provide guidance for the replacement.

  • Page 26: Everyday Use Of The Telis 4 Soliris Rts

    To find out more about the my function, visit Somfy's website at the following address: http://www.somfy.com/mysomfy/ Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 27: Sun Function

    Wind indicator lights come on:the Sun function is no longer active:the products alloca- ted to channel 5 move briefly. the products allocated to channel ► 5 react automatically to changes in wind. Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 28: Replacing The Battery

    Caution: the Telis 4 Soliris RTS will store the last channel activated. 9.6 Maintenance Clean the Telis 4 Soliris RTS with a damp cloth using multi-purpose house- hold or glass cleaning product. Never immerse or soak the Telis 4 Soliris RTS in any liquid.

  • Page 29: Problems With The Telis 4 Soliris Rts

    Telis 4 Soliris RTS 10. Problems with the Telis 4 Soliris RTS? Problem Possible causes Solutions The roller shutter/awning The Telis 4 Soliris Move it closer to the roller does not move after a RTS is too far away shutter/awning and press a...
  • Page 30 "How to link the Telis 4 Soliris RTS to each roller shutter/ awning". For any unresolved questions or problems, please contact the Somfy assistance service on the number given on the back cover of this guide Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 31 Notes...
  • Page 32 Tel: +1 (0) 609 395 1300 Website: www.somfy.com/nam/index. cfm?language=en-us Somfy hereby declares that this product conforms to the essential requirements and other relevant provisions of Directive 1999/5/CE. A Declaration of Conformity is available at www.somfy.com/ce. For use in the European Union, the Swiss Confederation (Switzerland) and Norway.
