Lopi Northfield GS Owner's Manual page 50

Optional Equipment
50

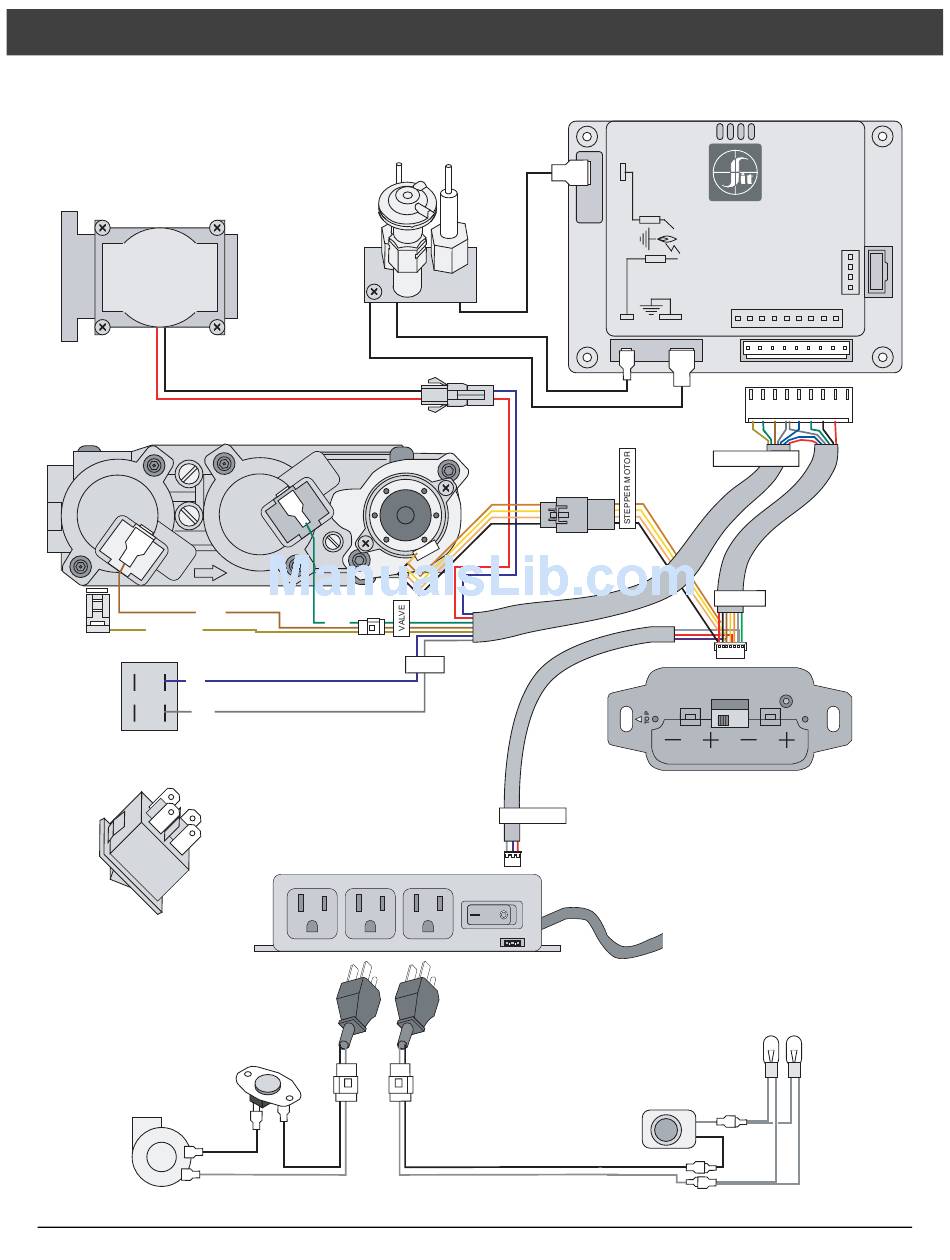

GreenSmart Wiring Diagram
Comfort Control
Valve
Orange
Yellow / Green
Blue
White
CONTINUOUS
PILOT
INTERMITTENT
PILOT
Optional
Blower(s)
© Travis Industries
Spark Rod
Pilot
Ground
Green
Fan Controller
110V OUT FAN
Thermodisk
(for qualified installers only)
Pilot
Sensor
IPI / CPI
FAN CONTROL
POWER
AUX OUT COM
Accent Light
Rheostat
4091120
CN4
PILOT
DIGITAL
SENSOR
FIREPLACE
BURNER
CONTROL
SPARK ROD
DIAGNOSTIC
VALVE COMMAND
GROUND
CN3 CN2
BURNER CONTROL
RECEIVER
(4) AA Batteries
120 VAC
Power In
Accent
Light (s)
100-01239_000
CN0
POWER
CN1
Remote
Receiver
