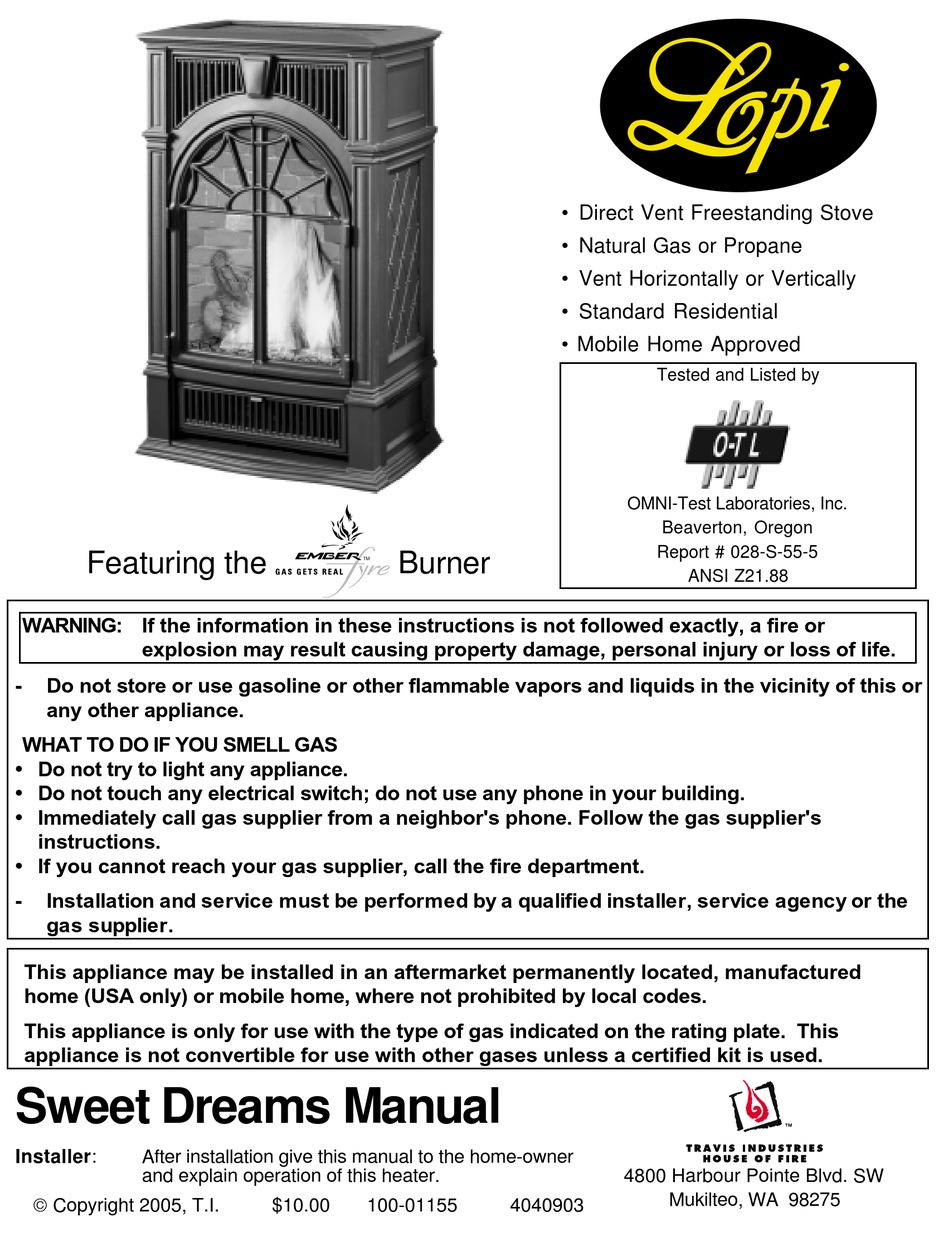

Featuring the
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket permanently located, manufactured
home (USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases unless a certified kit is used.
Sweet Dreams Manual
Installer:
After installation give this manual to the home-owner
and explain operation of this heater.
Copyright 2005, T.I.
Burner
$10.00
100-01155
• Direct Vent Freestanding Stove
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-S-55-5
ANSI Z21.88
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
4040903
Advertisement
Table of Contents
Related Manuals for Lopi Sweet Dreams
Summary of Contents for Lopi Sweet Dreams
- Page 1 This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases unless a certified kit is used. Sweet Dreams Manual Installer: After installation give this manual to the home-owner and explain operation of this heater.
-
Page 2: Introduction & Important Information
Introduction Introduction We welcome you as a new owner of a Lopi Sweet Dreams stove. In purchasing a Sweet Dreams you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Sweet Dreams is one of the finest home heaters the world over. -
Page 3: Table Of Contents
Table of Contents Introduction Operation Introduction & Important Information....2 Before You Begin .........26 Location of Controls ........26 Safety Precautions Starting The Pilot .........27 Safety Precautions ........4 Starting the Stove for the First Time ....28 Features & Specifications Turning the Stove On and Off ......28 Features ............6 Adjusting the Flame Height......28 Installation Options ........6... -
Page 4: Safety Precautions
Safety Precautions • IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department •... - Page 5 Safety Precautions • Do not place clothing or • Light the heater using the other flammable items on or built-in piezo igniter. Do not near the heater. Because use matches or any other this heater can be controlled external device to light your by a thermostat there is a heater.
-
Page 6: Features
Specifications Features: Installation Options: Ember Fyre™ Burner for "Wood Fire" Look Freestanding Stove Works During Power Outages (millivolt system) Horizontal or Vertical Vent High Efficiency Optional Thermostat or Remote Control Residential or Mobile Home Optional Blower for Quicker Heat Distribution Straight or Corner Placement Convenient Operating Controls Variable-Rate Heat Output... -
Page 7: Installation
Installation (for qualified installers only) Installation Warnings: Failure to follow all of the requirements may result in property damage, bodily injury, or even death. This heater must be installed by a qualified installer who has gone through a training program for the installation of direct vent gas appliances. This appliance must be installed in accordance with all local codes, if any;... -
Page 8: Installation Hints
Installation (for qualified installers only) Installation Hints: • If converting to LP, convert the appliance prior to installation. • If using the optional blower, install it prior to installation. • Install the logs last - they are fragile. • When determining the location of the stove, locate the wall studs (for horizontal penetrations) and ceiling trusses (for vertical penetrations). -
Page 9: Heater Placement Requirements
Installation (for qualified installers only) Heater Placement Requirements • Heater must be installed on a level surface capable of supporting the heater and vent • Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies. -
Page 10: Gas Line Installation
Installation (for qualified installers only) Gas Line Installation MASSACHUSETTS INSTALLATIONS WARNING: THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUYMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS. OTHER MASSACHUSETTS CODE REQUIREMENTS: • Flexible connector must not be longer than 36 inches. •... -
Page 11: Vent Requirements
Installation (for qualified installers only) Vent Requirements • The vent must maintain the required clearance to combustible materials to prevent a fire (see “Clearances” below). Do not fill air spaces with insulation. • The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. -
Page 12: Part Numbers For 8" Vent
Installation (for qualified installers only) Vent Installation • In addition to the requirements below, follow the requirements provided with the vent. Vertical Vent Vertical Termination Requirements (part # 1291) Use a roof flashing and storm collar whenever passing through the roof Combustible Framing Use a ceiling firestop whenever passing through a... -
Page 13: Approved Vent Configurations
Installation (for qualified installers only) Approved Vent Configurations Restrictor Position • A vent restrictor is built Adjustment into the appliance to Plate adjust the flow rate of exhaust gases. This Adjustment Bracket ensures proper combustion for all vent This restrictor is in position 1 configurations. -
Page 14: Vertical Terminations
Installation (for qualified installers only) Vertical Terminations • The diffuser must be removed. • The termination must fall within the shaded area 40' (max) 40' (max) shown in the chart. Use NOTE: Restrictor the indicated restrictor Restrictor positions are Position # 7 based upon lab tests. -
Page 15: Horizontal Terminations - Lp (Propane)
Installation (for qualified installers only) Horizontal Terminations – LP (Propane) • The diffuser must be removed. • 0 or 2 90° Elbows may be used. See "Horizontal Termination with 45° Elbow" if installing into a corner application. • If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations). -
Page 16: Horizontal Terminations - Ng (Natural Gas)
Installation (for qualified installers only) Horizontal Terminations – NG (Natural Gas) • 0 or 2 90° Elbows may be used. See "Horizontal Termination with 45° Elbow" if installing into a corner application. • If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations). -
Page 17: Horizontal Term. With 45° Elbow (Ng Or Lp)
Installation (for qualified installers only) Horizontal Termination with 45° Elbow (NG or LP) • This type of installation requires (1) 45° elbow, a maximum 12" of horizontal vent, and the horizontal termination. • Use restrictor position # 1. • When using NG, leave the diffuser installed. •... -
Page 18: Vent Termination Requirements
Installation (for qualified installers only) Vent Termination Requirements (see illustration below) Venting terminals shall not be recessed into a wall or siding. Minimum 9" clearance from any door or window Roof Minimum 12" above any grade, veranda, porch, deck or balcony Surface Minimum 3-3/8"... -
Page 19: Finalizing The Installation
Finalizing the Installation (for qualified installers only) Remove the stove top and face following the directions below. Warning: The appliance must be completely cool prior to removing the top and face. With both hands, lift the stove top and place it aside. NOTE: If using the Aromatherapy... -
Page 20: Glass Frame Removal
Finalizing the Installation (for qualified installers only) Remove the glass following the directions below. Warning: Do not strike or slam the glass. N o t e : Verify the gasket (inside the glass frame) is intact and contacts the firebox when installed. Insert the 1/4”... - Page 21 Finalizing the Installation (for qualified installers only) Glass Frame Removal and Installation (continued) The spring pin can come loose from the latch assembly. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the spring pin if it becomes loose. To re-install the spring pin, first insert this end into a 1/4”...
-
Page 22: Log Installation
Finalizing the Installation (for qualified installers only) • If converting to propane or using the firebox liner, do so now before installing the logs. Install the log set following the directions below. STEP A – Rear Log Installation This notch is for the pilot assembly. - Page 23 Finalizing the Installation (for qualified installers only) STEP C – Twig Installation Place the twig as shown (make sure the pin on the rear log inserts into the hole on the twig). STEP D –Ember Installation Installing the Rock Wool: The rock wool comes in one clump.
-
Page 24: Purge Gas & Leak Test
Finalizing the Installation (for qualified installers only) We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up. Replace the glass. Replace the face and top. -
Page 25: Check Flame
Finalizing the Installation (for qualified installers only) FINE TUNING THE EMBER-FYRE™ BURNER Each installation is affected by altitude, vent configuration, and fuel quality. Because of this, the restrictor and air shutter may need to be fine tuned to each installation. Follow the hints below to fine-tune the burner for optimum performance and aesthetics. -
Page 26: Operation
Operation Before You Begin Warning: Read this entire manual before you use your new stove (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Warning : Do not operate appliance with the glass front removed, cracked or broken. -
Page 27: Starting The Pilot
Operation Starting The Pilot Flame The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF". However, the pilot will go out if the gas is shut off, the propane tank runs out (or low) or if the stove malfunctions. -
Page 28: Starting The Stove For The First Time
Operation Starting the Stove for the First Time Fumes from the Painted Surfaces Curing Burn the heater at a medium setting for approximately one hour the first time. This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel may occur. This is normal. -
Page 29: Adjusting The Blower Speed (Optional)
Operation Adjusting the Blower Speed (optional) The blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See the illustration below for instructions on adjusting the blower speed. -
Page 30: Maintenance
Maintenance (for qualified service personnel only) Maintaining Your Stove's Appearance WARNING : Make sure the appliance has fully cooled prior to cleaning. Painted Surfaces • Painted surfaces should be cleaned with a duster. If scratches occur, lightly sand the area with fine sandpaper. Clean the area and, with the stove cool, apply one or two thin coats of stove paint to the area (mask the area to avoid overspray). -
Page 31: Troubleshooting Table
Maintenance (for qualified service personnel only) Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: A gas shut off valve is turned off Check all gas shut off valves Pilot Will Not Light The gas control knob isn't turned to "PILOT" See "Starting the Pilot Light"... -
Page 32: How This Stove Works
Maintenance (for qualified service personnel only) How this Stove Works This stove was designed with safety as the primary concern. Many of the components inside this stove are for safety purposes. Therefore, only certified gas service technicians should service this stove. -
Page 33: Wiring Diagram
Maintenance (for qualified service personnel only) Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. Thermocouple Thermopile Piezo Igniter Millivolt Wiring (for gas control valve) Copper Co-Axial Wire Orange... -
Page 34: Safety (Listing) Label
UL 307b. The Sweet Dreams DV is equipped from the factory only for use with Natural Gas. For conversion to LP (Propane) use kit supplied by the manufacturer. This appliance must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1 and NFPA 54. Installation in Manufactured or Mobile Homes must conform with: Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280. -
Page 35: Warranty
Limited 7 Year Warranty To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. -
Page 36: Optional Equipment
Door, Double Door, Taupe, Sweet Dreams/Looking Glass SKU# 99300448 • Stone Kit, Travertine, Sweet Dreams SKU# 99600218 • Cast Kit, Sweet Dreams - Oxord Brown Top & Side Plates SKU# 99600222 • Cast Kit, Sweet Dreams - Taupe Top & Side Plates SKU# 99600223 •... -
Page 37: Lp Conversion Kit
Optional Equipment (for qualified installers only) LP Conversion Instructions Install the conversion kit prior to installing the gas line to ensure proper gas use. Remove the face and glass (see page 19-20). Remove the logs and coals (if installed - page 22) Remove the burner (see illustration below). - Page 38 Optional Equipment (for qualified installers only) Follow the directions below to replace the orifice. Slide the air shutter all the way to the left. Burner Orifice Manifold The new LP orifice has “56” stamped on it. Use a 1/2” open end wrench to Apply thread unscrew the burner orifice.
- Page 39 Optional Equipment (for qualified installers only) Install the logs and Remove and discard the three screws using a Install the LP regulator. Use the screws embers. slotted screwdriver of Torx T-20. included with the LP regulator. Tighten to approximately 25 Lbs. torque. Replace glass and face.
-
Page 40: Blower
Optional Equipment (for qualified installers only) Blower (SKU 99000158) PACKING LIST • Blower with Mounting Plate • Wiring Harness with Strain Relief Plate & Power Cord • Four (4) # 8-32 Center Lock Nuts • Two (2) # 8 x 3/8” HWHSSMS Screws •... - Page 41 Optional Equipment (for qualified installers only) Attach the blower wires and grommets following the directions below. Attach the two wires labeled "BLOWER" to the blower. Insert the bushings Blower into the 4 grommets. Slide the 4 grommets onto Mounting the blower mounting plate. Plate Attach the blower (with blower plate) following the directions below.
- Page 42 Optional Equipment (for qualified installers only) Install the rheostat onto the control cover. Attach the rheostat to the control co Remove the button plug with the included nut and star washe from the control cover. NOTE: this tab fits into the hole on the control cover.
-
Page 43: Leg Mounting Kit
INSTALLATION INSTRUCTIONS N O T E : Install this kit prior to installing the Sweet Dreams stove. Remove the stove top and face (see the owner’s manual for details). Attach the legs (and rubber-tipped leveling bolts) to the leg mounting plates following the directions below. -
Page 44: Index
Index Approved Vent Configurations......13-16 Installation Options ...........6 Adjusting the Blower Speed......29 Items Required for Installation......7 Adjusting the Flame Height .......28 Leaking Gas ......See Inst. on Cover Air Shutter Adjustment........24 Listing Information ..........34 Altitude Considerations........11 Location of Controls..........26 Blower Control..........29 Log Set Installation and Removal .......22 BTU Input............6 Maintenance ............30 BTU Output............6...
