English
Adapter-Set
USB Adapters

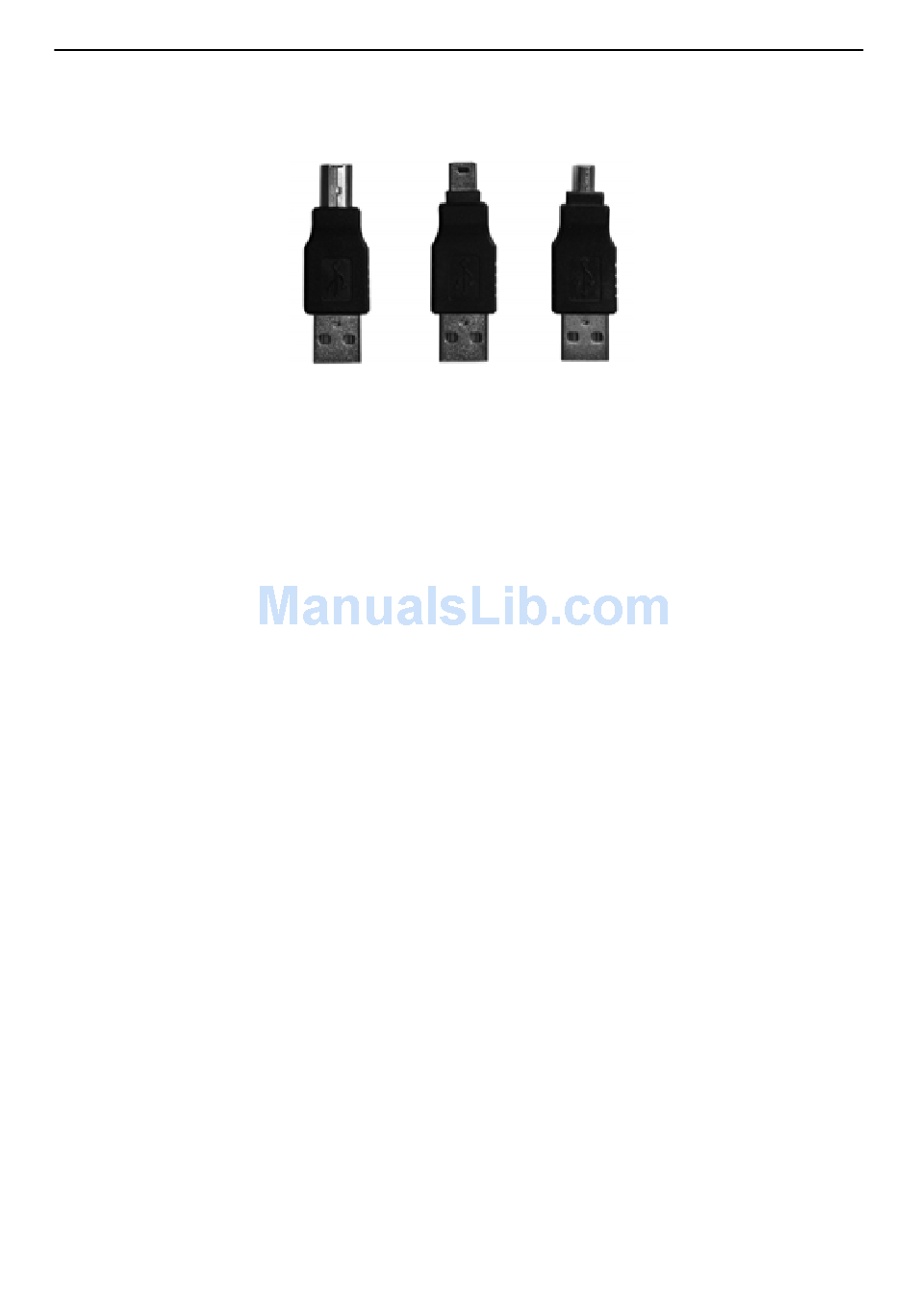

Connect any of the three adapters to the USB extension
cable to obtain a connector cable for different devices (see
also the previous page).
USB Adapter (A-type Connector to B-type Connector)
With this combination you will obtain a conventional USB
cable for external devices (e.g. hard disk drive, scanner,
printer).
USB Adapter (A-type Connector to Mini-USB Connector, 5-
pin)
Devices such as digital cameras, MP3 players or navigation
devices usually feature a 5-pin Mini USB jack. Sometimes it
is also possible to recharge the battery of some devices.
USB Adapter (A-type Connector to Mini-USB Connector, 4-
pin)
The 4-pin Mini USB connector can be found on small
devices (e.g. MP3 players, mobile phones, etc.). Sometimes
it is also possible to recharge the battery of some devices.
8
