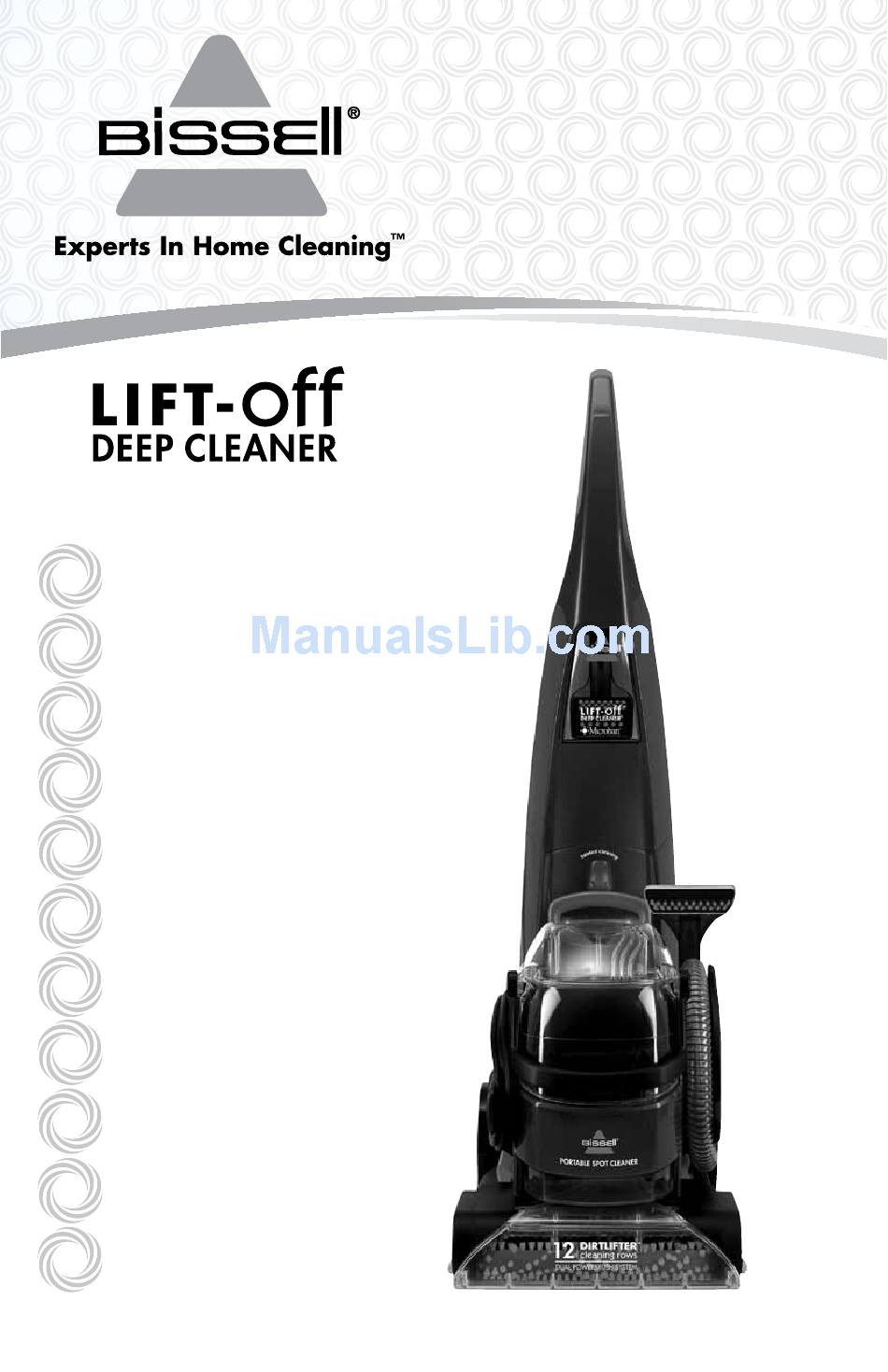

- Page 1 USER'S GUIDE 10N4 SERIES 220-240V Thank You Safety Instructions Product View Assembly Operations 7-12 Maintenance and Care 13-15 Troubleshooting Accessories Replacement Parts Warranty Consumer Care...
- Page 2 Your BISSELL Lift-Off deep cleaner is well made, and we back it with a limited two year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Care department, so, should you ever have a prob- lem, you’ll receive fast, considerate assistance.
-
Page 3: Important Safety Instructions
Use indoors only Use only cleaning products formulated ■ ■ by BISSELL for use in this appliance to Do not immerse; use only on surfaces ■ prevent internal component damage moistened by cleaning process Keep openings free of dust, lint, hair, etc. -
Page 4: Product View
roduct view Upper Handle Carry Handle Heat Indicator Light Formula & Water Tank Power Button Flex Hose Power Cord Quick Release™ Dirty Tank Cord Wrap Portable Spot Cleaning Release Pedal Removeable EdgeSweep ™ Nozzle Assembly Brushes w w w . b i s s e l l . c o m... -
Page 5: Cleaning Formula
Cleaning formula Keep plenty of genuine BISSELL 2X cleaning formula on hand so you can clean and protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning formulas may harm the machine and will void the warranty. -
Page 6: Assembly Instructions
ssembly Your Lift-Off deep cleaner comes in two easy to assemble components: 1. Upper handle 2. Portable spot cleaner/Base IMPORTANT IMPORTANT The only tool you will need to assemble your cleaner is a long ASSEMBLY INSTRUCTIO ASSEMBLY INSTRUCTIO Phillips screwdriver. Use a minimum of a #2 x 4"... -
Page 7: Special Features
Carpet protection applied at the mill typically wears down over time from heavy foot traffic and everyday cleaning, including deep cleaning. To help restore this important protection, only BISSELL offers deep cleaning formulas with Scotchgard protector. This offers extra protection against dirt and tough stains to keep your carpets looking good longer. -
Page 8: Before You Clean
2. Unscrew the black cap and remove bottle insert. 3. Fill tank with hand hot tap water to the water fill line. Add 60 mL of BISSELL 2X formula to the tank. 4. Replace the bottle insert in the tank and tighten the black cap. - Page 9 perations Upright cleaning mode continued Cleaning continued CAUTION: 3. Release the spray trigger and make one slow forward and backward pass over the Do not overwet. Take care not to same area. Repeated passes will help aid run over loose objects or edges in dry time.
- Page 10 perations Upright cleaning mode continued Cleaning your machine continued 2. Rinse nozzle assembly of any dirt WARNING: and debris. Remove portable spot cleaner from To reduce the risk of fire, the base of the machine. electric shock or injury unplug Remove the nozzle assembly from the from outlet before servicing.
-
Page 11: Portable Spot Cleaning Mode
perations Portable spot cleaning mode Preparing the machine 1. Step on the portable spot cleaning pedal to release the portable spot cleaner. 2. Release flex hose by twisting the hose secure latch clockwise. Unwrap flex hose completely. 3. Attach the desired tool to the hose grip until it snaps together. - Page 12 perations Portable spot cleaning mode continued Cleaning with deep Reach™ Tool (select models only) 1. Set tool on soiled surfaces and press the spray trigger to spray solution onto the soiled area to be cleaned. 2. Slowly move the tool back and forth over the soiled surface, keeping the tool in contact with the carpet.
-
Page 13: Machine Care
aintenance and care Machine care (check regularly) WARNING: Cleaning suction gate To reduce the risk of fire, The suction gate automatically diverts electric shock, or injury, turn air when the portable deep cleaner is power OFF and disconnect detached. This should be checked and cleaned regularly for any dirt plug from electrical outlet before performing maintenance... -
Page 14: Small Belt Removal/Replacement
aintenance and care Small belt removal and replacement (as needed) Occasional replacement of one or both belts may become necessary. WARNING: If that is needed, please follow the instructions below. To reduce the risk of fire, electric shock or injury, 1. -
Page 15: Brush Removal/Large Belt Replacement
Refer to step 2 on page 10. If you have any questions or are having trouble installing or replacing your belt(s) or brushes, please call BISSELL Consumer Services. w w w . b i s s e l l . c o m... -
Page 16: Troubleshooting
Other maintenance or service not included in the manual should be performed by an authorized service representative. Thank you for selecting a BISSELL product. Please do not return this product to the store. w w w . b i s s e l l . c o m... - Page 17 ccessories Item Part No. Part Name 203-6651 3” Tough Stain Tool 203-6652 Powered TurboBrush™ Hand Tool 203-6653 4” Upholstery Tool 203-6654 6” Stair Tool 203-7885 Spraying Crevice Tool 203-7569 Deep Reach™ Tool 310-3040 Mesh Bag *Not all parts are included with every model. Cleaning Formula: Refer to bottom of page 5 of this guide for a full selection of cleaning formula available for purchase.
-
Page 18: Replacement Parts
eplacement parts Below please find a list of common replacement parts. While not all of these parts may have come with your specific machine, all are available to you for purchase, if desired. Item Part No. Part Name 203-7893 Formula & Water Tank Assembly (includes cap and insert) 203-6675 Cap and Insert for Formula &... -
Page 19: Warranty
User's Guide is not covered. BISSELL recommends that the original packaging be kept for the duration of the warranty period in case such need arises within the warranty period that the item need re-packing and transportation. -
Page 20: Consumer Care
If your BISSELL product should require service: Call BISSELL Consumer Care at the numbers below and we will give you the location of a BISSELL Authorized Service Center in your area. If you have questions about your warranty or need replacement parts please contact the numbers below.
