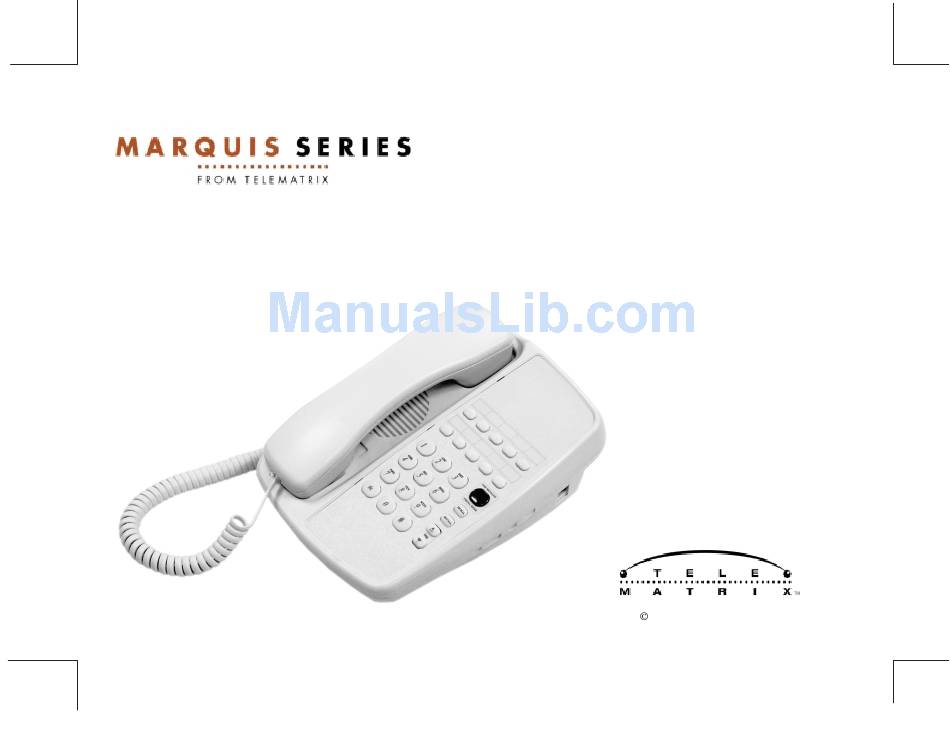

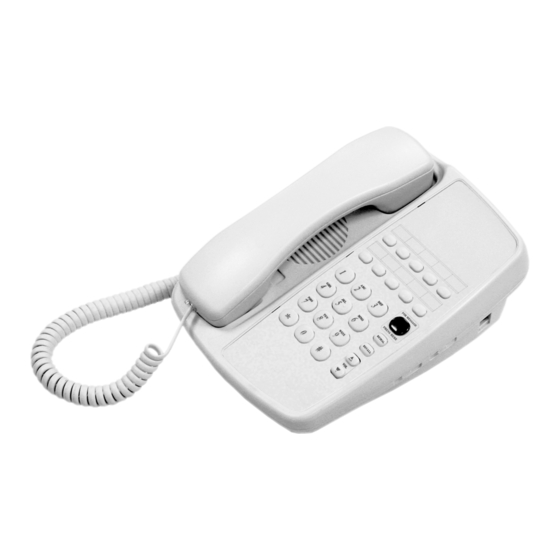

- Page 1 ® ® ® ® INSTALLATION AND USER GUIDE EUROMW5 or MW10 DELUXE SINGLE LINE TELEPHONE Copyright TeleMatrix Inc. 2000...
-
Page 2: Safety And Compliance
The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop, which is used by the device, to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the total of the Load Numbers of all the devices does not exceed 100. -
Page 3: Fcc Part 15 Compliance
Communications du Canada." Europe Compliance The euromwb telephone has been approved to the following standards: iCTR 37 AND TBR 38, EN 60950: 2000, EN 55022: 1998 CLASS B EN 61000-4-2 1995 AS REQUIRED BY EN 55024: 1998... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. - Page 5 MALFUNCTION OF TELEPHONE In the event that your telephone fails to work properly during your ownership and use of it, you should disconnect it from the telephone line to determine if it is your phone which is not working properly or if it is problem in the telephone company's network. If the problem is with your telephone you should discontinue its use until it is repaired.
-
Page 6: Table Of Contents
CONTENTS Features ...………..……………………………………... Controls ...……………………………………………….. Definitions of Controls ………………………………………………………………………………………. Installation ...……………………………………………... Wall Mounting ...…...……………………………………………... Message Waiting Feature …………………………………………………………………………………... Message Waiting Programming ……………………………………………………………………………. TouchLiteTM Feature Programming …………………………………………………………………….… Operation ...…………………………………………….….. Care and Maintenance ...……………………………………………... Service …………………………………………………..……………………………………….………… Warranty ...……………………………………………... -
Page 7: Features
FEATURES One Line Convenient Data Port No Battery Maintenance TouchLite One Touch Message Retrieval Feature Switch Selectable Message Waiting Tone Dialing 5 or 10 Secure Programming Speed Dial Memory Locations Programmable Flash Function (100mS, 600mS) Pause Function (3.6mS) Digital Handset Volume Control Redial Key Function (31 digits) (optional) Smart Port Programming (when available) 2-way Speakerphone Feature... -
Page 8: Controls
CONTROLS FIGURE 1 STORE LED SIE TYPE NEON LR1 LR2 FOR MESSAGES PRESS HERE REDIAL R ECALL... -
Page 9: Definitions Of Controls
Handset Clip ………………………………….. Handset ...…………..…………...…... Ringer Control ………….……….……………. Handset Jack ……………………………….… Handset Volume Control Dial Pad ………………………………….……. Redial/Pause Key …………………………….. Recall/(Flash) Key ……………...…………… TouchLite Message Waiting ………………. 10. Speed Dial Access Keys ………….…………. 11. Data Port ………………………………………. 12. Message Waiting Selector Switch 1 ………… 13. -
Page 10: Installation
(figure 3). 2. Plug one end of the straight modular telephone line cord into the line jack at the front of the base unit. 3. Plug the other end of the straight line cord directly into an appropriate telephone jack (figure 4). -
Page 11: Wall Mounting
HANDSET RETAINING HOOK A removable clip to hold the handset secure when in the wall mounted position is located below the hook switch. Remove the clip hook, turn it 180 degrees round and slot it back into place (figure 5). LABEL-IC M OUNTING LABEL-S/NO. -
Page 12: Message Waiting Feature
The programming is done prior to delivery and should only be changed by authorized personnel. When a Message Waiting (MW) signal is received from the PBX or your local telephone provider, the signal lights the red indicator located on the telephone. -
Page 13: Message Waiting Programming
Re-insert the overlay by aligning one side of the tabs on the overlay into the slots next bend the overlay in the middle and insert the remaining tabs on the other side. Message Waiting This telephone is standard equipped to support a number of message waiting systems. A selector switch is provided underneath the faceplate to select... -
Page 14: Touchlitetm Feature Programming
When the message-waiting lamp lights to notify the guest that a message is waiting. A simple press of the red TouchLite key connects the guest to the message center or front desk. TouchLite memory location to this telephone. Programming TouchLite 1. Lift the handset. -
Page 15: Operation
OPERATION PLACING A CALL USING THE HANDSET Lift the handset; the phone will select the line. Listen for dial tone and adjust the volume control if necessary. Dial out by using the numeric dial pad or by pressing the redial/pause button or by pressing a speed dial button. To end the call, place the handset on hook. - Page 16 This function may be required for accessing line features provided by your telephone system or local telephone company. NOTE: Each “Flash” function counts as 1 digit when stored into a speed dial memory location...
- Page 17 OPERATION FLASH OPTIONS (STANDARD PROGRAMMING) The EURO Series is pre-programmed with two standard flash options: 1. Option 1 is the programmable 100ms flash timing 2. Option 2 is the standard default of 600ms flash timing. To change the flash to option 2, the 600ms flash timing: 1.
- Page 18 Pause(s) can be programmed into the number pattern when speed dial programming memory. This function allows the user to delay the dialing pattern of a number. This function may be required for accessing line features provided by your telephone system or local telephone company.
- Page 19 Ringer Volume Control The Ringer Volume Control Switch is located on the right side of the telephone base. The switch has a setting option for Hi/Low. Note: The Ringer Volume Switch is factory set in the “Hi” position.
- Page 20 USING THE DATA PORT The EURO Series is equipped with a convenient port on the right side of the base unit. This modular receptacle is used to plug in any standard telephone device such as a computer modem, answering machine or fax machine.
-
Page 21: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 22: Service
Fax: www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 23: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. and TeleMatrix Equipment, LLC (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded prod- ucts manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products manufac- tured by TMX are free from defects in materials and workmanship for three (3) years, other than the following products for which the warranty period shall be one (1) year: handset batteries, either NiCd or NiMH, used in TMX cordless products.
