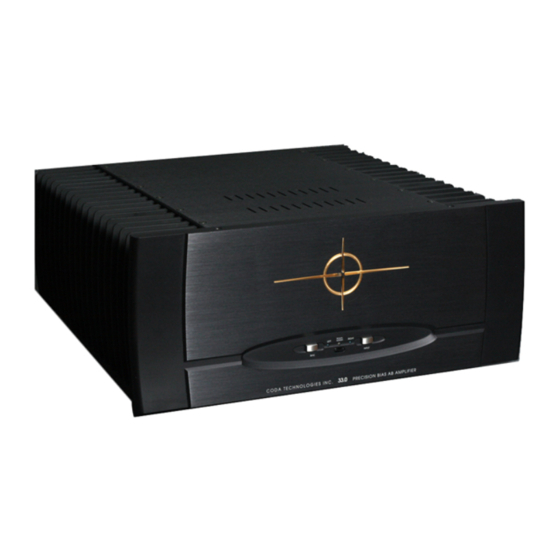

  • Page 1 AMPLIFIER 33.0 OPERATION MANUAL RCA/YL LEFT XLR/GN RIGHT BIAS INPUT 33.0 C O D A T E C H N O L O G I E S I N C . PRECISION BIAS AB AMPLIFIER SAFETY PRECAUTIONS INTRODUCTION INITIAL SETUP...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS CAUTION CAUTION WARNING WARNING CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL IS TO ALERT YOU OF THE PRESENCE OF UNINSULATED DANGER- OUS VOLTAGE WITHIN THE UNIT'S ENCLOSURE THAT MAY BE OF SUFFI- CIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.

  • Page 3: Introduction

    Although its operation is fairly simple, in order to operate your amplifier properly and to realize all of the capabilites of the 33.0 we recommend that you read this entire manual carefully.

  • Page 4: Initial Setup

    Connecting or disconnecting cables while the amplifier is powered on could cause damage to your speakers. The diagram below shows the default connections necessary to operate the 33.0 as a stereo amplifier. This is the simplest and most common mode of operation, and the quickest way to get started.

  • Page 5: Detailed Installation

    AC input, is set to the appropriate voltage for your country. When changing voltages, ensure that the power cable is disconnected from the amplifier. NOTE: If the fuse in your amplifier blows, contact a Coda dealer or call Coda directly before attempting to use the amplifier again.
  • Page 6 INPUT PRECISION BIAS CLASS A AMPLIFIER RCA/YL LEFT XLR/GN RIGHT 33.0 C O D A T E C H N O L O G I E S I N C . PRECISION BIAS AB AMPLIFIER BIAS INPUT 33.0 C O D A T E C H N O L O G I E S I N C .
  • Page 7 The 33.0 normally operates in stereo mode, providing a maximum output power of 330 watts Class AB (into an 8-ohm load) per channel. In bridged mode, both channels act as one amplifier providing a maximum output power of 660 watts.
  • Page 8 DETAILED INSTALLATION IV. BRIDGED SETUP DIAGRAM...
  • Page 9 Coda factory for reprogramming. If you are programming your remote for use with other devices and are unsure if you are going to interfere with Coda programming, contact us at the phone number or email address on the back of this manual.

  • Page 10: Design Philosophy

    The subtlety of the design process at this level of performance makes it impossible to easily explain all of the advantages inherent in the 33.0. However, we present here an overview to give you an understanding of some of its unique features and an idea of the listening experience you can expect.
  • Page 11 Coda. As with all high-power amplifiers, heat dissipation is important. The 33.0 uses six massive aluminum heat sinks without fans for efficient, noiseless, and clean thermal relief. The thermal coefficient of the 33.0 heat sinks is one of the lowest and most effective in the audio industry.
  • Page 12 DESIGN PHILOSOPHY II. Material Quality The amplifier’s chassis is made from machined aluminum. All exterior metal parts are anodized or powder coated for durability. Printed circuit boards are fiberglass epoxy with gold plating over a tin/nickel barrier. The gold layer will not corrode, while the barrier layer prevents the gold from migrating to the lower copper layer.

  • Page 13: Technical Data

    TECHNICAL DATA STEREO Rated Power: 330 Watts class AB @ 8 Ohms, 660 Watts class AB @ 4 Ohms Frequency Response: DC to -3dB @ 100kHz Distortion: < .02 percent from 10Hz to 20kHz @ rated power Gain: 26dB Maximum Current: >100 Amperes peak per channel Noise: -120dB referenced to rated output...

  • Page 14: Care And Handling

    CARE AND HANDLING The interior of the amplifier requires no special care. If exterior cleaning beyond simple dusting is required, any dilute ammonia-based product is recommended. Do not use any abrasive rags, cleaners or chemical solvents on the amplifier. When handling the amplifier, take care not to mar the faceplate. Aluminum is a medium hardness metal and can be scratched by harder tool steels, and the grained surface can be easily marred if the amplifier is set face-down on a hard surface.

  • Page 15: Warranty And Disclaimer

    Coda Technologies will provide for surface transportation to and for a period of ten years from date of original purchase. Coda Technologies, Inc. will from the factory for a period of one year from date of original purchase.

  • Page 16: Warranty Registration

    WARRANTY REGISTRATION Fill in this registration sheet and fax or mail it to Coda Technologies to ensure you are in our warranty system. This will facilitate warranty service should it become necessary. It is recommended that you retain a copy of this form for your own records.
  • Page 17 7850 CUCAMONGA AVENUE #34 SACRAMENTO, CA 95826 USA +01 916.383.3653 +01 916.455.3653 phone CODA.CC on the web at info@coda.cc email us at...
