DP-90 DIGITAL PIANO
USER'S MANUAL
00021545
Version 02/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Cantabile DP-90

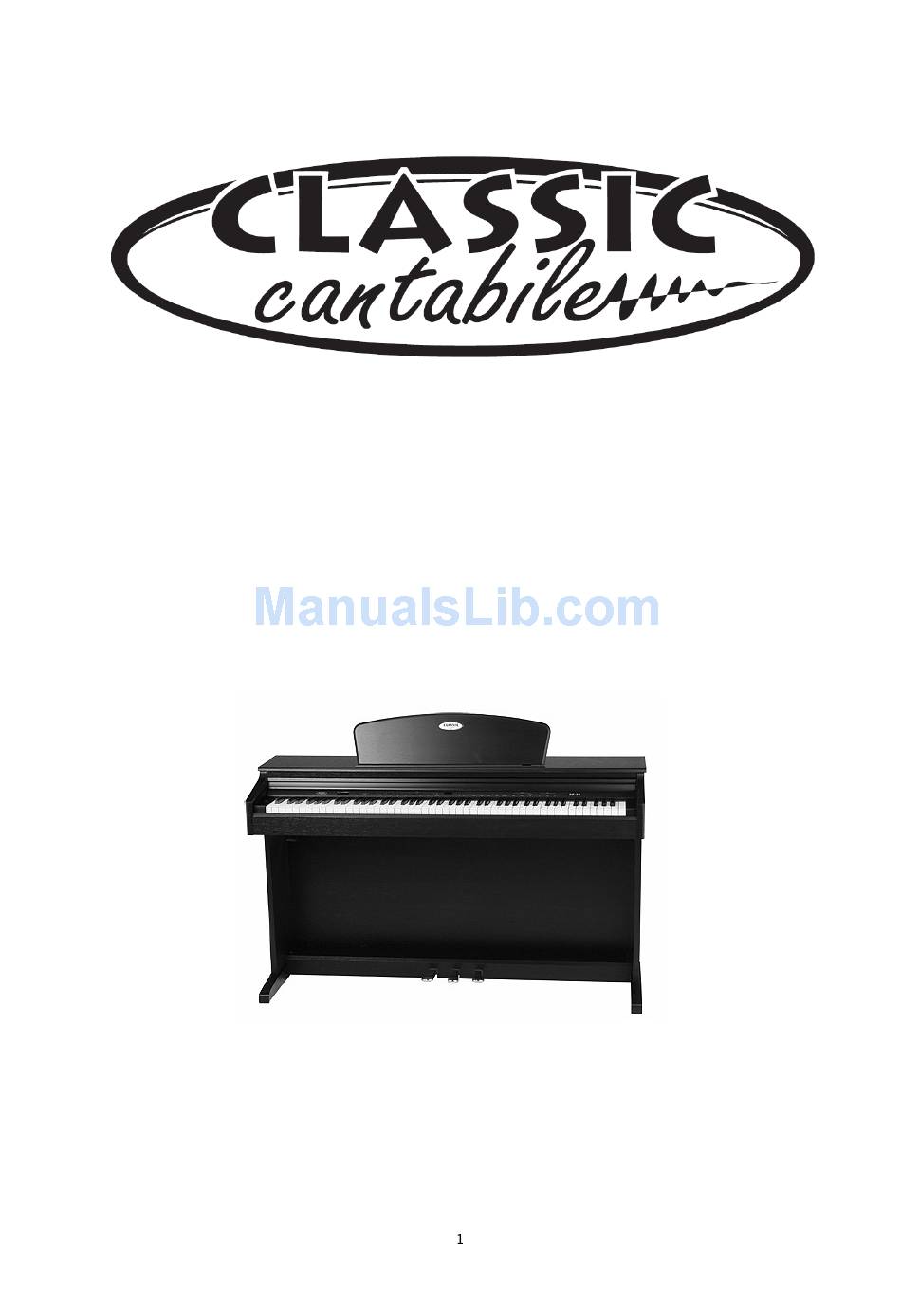

  • Page 1 DP-90 DIGITAL PIANO USER’S MANUAL 00021545 Version 02/2012...
  • Page 2 In order to fully appreciate all the impressive features of this digital piano, please take a few minutes to read the following pages of instruction. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK OR...
  • Page 3 SERVICE AND MODIFICATION This product should be serviced by qualified service personnel when, • the power supply cord or the plug has been damaged, • liquid has been spattered into the unit or it has been exposed to rain, • the instrument does not appear to operate normally or exhibits a marked change in performance.
  • Page 4: Table Of Contents

    CONTENTS TABLE INSTALLATION …………………………………………….……………..……………. CONTROL PANEL AND PEDAL ………………………………………..……………. 8 PREPARING FOR PLAY ……………………….………………………..……………. 9 DEMO SONGS …………..................10 VOICE …………………………................11 TRANSPOSE …………………................12 KEYBOARD MODE ……………………………………..………………..……………. 13 SOUND EFFECT ………..................14 METRONOME ………..................... 15 TEMPO ………………..................... 15 RECORD ………………………………………………………………..……………..
  • Page 5: Installation

    INSTALLATION Step 1: Install the pedal cross bar to the side board with the screw Step 2: Install the back board to the side board with the screw complete the stand assembly. Screw M6X20 (8) Tape screw 4X16 (4) Screw M4X15 (2) Tape Screw 4X12 (2) Headphone Holder (1)
  • Page 6: Headphone

    Step 3: Install the stand assembly to the piano body with the screw Step 4: Install the headphone holder ⑤ to the piano with the screw ④...
  • Page 7 Step 5: Plug the pedal cable to the socket on the piano bottom. Step 6: Place the piano in its final position, on the bottom the pedal board is a turn down knob. Turn the Pedal Brace Knob down to firmly touch the floor. Step 7: Locate the Power Cord and plug it into the Receptacle on the bottom of the Piano.
  • Page 8: Control Panel And Pedal

    CONTROL PANEL AND PEDAL FRONT CONTROL PANEL ▲,▼ Master Volume Voice Select Display Record Song Setup, Demo, Metro, Trans, Tempo Reverb, Chorus, Layer, Duet See detailed description of the control panel in the following chapters. POWER SWITCH - The power switch is located to the left of the keyboard. Press the button to turn the power on and off.
  • Page 9: Preparing For Play

    PREPARING FOR PLAY MASTER VOLUME Turn this knob to the right to increase the overall volume of the piano, and to the left to decrease the volume. Slide the knob to the middle position before turn on the power, M I N M AX M AST ER VOLUM E The Following Facilities Could be Set Up for Your Application:...
  • Page 10: Demo Songs

    DEMO SONGS There two types of demonstration song built-in the piano. THE PIANO piano has 10 Orchestra demonstration songs for your listening enjoyment. The voice demo presents selected voice with a short piece of music. VOICE DEMONSTRATION Press and hold down a voice select button then press the DEMO button, a piece of music will play with the voice selected.
  • Page 11: Voice

    VOICE When the piano is turned on, the LED display shows the voice number. The default voice setting is 01 Grade Piano. SELECT A SOUND There are 15 voices numbered 1-15 and selected by the voice quick select buttons and a VARIATION button.
  • Page 12: Transpose

    LAYER VOICE With layer mode, you can layer (or mix) two instrument sounds together. Press the LAYER button and its indicator lights up to engage the dual voice mode. The display shows the layered voice number (the default layered voice is strings). If press the LAYER button and a voice select button simultaneously, the layer voice mode is engaged as well but the LAYER indicator flashes.
  • Page 13: Keyboard Mode

    KEYBOARD MODE There are two modes of the keyboard: full keyboard and duet keyboard. FULL KEYBOARD The full keyboard is standard mode as shown below. DUET KEYBOARD The keyboard is spited to A2- E6 and F2 – C6 two sections. Two sections have the same voice (master voice) and volume.
  • Page 14: Sound Effect

    SOUND EFFECT REVERB Reverb simulates effect of playing in a big room or hall where the sound reverberates off the walls and ceiling. Press the REVERB button and its indicator lights up to engage the reverb effect. If press the REVERB button and ▲ or ▼ button simultaneously, the reverb effect is engaged as well but the REVERB indicator blinks and the display shows the current reverb level with the prefix “r”...
  • Page 15: Metronome

    METRONOME Press the METRONOME button; the built-in metronome will start to play with the current tempo and beat pattern. If press the METRONOME button and ▲ or ▼ button simultaneously, the metronome is engaged as well the display shows the current beat pattern (the default setting is 4/4).
  • Page 16: Record

    RECORD The Overture features a two track recorder that lets you record what you play on the keyboard and then play it back. Two tracks mean that you can “overdub” one part on top of another, using a different voice if you like. The recorder feature is a useful addition to any keyboard study program since it lets you hear exactly how you sound from the listener’s perspective.
  • Page 17 5. Stop Recording - Press the PLAY/STOP button, the REC button or the recording track button to stop recording. The REC indicator turns off and the recorded track indicator is lit solid to show the track now contains data. NOTE: When the record memory is full, recording will stop automatically and “FUL” will appear on the LED display.
  • Page 18: Play Along Songs

    PLAY ALONG SONGS There are 58 songs built into the Overture for your musical enjoyment. These songs have separate left and right-hand parts that can be turned on and off as required so you can practice the corresponding part on the keyboard. SELECTING A SONG Press the SONG button.
  • Page 19 4. Play the right-hand part of your selected song while the left-hand part plays. 5. Press the PLAY/STOP button again to stop. Otherwise, playback will stop automatically at the end of the song. PRACTICING THE LEFT HAND OF THE SELECTED SONG Follow steps 1-5 listed above, substituting the LEFT button whenever RIGHT button is mentioned.
  • Page 20: Function Mode

    FUNCTION MODE The Function Mode gives you access to other features on your piano. Press the SETUP button to enter the functionality setup mode. Press the SETUP button repeatedly to change the item to manipulate. Press the ▲,▼ button to select option or set value for the item.
  • Page 21 OCTAVE The octave shift function will transpose the entire piano one octave down or up. When entering this mode by pressing the SETUP button, The display shows “Oct”. Use the ▲,▼ button to set desired octave shift range is -2 to 2. The default setting is 0. SETUP VOLUME BALANCE The Volume Balance function will set volume balance between the master and second...
  • Page 22: Soft Reset

    STORE volatile. Normally, when turn on the power, all settings are default and user settings are the “Store” feature is engaged, when turn on the power, the latest user customized settings will be recalled which include: layer and duet voice, volume balance, touch mode, song number, sound effects setting etc.
  • Page 23: Midi

    MIDI MIDI (Musical Instrument Digital Interface) is a world-standard interface that enables electronic musical instruments and computers to communicate with each other so that instructions and other data can pass between them. This makes it possible to create a system of MIDI instruments and devices that offer far greater versatility and control than is available with isolated instruments.
  • Page 24: Appendix: Midi Application Chart

    MIDI APPLICATION CHART Function Transmitted Recognized Remark Basic Channel 1 CH 1 – 16 CH Channel changed 1 – 16 CH 1 – 16 CH Default mode Note number 11 – 118 0 – 127 Velocity Note On 9nV,V=0–127 9nV,V=0–127 Note Off 8nV,V=0–127 8nV,V=0–127...
