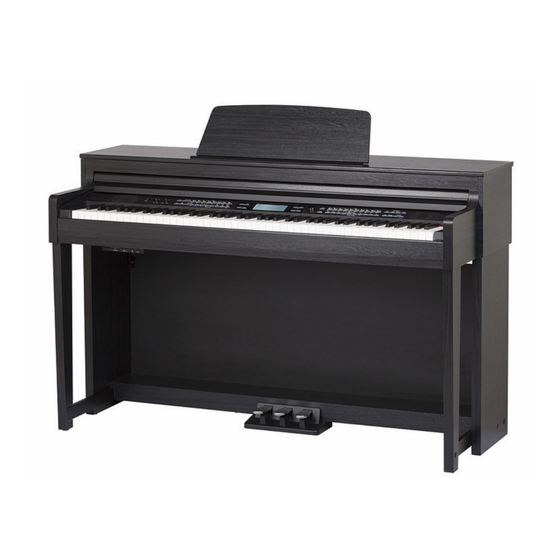

Digitalpiano DP-A 610
MIDI
User manual
ArtNr 00046813, 00046814
Version 03/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-A 610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Classic Cantabile DP-A 610

Summary of Contents for Classic Cantabile DP-A 610

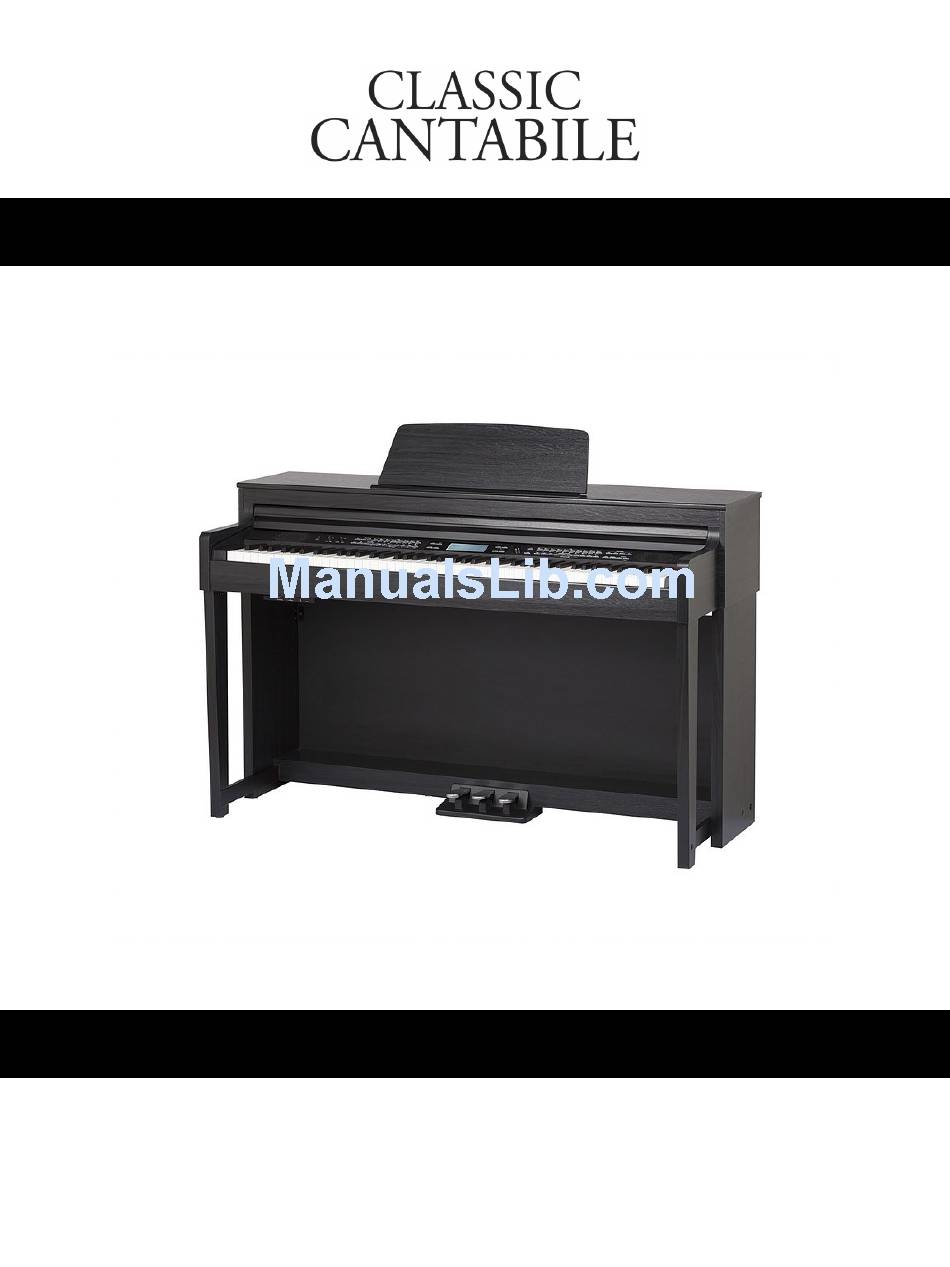

  • Page 1 Digitalpiano DP-A 610 MIDI User manual ArtNr 00046813, 00046814 Version 03/2017...
  • Page 2 aw_DP740K_Manual_G04_170522.pdf 2 17/5/22 13:29 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    aw_DP740K_Manual_G04_170522.pdf 3 17/5/22 13:29 Contents Setup Soft Pedal................24 Component Guide..............4 Freeze.................25 Setup Guide................4 Metronome Beat..............25 Fade Time................25 Panel & Display Description MIDI Out Channel...............25 Front Panel................7 Song Looping..............25 LCD Display................8 Auto Power Off..............25 System Time...............26 Connections................9 Bluetooth Auto Link..............26 Factory Reset..............26 Power Supply..............10 Performance Memory Adjusting the Master Volume...........10...

  • Page 4: Setup

    aw_DP740K_Manual_G04_170522.pdf 4 17/5/22 13:29 Setup This section contains information about setting up your instrument and preparing to play. Please read through this section carefully before turning the power on. Component Guide Check that all the parts listed below are included before proceeding to the Setup Guide. Setup Guide To assemble the stand, you will need a Phillip's screwdriver (not supplied).
  • Page 5 aw_DP740K_Manual_G04_170522.pdf 5 17/5/22 13:29 Setup A. Put the “pedal box” between the “left and right stand components.” Use “Screws 6x50PA (4pcs)” to stablize the “left and right stand components” onto to the pedal assembly, then cover with “Screw caps (6pcs)”, as shown in the picture.
  • Page 6 aw_DP740K_Manual_G04_170522.pdf 6 17/5/22 13:29 Setup D. Connect the “pedal cable” to the pedal jack at the bottom rear of the Piano. Then connect the power cable to the power jack, and plug the other end into an AC outlet. At this point the Piano is fully assembled and you can turn on the power. AC power adaptor...

  • Page 7: Panel & Display Description

    aw_DP740K_Manual_G04_170522.pdf 7 17/5/22 13:29 Panel & Display Description Front Panel 1. [POWER] Switch 13. [MAIN C] Button Turn the power on or off. In style mode: play the Main pattern C. In song mode: play all songs in a loop. 2.

  • Page 8: Lcd Display

    aw_DP740K_Manual_G04_170522.pdf 8 17/5/22 13:29 Panel & Display Description 26. Data Dial 32. VOICE Select Buttons 37. [LOWER] Button Adjust the parameters. Directly select a preset voice. Press it to turn the Lower function Press a button once to select the first on or off.

  • Page 9: Connections

    aw_DP740K_Manual_G04_170522.pdf 9 17/5/22 13:29 Connections 1. USB Jack 4. DC IN Jack Use a standard USB cable to connect the USB jack of the Connect the specified power adaptor. instrument to the USB port of a computer. With USB, you can save a keyboard performance to the computer or use 5.

  • Page 10: Power Supply

    aw_DP740K_Manual_G04_170522.pdf 10 17/5/22 13:29 Power Supply Before connecting the power supply, please set the [POWER] switch to “OFF” and set the master volume level to minimum. Connect the power adaptor to the DC IN jack on the rear panel. Plug the power adaptor into an appropriate AC outlet. Press the [POWER] switch.

  • Page 11: Playing The Demos

    aw_DP740K_Manual_G04_170522.pdf 11 17/5/22 13:29 Playing the Demos The instrument features several professional demos. Please refer to the Demo List for details. Start playing the demo. Press the [DEMO] button to enter Demo mode and start playing the demos in a continuous loop. The LCD shows the current demo number and name.

  • Page 12: Playing Two Voices Simultaneously

    aw_DP740K_Manual_G04_170522.pdf 12 17/5/22 13:29 Playing the Voices Playing Two Voices Simultaneously The Dual function allows two different voices to be layered together, creating a more full and rich sound. Turn this function on and select a voice for the dual voice "R2". Turn on the dual function.

  • Page 13: Transpose

    aw_DP740K_Manual_G04_170522.pdf 13 17/5/22 13:29 Playing the Voices Lower Split The key that splits the keyboard into the left and right hand areas is called "Lower Split". The default lower split is F#3 (34), however, you can assign it to any other key. Please refer to the Function Menu for details. Notes: 1.

  • Page 14: Cm Twinova

    aw_DP740K_Manual_G04_170522.pdf 14 17/5/22 13:29 Twinova The Twinova function splits the keyboard into two areas with the same pitch and voice, for the convenience of playing together with a friend or instructor. Turn on the Twinova function. Press the [TWINOVA] button to turn on the function. The default split point is E3.

  • Page 15: Auto Accompaniment

    aw_DP740K_Manual_G04_170522.pdf 15 17/5/22 13:29 Auto Accompaniment The auto accompaniment function puts a full backing band at your fingertips. All you have to do is to play chords with your left hand, and the accompaniment will automatically play along, following the chords you play.

  • Page 16: Accompaniment Variations

    aw_DP740K_Manual_G04_170522.pdf 16 17/5/22 13:29 Auto Accompaniment Accompaniment Variations Specially created variation patterns can be added into the accompani- ment, making your performance more professional and personalized. INTRO The Intro is the opening section of a song. When the Intro pattern is finished, it will automatically shift to the selected Main section.

  • Page 17: Adjusting The Tempo

    aw_DP740K_Manual_G04_170522.pdf 17 17/5/22 13:29 Auto Accompaniment Single Finger Single-finger makes it easy to produce major, seventh, minor and minor seventh chords by pressing a minimum number of keys on the auto accompaniment section. Multi-finger Multi-finger allows you to play chords in normal fingering. Try playing the 32 types of C chords listed on the right.

  • Page 18: One Touch Setting

    aw_DP740K_Manual_G04_170522.pdf 18 17/5/22 13:29 Auto Accompaniment One Touch Setting When One Touch Setting is switched on, you can instantly recall all auto accompaniment related settings including voice selection and digital effects, all with the single touch of a button. Turn on the One Touch Setting function. Press the [O.T.S.] button to turn on the function.

  • Page 19: Mixer

    aw_DP740K_Manual_G04_170522.pdf 19 17/5/22 13:29 Mixer The Mixer function allows you to separately adjust the volume of each track, so as to keep an appropriate volume balance. Enter the Mixer menu. Press the [MIXER] button to enter the Mixer menu. The LCD shows the current parameter.

  • Page 20: Dsp Effect

    aw_DP740K_Manual_G04_170522.pdf 20 17/5/22 13:29 DSP Effect The DSP effects will add ambiance and depth to your performance in a variety of ways. They can be set to simulate sound from a real environment, making your tone more crystal and strong, or even give you distortion for a rougher edge.

  • Page 21: Harmony

    aw_DP740K_Manual_G04_170522.pdf 21 17/5/22 13:29 Harmony The harmony function will automatically add harmony effect to the notes you play in the right hand area, enriching your performance with more harmonic expression. Playing with Harmony Press the [HARMONY] button to turn on the function. The button LED lights up.

  • Page 22: Function Menu

    aw_DP740K_Manual_G04_170522.pdf 22 17/5/22 13:29 Function Menu Enter the function menu. Press the [FUNCTION] button to enter the function menu. The LCD shows the current parameter. Adjust the settings. Use the data dial to select a parameter. Use the [+/YES]/[-/NO] buttons to change the setting of the selected item. Press [+/YES] and [-/NO] at the same time to restore the default setting.

  • Page 23: Tune

    aw_DP740K_Manual_G04_170522.pdf 23 17/5/22 13:29 Function Menu Tune This function adjusts the pitch of the entire keyboard in 2-cent incre- ments over a range of ±50 (100 cents). In the function menu, use the data dial to select “TUNE”. Use the [+/YES]/[-/NO] buttons to change the tune value. Octave This function will shift the pitch of the specified voice layer up or down by one octave.

  • Page 24: Harmony Type

    aw_DP740K_Manual_G04_170522.pdf 24 17/5/22 13:29 Function Menu Harmony Type In the function menu, use the data dial to select “HARMONY”. Use the [+/Yes]/[-/No] buttons to select a harmony type. Detailed harmony types: Harmony Type LCD Display Duet Duet Trio Trio Octave Octave Country Duet CountryDuet...

  • Page 25: Freeze

    aw_DP740K_Manual_G04_170522.pdf 25 17/5/22 13:29 Function Menu Freeze When Freeze function is in use, the selected parameter setting will remain unchanged when a performance memory is recalled. In the function menu, use the data dial to select “FREEZE”. Use the [+/YES]/[-/NO] buttons to select a parameter. Note: The setting will be usable only when Freeze function is in use.

  • Page 26: System Time

    aw_DP740K_Manual_G04_170522.pdf 26 17/5/22 13:29 Function Menu System Time You may want to set the correct system time, as it will appear on files saved to a USB flash drive and other applications. In the function menu, use the data dial to select “YEAR” / “MONTH”...

  • Page 27: Performance Memory

    aw_DP740K_Manual_G04_170522.pdf 27 17/5/22 13:29 Performance Memory This function is designed to make your performance easy and efficient. It allows you to save virtually all panel settings to a single performance memory for instant recall. Note: To reset the performance memory to factory default, press and hold both the [STORE] and [M1] buttons, then turn on the power.

  • Page 28: Song Recording

    aw_DP740K_Manual_G04_170522.pdf 28 17/5/22 13:29 Song Recording You can record your performance in two ways: MIDI recording and Audio recording. MIDI Recording In MIDI recording, you can record and save your keyboard performance as a user song on the instrument. You can then play it back and save it to a USB flash drive.

  • Page 29: Audio Recording

    aw_DP740K_Manual_G04_170522.pdf 29 17/5/22 13:29 Song Recording Parameter LCD Display Range Record Type Setting Record Type: MIDI, MP3 MIDI Recording Channel 1 Ch1:R1 On, Off Ch2:R2 MIDI Recording Channel 2 On, Off MIDI Recording Channel 3 Ch3:L On, Off MIDI Recording Channel 4 Ch4:MIDI Ch4 On, Off MIDI Recording Channel 5...

  • Page 30: Song

    aw_DP740K_Manual_G04_170522.pdf 30 17/5/22 13:29 Song The instrument features several complete piano songs. Please refer to the Song List for details. Play the Songs Press the [SONG] button to enter Song mode. The LCD shows the current song number and name. Use the data dial or [+/YES]/[-/NO] buttons to select a desired song.

  • Page 31: Bluetooth

    aw_DP740K_Manual_G04_170522.pdf 31 17/5/22 13:29 Bluetooth Bluetooth Pairing The Bluetooth function is turned on by default, with details as below: Bluetooth Name: PIANO-AUDIO. You can pair the instrument with an external mobile device. After it is paired, the instrument will remember that device and automatically pair it when the mobile device is within range.

  • Page 32: Connecting Usb Flash Drive

    aw_DP740K_Manual_G04_170522.pdf 32 17/5/22 13:29 Connecting USB Flash Drive The instrument recognizes USB flash drives (32M to 128G) in FAT32 format. It does not support multi-partitioned USB flash drives. We recommend formatting the USB flash drive on the instrument before using. Note: A USB flash drive in FAT32 format supports up to 512 files under its root directory.

  • Page 33: Midi

    aw_DP740K_Manual_G04_170522.pdf 33 17/5/22 13:29 MIDI The MIDI function will expand your musical possibilities. What's MIDI? MIDI (short for Musical Instrument Digital Interface) allows a wide variety of electronic musical instruments, computers and other related devices to connect and communicate with one another. MIDI carries event messages that specify notation, pitch and velocity, controls signals for parameters such as volume, vibrato, audio panning, and programs change information to change the voice selections.

  • Page 34: Specifications

    aw_DP740K_Manual_G04_170522.pdf 34 17/5/22 13:29 Specifications Keyboard & Display Keyboard 88 Graded Hammer-Action Keys with Triple Sensors Touch Response 6 types, Off Display Multi-functional LCD Voices Polyphony (max.) Voices 1200 panel, 13 drum kits Layer Left, Right1, Right2 Split Duo (Twinova) Styles Styles 270 presets...
  • Page 35 aw_DP740K_Manual_G04_170522.pdf 35 17/5/22 13:29 Specifications Connections Interaction & Expansion USB MIDI, USB Audio, Bluetooth External Drive USB flash drive (128G max) Microphone YES (Mic effect:12 types) Phones 2 Standard Stereo Pedals Sustain, Soft, Sostenuto MIDI In, Out USB Audio & MIDI Input Standard Stereo Output...

  • Page 36: Voice List

    aw_DP740K_Manual_G04_170522.pdf 36 17/5/22 13:29 Voice List Voice Name LCD Name Clavi 1 Clavi 1 Piano Wah Clavi 1 Wah Clavi 1 Acoustic Grand Piano 1 Grand Piano 1 Clavi 2 Clavi 2 Acoustic Grand Piano 2 Grand Piano 2 Wah Clavi 2 Wah Clavi 2 Bright Acoustic Piano (wide) 1 Bright Pno/Wide 1...
  • Page 37 aw_DP740K_Manual_G04_170522.pdf 37 17/5/22 13:29 Voice List Vintage Organ 2 Vintage Org 2 Chorus Accordion Chorus Accordion Detuned Church Organ 2 Det Church Org 2 Accordion 2 Accordion 2 Mellow Organ 1 Mellow Org 1 Accord It Solo 2 Accord It Solo 2 Mellow Organ 2 Mellow Org 2 Harmonica 1...
  • Page 38 aw_DP740K_Manual_G04_170522.pdf 38 17/5/22 13:29 Voice List Folk Guitar Folk Guitar Dark Overdrive Guitar Dark Over Gt Chorus Guitar 1 Chorus Guitar 1 Bright Overdrive Guitar Bright Over Gt Muted Guitar 1 Muted Guitar 1 Soft Overdrive Guitar Soft Over Gt Pedal Guitar Pedal Guitar Delay Overdrive Guitar...
  • Page 39 aw_DP740K_Manual_G04_170522.pdf 39 17/5/22 13:29 Voice List Rock Bass 2 Rock Bass 2 Arco Strings 1 Arco Strings 1 Bright Fretless Bass Brt Fret Bass String Ensembles 1 Str Ensembles 1 Overdriven Fretless Bass Over Fret Bass Choir Aahs 1 Choir Aahs 1 Distortion Fretless Bass Dist Fret Bass Voice Oohs...
  • Page 40 aw_DP740K_Manual_G04_170522.pdf 40 17/5/22 13:29 Voice List Aah & Contrabass Aah & Contrabass Tuba & Trombone Tuba & Trombone Harp & Contrabass Harp & Contrbs Soprano Sax & Trombone Sp Sax & Trb Dark Tremolo Strings Dark Trem Str Alto Sax & Trombone Alto Sax &...
  • Page 41 aw_DP740K_Manual_G04_170522.pdf 41 17/5/22 13:29 Voice List Brassband 2 Brassband 2 Bassoon Bassoon Brass Section 3 Brass Section 3 Sweet Flute Sweet Flute Dark Brass 1 Dark Brass 1 Piccolo Piccolo Synth Brass 1 Synth Brass 1 Clarinet & Sax Clarinet & Sax Bright Brass Section 1 Bright Brass 1 Sweet Pan Flute...
  • Page 42 aw_DP740K_Manual_G04_170522.pdf 42 17/5/22 13:29 Voice List Oboe & Ocarina Oboe & Ocarina Bright Hop Lead Bright Hop Lead BlowBott & Ocari Blown Bottle & Ocarina Wah Hop Lead Wah Hop Lead Shaku & Ocari Shakuhachi & Ocarina TremoloBauble Lead TreBauble Lead Lead &...
  • Page 43 aw_DP740K_Manual_G04_170522.pdf 43 17/5/22 13:29 Voice List Bright Bass Lead 2 Bright Bass Ld 2 Pan Pad 3 Pan Pad 3 Wah Bass Lead Wah Bass Ld New Age Pad 4 New Age Pad 4 Bright Delayed Lead Bright Delay Ld Itopia Pad 1 Itopia Pad 1 Soft Cry Eyes 1...
  • Page 44 aw_DP740K_Manual_G04_170522.pdf 44 17/5/22 13:29 Voice List Soft Bowed Pad 2 Soft Bowed Pad 2 Starship Starship Bright Metal Pad 1 Brt Metal Pd 1 Burst Noise Burst Noise Soft Metal Pad Soft Metal Pad Applause Applause Wah Metal Pad Wah Metal Pad Laughing Laughing Space Voice Metal Pad...
  • Page 45 aw_DP740K_Manual_G04_170522.pdf 45 17/5/22 13:29 Voice List Rhythm Box Tom Rhythm Box Tom 1052 Percussive Organ Percussive Organ Electric Drum Electric Drum 1053 Detuned Percussive Organ Detuned PercOrgan Reverse Cymbal Reverse Cymbal 1054 Percussive Organ 2 Percussive Organ 2 Standard Set 1 Standard Set 1 1055 Rock Organ...
  • Page 46 aw_DP740K_Manual_G04_170522.pdf 46 17/5/22 13:29 Voice List 1108 Cello Cello 1163 Blown Bottle Blown Bottle 1109 Contrabass Contrabass 1164 Shakuhachi Shakuhachi 1110 Tremolo Strings Tremolo Strings 1165 Whistle Whistle 1111 Pizzicato Strings Pizzicato Str 1166 Ocarina Ocarina 1112 Orchestral Harp Orchestral Harp 1167 FX 1 (rain) FX 1 Rain...

  • Page 47: Style List

    aw_DP740K_Manual_G04_170522.pdf 47 17/5/22 13:29 Style List Style Name Old Rock 8BEAT & 16BEAT Easy Rock 8Beat Pop 1 New Shuffle Pop Rock 1 Rock Hip Hop 8Beat Rock Rock&Roll 1 8Beat Ballad Rock Shuffle Pop Jazz Rock&Roll 2 8Beat 1 POP &...
  • Page 48 aw_DP740K_Manual_G04_170522.pdf 48 17/5/22 13:29 Style List Cha Cha 1 Gospel Swing Tikitikita Cha Cha 2 Piano Jazz Lambada Beguine 1 Smooth Jazz Pop Cha Cha 1 Beguine 2 Smooth Operator Pop Cha Cha 2 Rumba 1 Latin Jazz 1 Salsa 2 Samba 1 Big Band WALTZ &...

  • Page 49: Song List

    aw_DP740K_Manual_G04_170522.pdf 49 17/5/22 13:29 Song List English Name LCD Name Minuet In D Major Minuet in D Major FOLK & COUNTRY Inquietude Inquietude Red River Valley Red River Valley Italian Polka Italian Polka Troika Troika Moment Musical Moment Musical Oh! Susanna! Oh! Susanna! Prelude In C-Sharp Major Prelude in C-Sharp Maj...

  • Page 50: Chord List

    aw_DP740K_Manual_G04_170522.pdf 50 17/5/22 13:29 Chord List...

  • Page 51: Midi Implementation Chart

    aw_DP740K_Manual_G04_170522.pdf 51 17/5/22 13:29 MIDI Implementation Chart...
  • Page 52 WEEE-Declaration / Disposal Your product is designed and manufactured with materials and components of high quality, which are recyclable and can be reused. The symbol means that your product should be disposed of separately from household waste when it reaches its end of life. Please dispose of this equipment at your local collection point or recycling center.
