Summary of Contents for Classic Cantabile SP-10

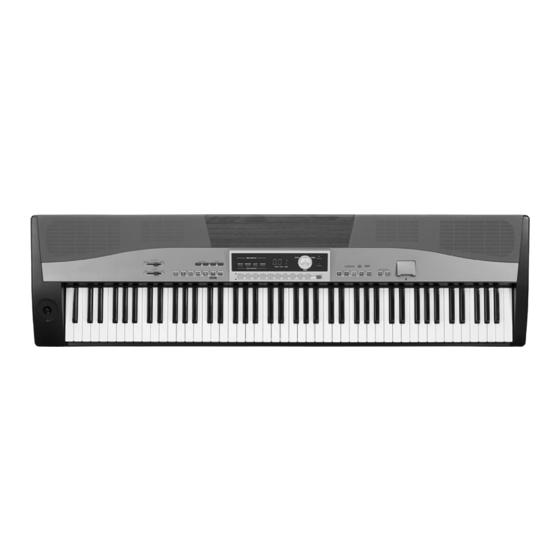

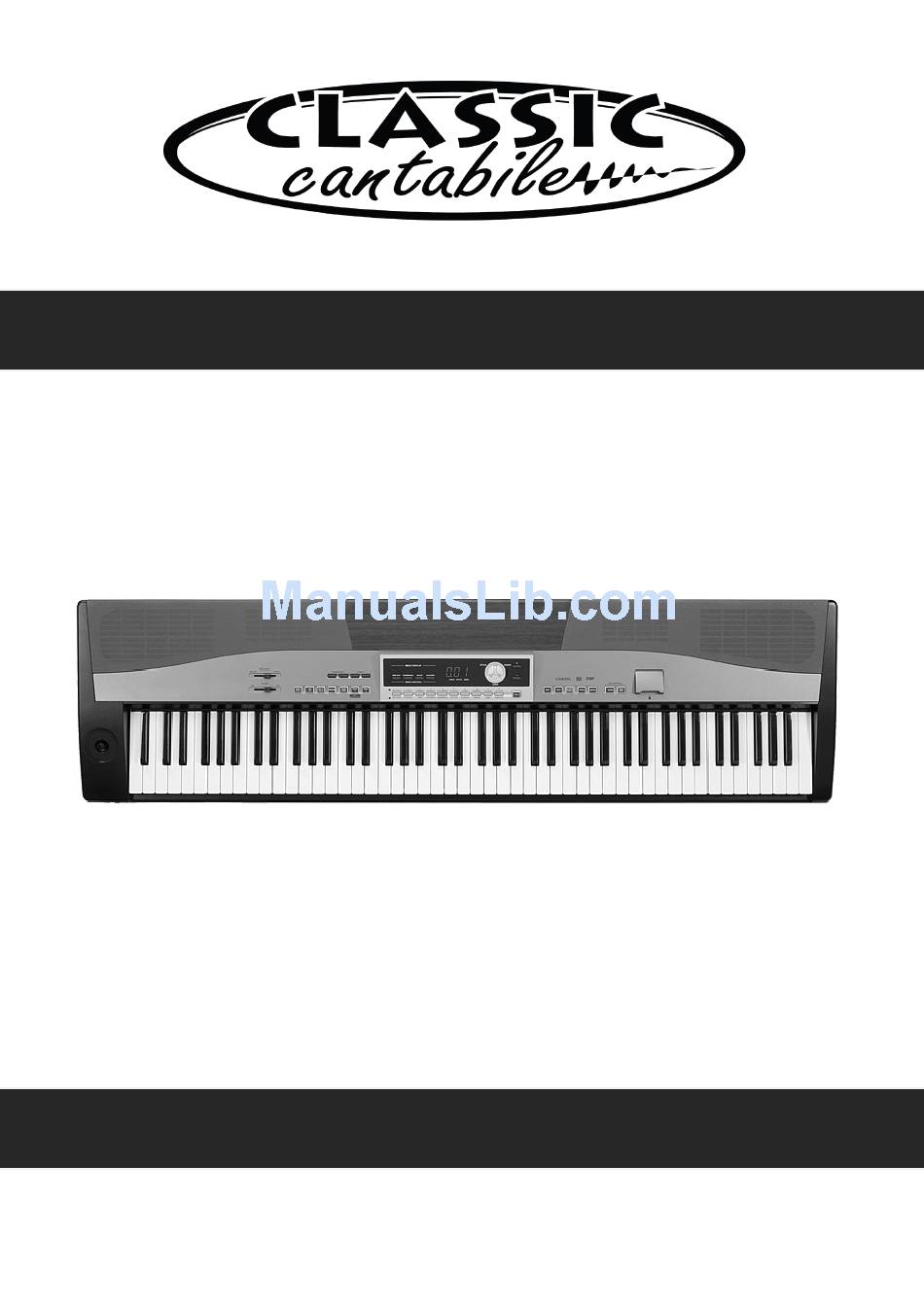

- Page 1 Classic Cantabile SP-10 Stage Piano Users manual 00016470 Version 01/2012...
- Page 2 Using the Instruction Manual Congratulations on your purchase of this stage piano! The piano is an user friendly piano with fabulous sound quality and advance feature such as scale practise and MIDI controller. No matter you are adult or children, you will enjoy playing the piano as it provides amazing styles for accompaniment, expressive tones, and real time record.
-
Page 3: Table Of Contents
Conent Main Feature General Guide Control Panel The Connectors - Power Jack - Headphones Jack - AUX OUTJack - Sustain/Soft Jack - MIDI IN/OUT Jack Operation 9-19 - Power on & Master Volume - Song - Voices and Effects - Metronome - Style Control 15-16 - Record... -
Page 4: Main Feature
Main Feature Note: 1. Pressing "+" and "-" together when turning on the piano will put all volume back to default setting. 2. " ": There is a standard SD external Interface which supports the cards of 16M 2G capacity. It is compatible with the file system format of the FAT 16 / 32 only... -
Page 5: General Guide
General Guide Top View AUX OUT AUX IN PEDAL MIDI IN MIDI OUT L/MONO SUSTAIN SOFT Rear View AUX OUT AUX IN PEDAL MIDI IN MIDI OUT L/MONO SUSTAIN SOFT CONTROL PANEL AUX OUT R MUSIC STAND AUX IN HEADPHONES JACKS SUSTAIN PEDAL JACK PIANO KEYBOARD SOFT PEDAL JACK... -
Page 6: Control Panel
Control Panel 14 15 16 4 5 6 9 10 POWER SWITCH STYLE BRILLANCE VOICE MASTER VOLUME + & - START/STOP VOICE DIRECT SELECT BUTTONS ACC.VOL LED DISPLAY( VOICE, STYLE, SONG) FILL A/FILL B SONG RECORD SCALE PLAY/STOP DUAL TRACK 1/SONG MELODY OFF SPLIT TRACK 2 REVERB/CHORUS... -
Page 7: The Connectors
Power Jack This piano can be powered from a standard household AUX OUT AUX IN PEDAL MIDI IN MIDI OUT wall outlet by using the specified AC adaptor. The power jack is located on the rear panel of the piano L/MONO SUSTAIN SOFT... -
Page 8: Sustain/Soft Jack
AUX IN Jack AUX OUT AUX IN PEDAL MIDI IN MIDI OUT The audio output from a CD player/iPod connected to the AUX IN jack on the rear panel can be mixed with the sound of the piano brain. This function is convenient L/MONO SUSTAIN SOFT... -
Page 9: Operation
Power on & Master Volume Press the [POWER] switch. The LED display lightens VOICE STYLE SONG Slide the [VOLUME] bar rightwards, the whole volume Press the power switch on increase, slide it leftwards, the whole volume decreases. VOLUME Press the [+] and the [-] button synchronously, and then power on the piano. -
Page 10: Voices And Effects
SELECT a song: Use the [+] or [-] button to select the song you want. If you select the new song, LED will display it's number at first and then display introductory beat and the measure count. VOICE STYLE SONG Select a song The beat LED indicators are lightened in turn. - Page 11 Dual The piano has dual voice. You can create the new sound through this function for richer and punchier sounds. you can get two different sounds at the same time when pressing one key in the right area in the keyboard.
- Page 12 Transpose You can change the pitch of the entire keyboard by semitone steps with TRANSPOSE function. - TRANSPOSE + TEMPO Press the [TRANSPOSE +] or [TRANSPOSE -] button for the first time, LED displays current transpose value VOICE STYLE SONG temporarily.
- Page 13 Reverb/Chorus Reverb/chorus effect will enhances the piano with fuller and expressive sound. When power is on , the Reverb/chorus indicator is on. VOICE STYLE SONG Press the [REVERB/CHORUS] button to switch the Display touch DSP response setting. value on the LED VOICE STYLE SONG Press [REVERB/CHORUS] repeatedly to switch to reverb or chorus setting mode.
- Page 14 Scale This function allows you to experience different scales when you play certain genres of music that is not comp- osed based on twelve equal interval. VOICE STYLE SONG Enter scale mode and Display scale type. Press [SCALE] button to enter into scale mode and the the indicator lights up.
-
Page 15: Metronome
Metronome Press the [METRO] button to turn on the metronome and the metronome sound will be played. Press the button again to turn off the metronome. The LED indicator is lightened. When the style stops to play, the beat type follows 4/4 Metronome can be turned on after turning on the metronome. - Page 16 Style is not playing: FILL IN A/B START START /STOP /STOP In NORMAL mode, press the [Fill A / Fill B] button to insert 1 measure fill and the Fill A / Fill B indicator is flashing, after one measure is over, VARIATION Preset style mode is NORMAL Press and enter VARIATION Style will be returned.
-
Page 17: Record
Record NOTE: The recorded data will not be lost when you turn off the There is one user song can be recorded, include power. 2 Melody Tracks. Hold on the [+] and [-] button together and power on the piano, it will erase all the recorded data. -
Page 18: Lesson
Playback Song Press the [PLAY/STOP] button for the first time to playback the record data, you can choose any one track or all two tracks to play, the indicator is on. Enter the record playback Then, select the track, mode, the indicator is on. the indicator is on. -
Page 19: Sd Function
SD card function PLAY can play midi file at the root directory in SD, support format 0 and format 1. Play midi file at the root directory in SD. Save the recorded data to SD root STORE can save the recorded data to SD root directory directory as midi file. -
Page 20: Midi
Midi Controler Summarize Under MIDI controller mode, other buttons all have no effect except four MIDI controller, [+]/[-] numeric button, the VOICE/STYLE/SONG button. When power on the piano, press one of [COMMAND], [VALUE], [CHANNEL] [MIDIOUT] MIDI controller to enter into MIDI controller mode. -
Page 21: Command
Command When the button is pressed, the indicator of the button lighter. The LED display 001 (default command), you can select MIDI CTRL information by the numeric button , the [ + ] button or the [ - ] button and VOICE STYLE SONG XXX, will displayed on LED. -
Page 22: Channel
In COMMAND mode, press the [VALUE]/ [CHANNEL] button to enter into VALUE and CHANNEL setting mode, corresponding button indicator turn on, the COMMAND indicator go off. If you press the [MIDIOUT] button, it will enter into midiout mode and send out midi control message. -
Page 23: Value
Value Press this button to enter into VALUE setting mode, the indicator is on, the LED will show the default VALUE as 064. VOICE STYLE SONG Use the [ + ] button, the [ - ] button or numeric button to set VALUE value from 0 127. -
Page 24: What Is Midi
What is MIDI AUX OUT AUX IN PEDAL MIDI IN MIDI OUT Musical Instrument Digital Interface. The standard interface between PC and Electronic instrument. L/MONO SUSTAIN SOFT It is equipped with standard MIDI interface, including 1 MIDI IN and 1 MIDI OUT. Connection MIDI IN/OUT It can connect with PC or other MIDI equipment. -
Page 25: Specifications
Specifications Keyboard 88 keys, 3 kinds of touch level. Voice 20 voices. Style 20 piano styles. 60 songs. Song Display LED display. Switch and Buttons POWER SWITCH, VOLUME SWITCH, DUAL, REVERB/CHORUS, TOUCH, RECORD, TRACK 1, TRACK 2, PLAY/STOP, SPLIT, METRO, TRANSPOSE +/-, TEMPO +/-, SD CONTROL, SONG, VOICE, STYLE, BRILLIANCE,MIDIOUT,COMMAND,VALUE, CHANNEL,SCALE, START/STOP, ACC VOL, FILL A/FILL B... -
Page 26: Voice List
Appendix 1 - Voice List BANK Name of Voice Name of Voice on Panel Acoustic Grand Piano GRDPIANO Epiano1 EPIANO1 Harpsichord HARPSICD Hammond Organ DRAWBAR Accordion ACORDION Steel Guitar STGUITAR String STRING Trumpet TRUMPET Folk Sax FOLK SAX Jazz Flute JZ.FLUTE Bright Acoustic Piano BRTPIANO... -
Page 27: Song List
Appendix 3 - Song List Name of Song Name of Song Piano Five Hundred Miles Happy New Year For Alice It`S Beginning To Look A Lot Like Christmas Habanera Jeanie With The Light Brown Hair Four Little Swans My Bonnie Moseta Dance Song Of The Pearlfisher Germanic Dance... -
Page 28: Midi Implementation Chart
MIDI Implementation Chart Transmitted Recognized Function Remarks 1-16ch Basic Default Channel Changed 1-16ch 1-16ch Default Mode Messages *********** Altered Note 09-120 0-127 Number : True voice *********** 0-127 Velocity : Note on 9nH,V=1 -127 Note off 9nH,V=1 - 127 (9nH,V=0; 9nH,V=0 8nH,V=0 - 127) After... - Page 29 MIDI Implementation Chart :LOCAL ON/OFF :ALL NOTES OFF Messages :Active sense :Reset When the accompaniment is started, an FAH message is transmitted. When accompaniment is stoped, an FCH message is transmitted. When an FAH message is received, accompaniment is started. When an FCH message is received, accompaniment is stoped.
