Thank you for using the Stairville DJLase series laser projector. For the
sake of safety and better operation of this projector, please read this manual
carefully before use and operate the projector , lest incur any personal injury
or damage to the projector.
Please check the local Laser assignments in your country
before starting the Laser Show!!!
Advertisement
Table of Contents
Related Manuals for Stairville DJLase150-RGY DMX
Summary of Contents for Stairville DJLase150-RGY DMX
-
Page 1: User Manual
150-RGY User Manual Thank you for using the Stairville DJLase series laser projector. For the sake of safety and better operation of this projector, please read this manual carefully before use and operate the projector , lest incur any personal injury or damage to the projector. -
Page 2: Product Introduction

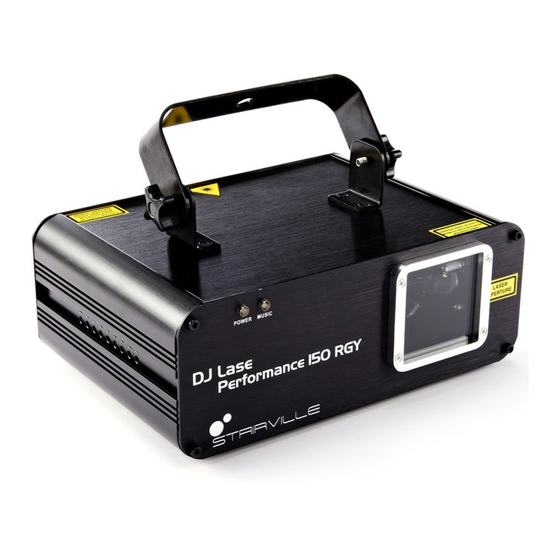

Product Introduction: ● Stairville DJLase 150 RGY DMX laser performer uses the latest muti-patterns laser control system researched and developed by ourselves. It can control four different patterns with various effects simultaneously. It adopts the latest appearance design to make it compact and light. The housing uses the imported paint. - Page 3 DMX-512, music active, automatic run, master & slave Cool system: Operating environment: indoor ● Channel `s function Stairville DJLase 150 RGY DMX use international standard DMX-512 signal control, with 16 channels, as the below detailed descriptions : DMX-512 Value 0 Channel Descriptions...
- Page 4 Rotation angle adjustment the 15CH 1~127 CH7 Rotation effect adjustment speed 128~191 Counter-clockwise rotation 192~255 Clockwise rotation CH8 Vertical turning Vertical rotation linearity adjustment 15CH 1~127 adjustment speed 128~255 Vertical rotation speed adjustment CH9 H o r i z o n t a l H o r i z o n t a l r o t a t i o n l i n e a r i t y 1~127 turning...
- Page 5 Signal Connection and Address Code Dialing When the controller outputs the standard DMX512 signal, the connection of which is accomplished through the “input” and “output” 3-pin XLR socket. When a console signal outputs to the unit, it must correspond to the Pin 1 Ground, Pin 2 Negative and Pin 3 Positive of the XLR socket on the unit. If it does not work just try exchanging the Pin 2 and Pin 3 (these 2 pins are generally do not need exchanged for consoles).
- Page 6 When control signals from the console inputs into Stairville DJLase 150 RGY DMX projector. The projector must be assigned a data start address code, so that a unit may act on the corresponding control signal. Thus, when any controller is used, every unit must have its own data start address...
- Page 7 The skill of editing various patterns with DMX-512: Pattern A B C D’s channel is controlled dividually, you can turn on or off, exchange pattern arbitrarily, it’s very convenient to use. When the CH2 CH3 CH4 CH5’s channel address is 0, it will turn on the pattern A B C D The four pattern’s effects controlling channel is used doublely, it is exchanged by CH6: When the CH6 is 0~51, the pattern is A B C D simultaneously, When the CH6 is 52~103, the...
- Page 8 Do not use it frequently under the humid atmosphere Maintenance: It is very important to keep the Stairville DJLase 150 RGY DMX laser light clean, therefore please clean reflector lens monthly to keep the lights away from dust, dirt or fog juice. We suggest that clean the light with professional glass cleaning lotion and downy cloth.
