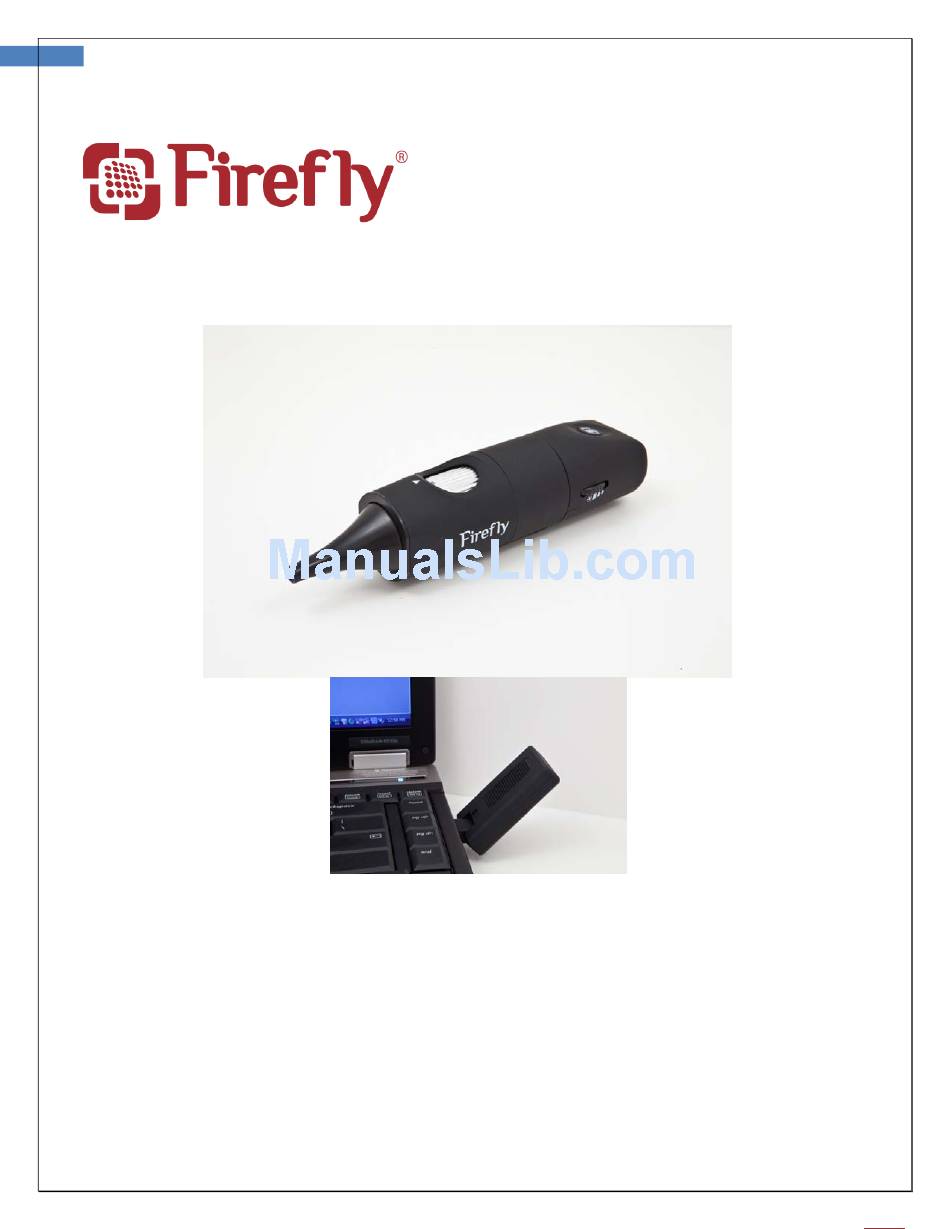

- Page 1 User Manual for Wireless Firefly Microscope DE550 Version: 1.3 DE550 User Manual IRELESS ICROSCOPE THANKS FOR SELECTING A WIRELESS FIREFLY MICROSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
- Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 ABLE OF ONTENTS Table of Contents.......................3 Introduction ......................5 Warnings & Cautions ....................6 Warning ............................ 6 Caution............................6 Check List ........................8 Nomenclature ......................9 Operation.........................10 Setting up the microscope with specula：.................. 10 Setting up the F.O.V extender and specula: ................11 Setting up the software application：... - Page 4 User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Troubleshooting.......................25 Frequently Asked Questions (FAQs): ..................25 Wireless interference recommendations ..............27...
-
Page 5: Introduction
Saturation, Hue, Brightness, Contrast and Sharpness for desired applications. System Requirements The Firefly Microscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port. -
Page 6: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly Microscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. - Page 7 User Manual for Wireless Firefly Microscope DE550 Version: 1.3 responsible for verifying that the system complies with the requirements of the system standard IEC 60601-1-1. This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices.
-
Page 8: Check List
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. ... -
Page 9: Nomenclature
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 OMENCLATURE... -
Page 10: Operation
Version: 1.3 PERATION Setting up the microscope with specula： Only accepts original specula qualified for use with Firefly microscopes Plug the specula into the round concave guide in front. Ensure a tight fit for proper operation. To remove: Simply pull to unplug the specula. -
Page 11: Setting Up The F.o.v Extender And Specula
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Setting up the F.O.V extender and specula: To obtain a deeper view of the subject under examination, the optional Field of View (F.O.V) extender may be attached. F.O.V extenders may be ordered separately. -
Page 12: Setting Up The Software Application
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Setting up the software application： Prior to using the Firefly Microscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD. Setting up the software application：... -
Page 13: Charging Battery
Version: 1.3 Charging Battery: Duration: The Wireless Firefly Microscope has a built-in high efficiency lithium battery that enables more than 4.5 hours continuous operation. Charging the Battery: Through the mini-USB port at the rear of the microscope, the embedded battery can be charged with the provided USB DC cable. -
Page 14: Using The Firefly Microscope System
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Using the Firefly Microscope System: Recommended holding position: It is suggested to hold the microscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown). -
Page 15: Using Focus
Rotate wheel to fine tune the image. Function as a laryngoscope The Firefly Microscope can b e transformed into a laryngoscope b y r e m o v i n g t h e specula and attaching a spatula on the clip. -
Page 16: Standby And Remove Device
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Standby and Remove device: To temporarily turn off or remove the device, push and release the power button to the “OFF” position. The device must also be turned off through the Windows operating system: •... -
Page 17: Launch The Software Application
Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Microscope. The Microscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions. -
Page 18: Tool Bars
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars:... -
Page 19: Device Tool Bars
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 Device Tool bars: Icon Icon Name Function Description Device Connect Refresh image device connection Select available image devices, such as Microscope Select a video format (default 640x480 YUY2) -
Page 20: Maintenance And Service
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Microscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse. -
Page 21: Service Policy
Version: 1.3 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 22: Specifications
User Manual for Wireless Firefly Microscope DE550 Version: 1.3 SPECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 11.4 cm (4.5 inches) Dimensions (approximate) Height: 3.7. cm (1.5 inches) Width: 3.7 cm (1.5 inches) Ratio USB 5 VDC, 150mA Protection against ingress of IPXØ... -
Page 23: Limited Warranty
Limited Hardware Warranty (through distributors & resellers) FireFly Global hardware products purchased in the U.S. come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 24 How long does this limited hardware warranty last? The limited hardware warranty on all FireFly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced. FireFly Global may change the availability of limited hardware warranties, at its discretion, but any changes will not be retroactive.
-
Page 25: Troubleshooting
Version: 1.3 ROUBLESHOOTING Frequently Asked Questions (FAQs): Q1. What do I do if my Firefly Microscope and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly Microscope and disconnect the USB data cable from the computer. b) Close the FireflyPro software. - Page 26 User Manual for Wireless Firefly Microscope DE550 Version: 1.3 b. Check whether the system is infected by a virus. c. The PC may be too old to properly drive the video stream and does not meet the minimum standards set forth in the instructions. Please use faster system.
-
Page 27: Wireless Interference Recommendations
"802.11-friendly" are unlikely to interfere with wireless computer networks, but they may interfere with the Wireless Firefly Microscope and other wireless devices. Keep the 2.4-GHz analog phones as far away from the area as possible. Lower the antenna position of cordless phone If relocating or replacing the phone is not an immediate option, operate the cordless phone with the antenna in the lowered position if possible. - Page 28 Normally the WiFi wireless network router or access point uses #6 as the default channel, which is located in the center of the 2.4-GHz spectrum. This can easily conflict with the wireless Firefly Microscope’s spectrum. Try changing the channel on the access point (i.e. 1, 6, and 11). Anecdotally, users have found they have the least interference on channel 11 while the wireless Firefly Microscope’s channels are...
