User Manual for Firefly Microscope GT820
Version: 2.0
1
GT820

User Manual

D
M
IGITAL
ICROSCOPE
THANKS FOR SELECTING A FIREFLY MICROSCOPE
To take full advantage of this product's advanced capabilities,
and to properly and safely use this product, please read the manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Firefly GT820

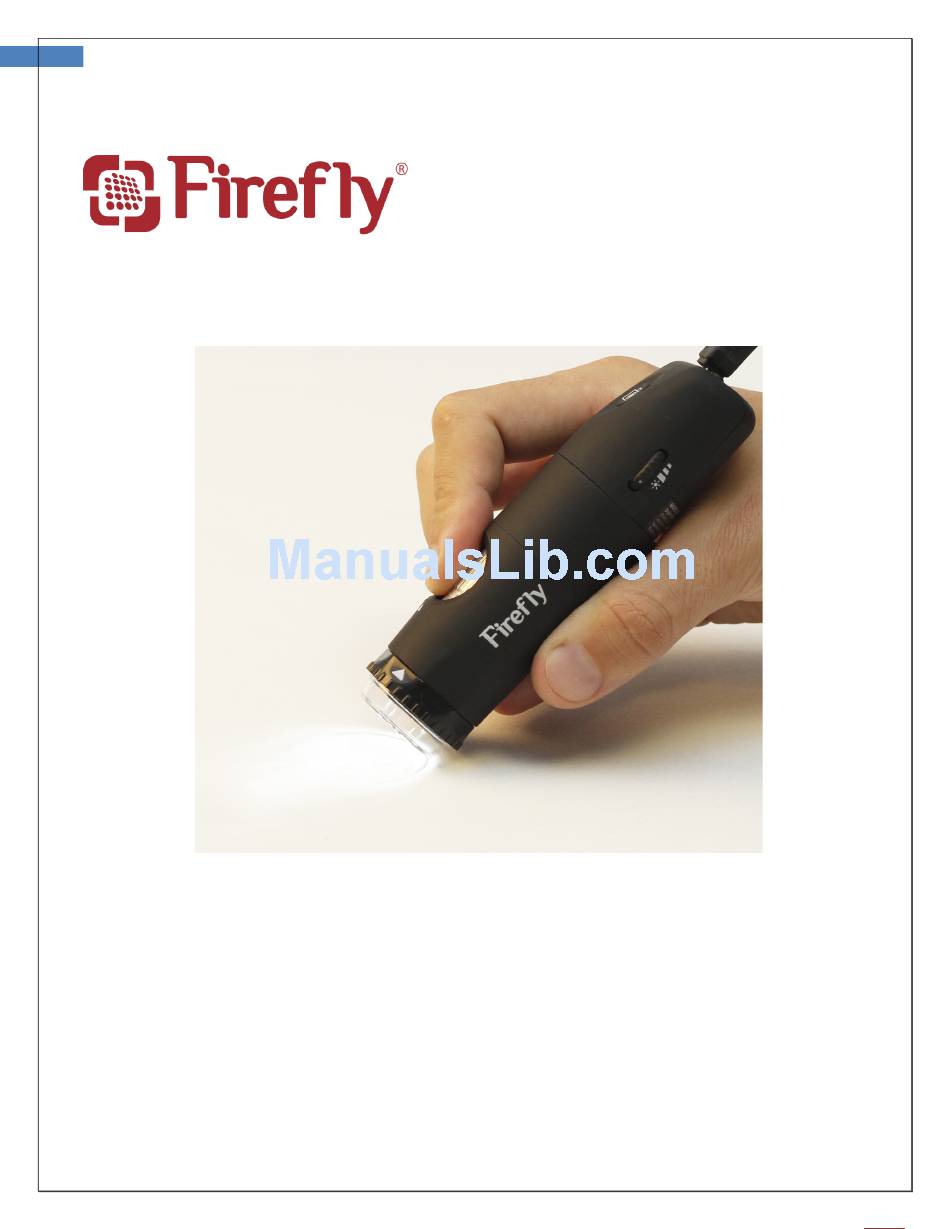

  • Page 1: Digital Microscope

    User Manual for Firefly Microscope GT820 Version: 2.0 GT820 User Manual IGITAL ICROSCOPE THANKS FOR SELECTING A FIREFLY MICROSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
  • Page 2 Firefly Global (www.Fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
  • Page 3: Table Of Contents

    User Manual for Firefly Microscope GT820 Version: 2.0 ABLE OF ONTENTS Digital Microscope ...................... 1 Table of Contents ......................3 Introduction ........................ 4 warnings & cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................7 Nomenclature ......................8 Setting up the software application:...
  • Page 4: Introduction

    System Requirements The Firefly Microscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port.
  • Page 5: Warnings & Cautions

    In order to obtain optimum performance and ensure patient safety,  thoroughly read this manual. Do not use the Firefly Microscope if you notice any signs of damage to the  components of the system. Contact customer service for immediate assistance.
  • Page 6 User Manual for Firefly Microscope GT820 Version: 2.0 This product complies with current required standards for electromagnetic  interference and should not present problems to other equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment.
  • Page 7: Check List

    User Manual for Firefly Microscope GT820 Version: 2.0 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Microscope Nose Extender Software Application CD USB Cable Clip...
  • Page 8: Nomenclature

    User Manual for Firefly Microscope GT820 Version: 2.0 NOMENCLATURE...
  • Page 9: Setting Up The Software Application

    User Manual for Firefly Microscope GT820 Version: 2.0 PERATION To obtain a clear image, please grip the Firefly Microscope; remain still and avoid vibration as much as possible during observation. Setting up the software application: Prior to using the Firefly Microscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD.
  • Page 10: Power The Device On

    User Manual for Firefly Microscope GT820 Version: 2.0 Power the Device On: Towards the rear of the device, a switch allows the user to power the device ON and to activate the LEDs. OFF: Switch off the device  ON: Switch the device ON ...
  • Page 11: High Zoom Use

    User Manual for Firefly Microscope GT820 Version: 2.0 High zoom use: When there is a need for high zoom, maintaining body stability becomes more paramount. In such instances, it is suggested that the digital Microscope focus wheel opening should be placed towards user, and the transparent cover vertically downward.
  • Page 12: Brightness Adjustment

    User Manual for Firefly Microscope GT820 Version: 2.0 Brightness Adjustment: On left rear side of the Microscope, a knob allows the user to control the brightness of the LEDs:  Backward Turn: Decrease Brightness  Forward Turn: Increase Brightness Using Focus: Default Position: Match the scale 50 to arrow mark.
  • Page 13: Using The Polarizer

    Version: 2.0 Using the Polarizer: The GT820 is equipped with an integrated polarizer feature. To activate polarization, turn the black ring behind the nose extender. Multiple degrees of polarization may be achieved by gradually turning the polarizer ring from 0degrees to 360degrees.
  • Page 14: Launch The Software Application

    Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Microscope. The Microscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions.
  • Page 15: Tool Bars

    User Manual for Firefly Microscope GT820 Version: 2.0 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars: Icon...
  • Page 16: Device Tool Bars

    User Manual for Firefly Microscope GT820 Version: 2.0 Device Tool bars: Icon Icon Name Function Description Device Connect Refresh image device connection Select available image devices, such as Microscope Select a video format (default 640x480 YUY2)
  • Page 17: Maintenance And Service

    Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Microscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse.
  • Page 18: Service Policy

    Version: 2.0 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.
  • Page 19: Specifications

    User Manual for Firefly Microscope GT820 Version: 2.0 SPECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 13.0 cm (5.2 inches) Dimensions (approximate) Height: 3.6 cm (1.5 inches) Width: 4.0 cm (1.6 inches) Power USB 5VDC, 150mA Protection against ingress of IPXØ...
  • Page 20: Limited Warranty

    ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products purchased in the U.S. come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased.
  • Page 21 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
  • Page 22 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.
  • Page 23: Troubleshooting

    User Manual for Firefly Microscope GT820 Version: 2.0 ROUBLESHOOTING Frequently Asked Questions (FAQs): Installation related questions Q1: When I launch FireflyPro all I see is a black and white image without any color, what is the problem? a) Make sure you turn up the brightness dial on the side of the camera to its maximum setting.
  • Page 24 6. Uninstallation is now complete. General Product Questions Q1: Will the Firefly device work on my Mac if I’m running Windows on my Mac? a) Although Firefly devices do not have native Mac OSx support, they do work well with Windows emulation packages such as Parallels, VMware, etc.
