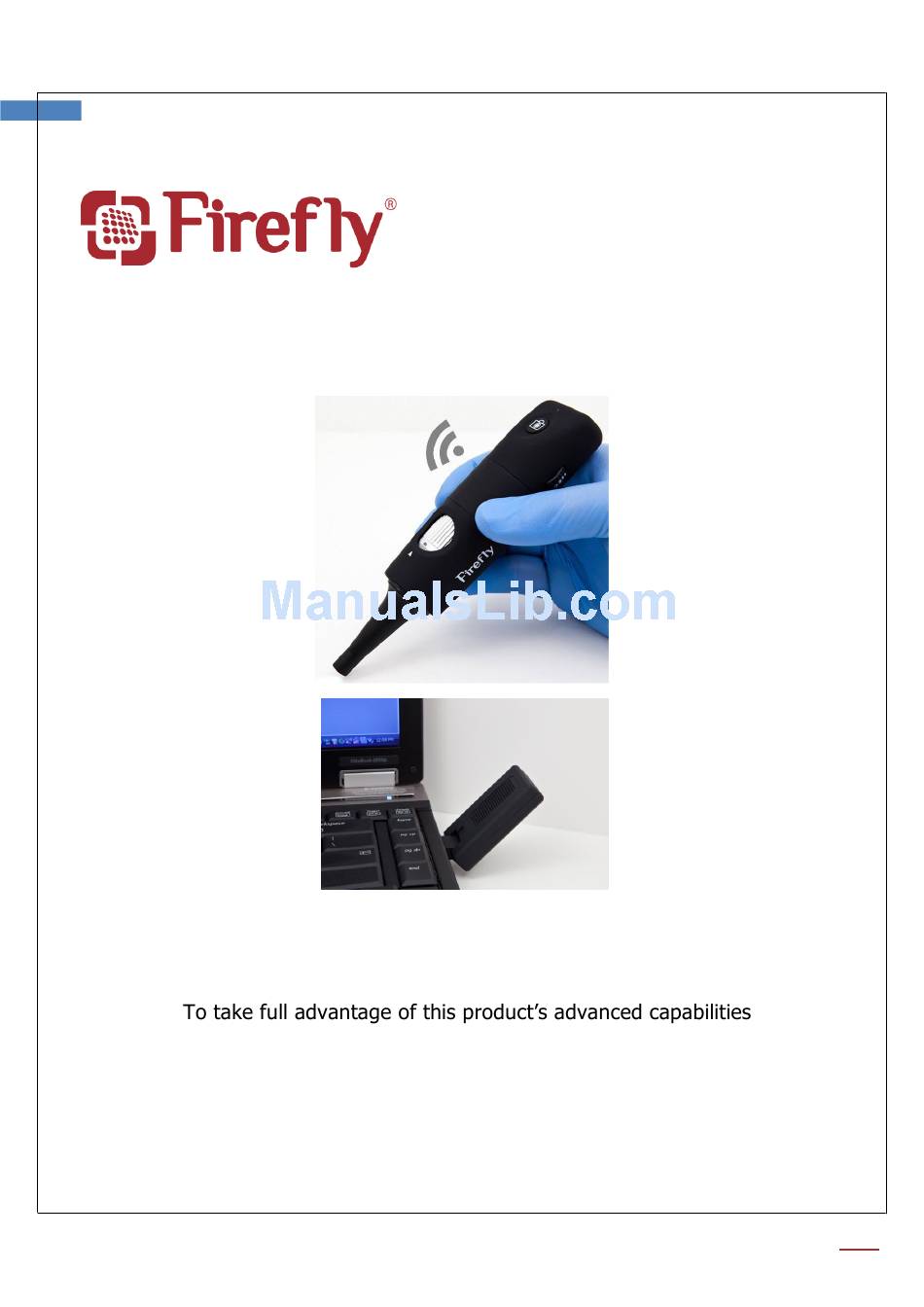

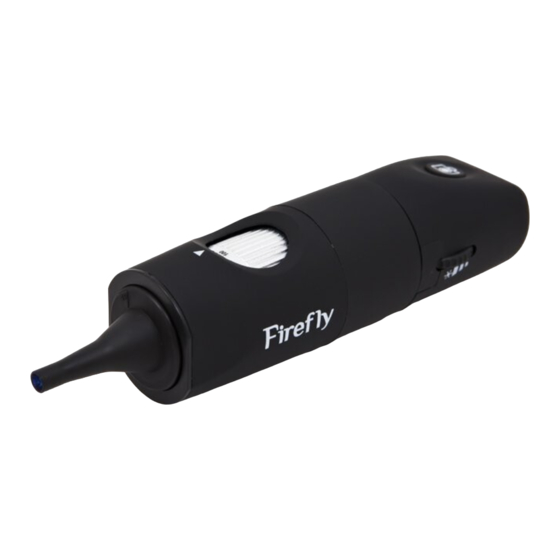

- Page 1 Firefly DE550/551 User Manual Version: 1.7 DE550/551 User Manual WIRELESS OTOSCOPE THANKS FOR SELECTING A WIRELESS FIREFLY OTOSCOPE and to properly and safely use this product, please read the manual carefully.
- Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
........................12 Power the Device On ......................12 Charging Battery: ........................12 Channel Mapping: ........................13 Using the Firefly Otoscope System: ..................13 Recommended holding position: ....................14 Brightness Adjustment: ......................14 Using the image capture control: ..................... 14 Using Focus: .......................... 15 Standby and Remove device: .................... -
Page 4: Introduction
Saturation, Hue, Brightness, Contrast and Sharpness for desired applications. System Requirements The Firefly Otoscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port. -
Page 5: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly Otoscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. Do not attempt to disinfect the Firefly Otoscope System using glutaraldehyde products, ethylene oxide gas, steam or any other liquid or gas disinfectant. - Page 6 Firefly DE550/551 User Manual Version: 1.7 This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment.
-
Page 7: Check List
Firefly DE550/551 User Manual Version: 1.7 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Otoscope x 1pc Receiver x 1 pc Clip (attached to scope) x 1 pc... - Page 8 Firefly DE550/551 User Manual Version: 1.7 USB charger cable x 1 pc...
-
Page 9: Nomenclature
Firefly DE550/551 User Manual Version: 1.7 OMENCLATURE... - Page 10 Firefly DE550/551 User Manual Version: 1.7 PERATION Setting up the otoscope with specula Only accepts original specula qualified for use with Firefly otoscopes Plug the specula into the round concave guide in Ensure a tight fit for proper operation. front.
-
Page 11: Setting Up Optional F.o.v Extender And Specula
Firefly DE550/551 User Manual Version: 1.7 Setting up optional F.O.V. extender and specula: To obtain a deeper view of the subject under examination, the optional Field of View (F.O.V.) extender may be attached. F.O.V extenders may be ordered separately. Plug the F.O.V Extender into the round concave Plug the specula into the round concave guide in guide in front of the otoscope. -
Page 12: Connect To Pc
Firefly DE550/551 User Manual Version: 1.7 Setting up the software application Prior to using the Firefly Otoscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD. Connect to PC Power the Device On e rear of the otoscope to activate the device. -
Page 13: Charging Battery
Version: 1.7 Charging Battery: Duration: The Wireless Firefly Otoscope has a built-in high efficiency lithium battery that enables more than 3.5 hours continuous operation. Charging the Battery: Through the mini-USB port at the rear of the otoscope, the embedded battery can be charged with the provided USB DC cable. -
Page 14: Recommended Holding Position
Firefly DE550/551 User Manual Version: 1.7 Using the Firefly Otoscope System: Recommended holding position: It is suggested to hold the otoscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown). -
Page 15: Using Focus
Firefly DE550/551 User Manual Version: 1.7 Using Focus: Based on the relative distance of the observed object, the focus wheel can be turned for a clear image. When a higher magnification is required, the focus wheel can be turned to the left (see below). If a larger field of view is required, the otoscope can be moved farther away and the wheel turned to the right. -
Page 16: Standby And Remove Device
Firefly DE550/551 User Manual Version: 1.7 Standby and Remove device: To temporarily turn off or remove the device, push and release the power button to the position. The device must also be turned off through the Windows operating system: On your Microsoft Windows Desktop, click My Computer in the left pane. -
Page 17: Launch The Software Application
Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Otoscope. The Otoscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions. - Page 18 Firefly DE550/551 User Manual Version: 1.7 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars: Icon Icon Name...
- Page 19 Firefly DE550/551 User Manual Version: 1.7 Device Tool bars: Icon Icon Name Function Description Device connect Refresh image device connection Check this box to update default resolution settings with Save the selected values. New default is saved upon exit. Select a video format (Initial default 640x480 YUY2)
-
Page 20: Maintenance And Service
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Otoscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse. -
Page 21: Service Policy
Version: 1.7 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 22: Specifications
Firefly DE550/551 User Manual Version: 1.7 PECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 11.4 cm (4.5 inches) Dimensions (approximate) Height: 3.7. cm (1.5 inches) Width: 3.7 cm (1.5 inches) Ratio USB 5 VDC, 150mA Protection against ingress of IPXØ... -
Page 23: Limited Warranty
Limited Hardware Warranty (through distributors & resellers) FireFly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 24 How long does this limited hardware warranty last? The limited hardware warranty on all FireFly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced. FireFly Global may change the availability of limited hardware warranties, at its discretion, but any changes will not be retroactive.
-
Page 25: Troubleshooting
Version: 1.7 ROUBLESHOOTING Frequently Asked Questions (FAQs): Q1. What do I do if my Firefly Otoscope and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly Otoscope and disconnect the USB wireless receiver from the computer. b) Close the FireflyPro software. - Page 26 Firefly DE550/551 User Manual Version: 1.7 Q7. Why does the video stream appear like a mosaic and update slowly (or not smoothly)? Answer: a. Too many software programs may be running simultaneously and overloading the CPU, or the physical memory has reached its saturation. Please close unnecessary programs. If video stream memory.
