Summary of Contents for Firefly DE500

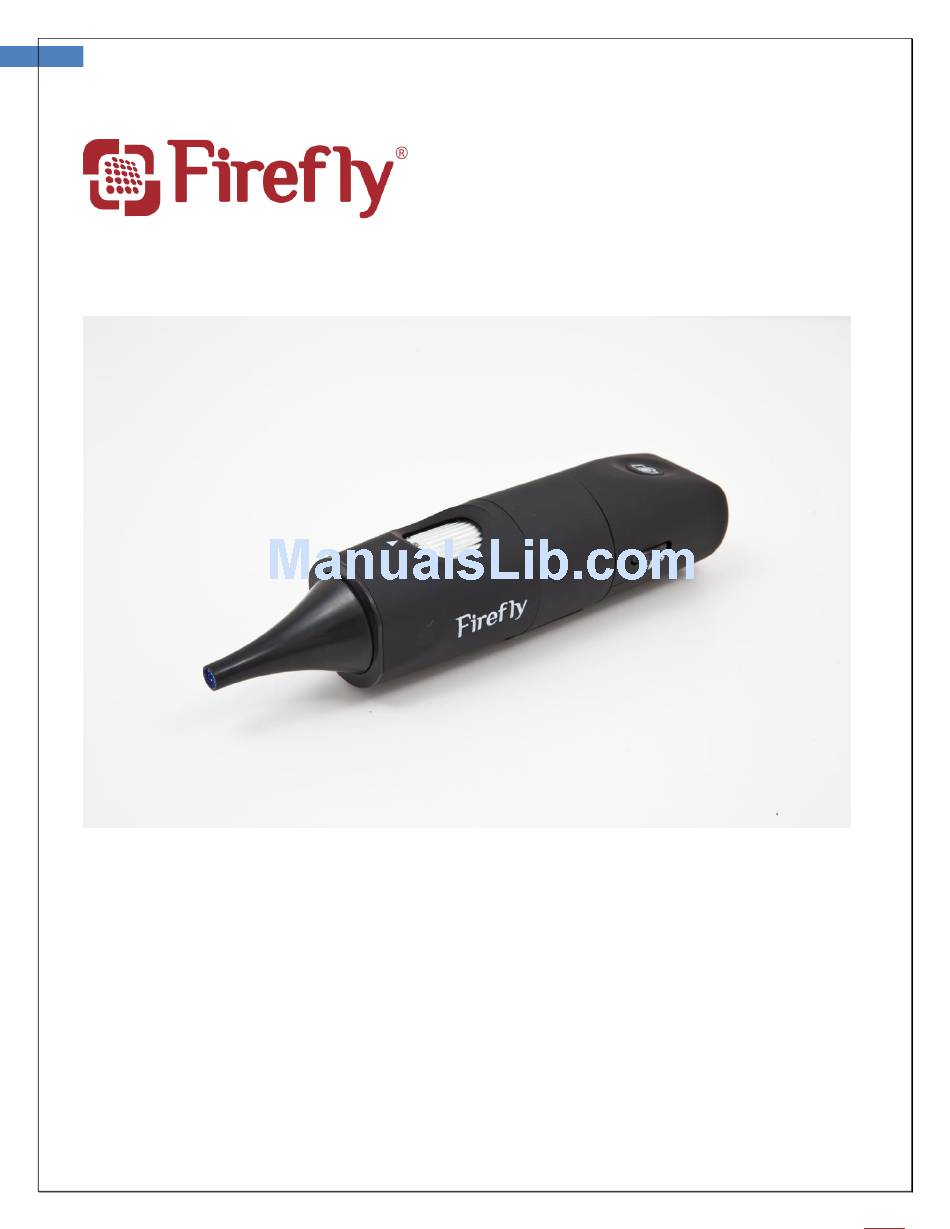

- Page 1 User Manual for Firefly Microscope DE500 Version: 1.0 DE500 User Manual Digital Microscope THANKS FOR SELECTING A FIREFLY MICROSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
- Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
User Manual for Firefly Microscope DE500 Version: 1.0 ABLE OF ONTENTS Introduction ........................ 4 Warnings & Cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................7 Nomenclature ......................8 Operation ........................8 Setting up the microscope with specula： .................. 9 Setting up the F.O.V. -
Page 4: Introduction
Saturation, Hue, Brightness, Contrast and Sharpness for desired applications. System Requirements The Firefly Microscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 2.0 port. -
Page 5: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly Microscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. - Page 6 User Manual for Firefly Microscope DE500 Version: 1.0 responsible for verifying that the system complies with the requirements of the system standard IEC 60601-1-1. This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices.
-
Page 7: Check List
User Manual for Firefly Microscope DE500 Version: 1.0 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Microscope x 1pc FOV Extender x 1 pc USB cable x 1 pc... -
Page 8: Nomenclature
User Manual for Firefly Microscope DE500 Version: 1.0 OMENCLATURE... -
Page 9: Operation
Version: 1.0 PERATION Setting up the microscope with specula： Only accepts original specula qualified for use with Firefly microscopes Plug the specula into the round concave guide in front. Ensure a tight fit for proper operation. To remove: Simply pull to unplug the specula. -
Page 10: Setting Up The F.o.v. Extender And Specula
User Manual for Firefly Microscope DE500 Version: 1.0 Setting up the F.O.V. extender and specula: To obtain a deeper view of the subject under examination, the Field of View (F.O.V.) extender may be attached. Plug the F.O.V Extender into the round concave guide in Plug the specula into the round concave guide in front of front of the microscope. -
Page 11: Setting Up The Software Application
User Manual for Firefly Microscope DE500 Version: 1.0 Setting up the software application： Prior to using the Firefly Microscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD. Connect to PC： Connect the Firefly Microscope to the PC’s USB port Power the Device On：... -
Page 12: Recommended Holding Position
User Manual for Firefly Microscope DE500 Version: 1.0 Using the Firefly Microscope System: Recommended holding position: It is suggested to hold the microscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown). -
Page 13: Using Focus
Default Position: Match the scale 50 to arrow mark. Function as a laryngoscope The Firefly Microscope can b e transformed into a laryngoscope b y r e m o v i n g t h e specula and attaching a... -
Page 14: Standby And Remove Device
User Manual for Firefly Microscope DE500 Version: 1.0 Standby and Remove device: To temporarily turn off or remove the device, slide the power button to the ―OFF‖ position. The device must also be turned off through the Windows operating system: ... -
Page 15: Viewing The Images
Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Microscope. The Microscope communicates with the PC through the USB port. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions. -
Page 16: Tool Bars
User Manual for Firefly Microscope DE500 Version: 1.0 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars: Icon... -
Page 17: Device Tool Bars
User Manual for Firefly Microscope DE500 Version: 1.0 Device Tool bars: Icon Icon Name Function Description Device Connect Refresh image device connection Select available image devices, such as Microscope Select a video format (default 640x480 YUY2) -
Page 18: Maintenance And Service
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Microscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse. -
Page 19: Service Policy
Version: 1.0 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 20: Specifications
User Manual for Firefly Microscope DE500 Version: 1.0 PECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 13.0 cm (5.2 inches) Dimensions (approximate) Height: 3.6 cm (1.5 inches) Width: 4.0 cm (1.6 inches) Power USB 5VDC, 150mA Protection against ingress of IPXØ... -
Page 21: Limited Warranty
ARRANTY Limited Hardware Warranty (through distributors & resellers) FireFly Global hardware products purchased in the U.S. come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 22 We use new and refurbished parts made by various manufacturers in performing warranty repairs and in building replacement parts and systems. Refurbished parts and systems are parts or systems that have been returned to FireFly Global, some of which were never used by a customer. All parts and systems are...
- Page 23 Version: 1.0 inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought. FireFly Global owns all parts removed from repaired products. May I transfer the limited hardware warranty?
-
Page 24: Troubleshooting
Version: 1.0 ROUBLESHOOTING Frequently Asked Questions (FAQs): Q1. What do I do if my Firefly Microscope and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly Microscope and disconnect the USB data cable from the computer. b) Close the FireflyPro software. - Page 25 User Manual for Firefly Microscope DE500 Version: 1.0 b. Check whether the system is infected by a virus. c. The PC may be too old to properly drive the video stream and does not meet the minimum standards set forth in the instructions. Please use faster system.
