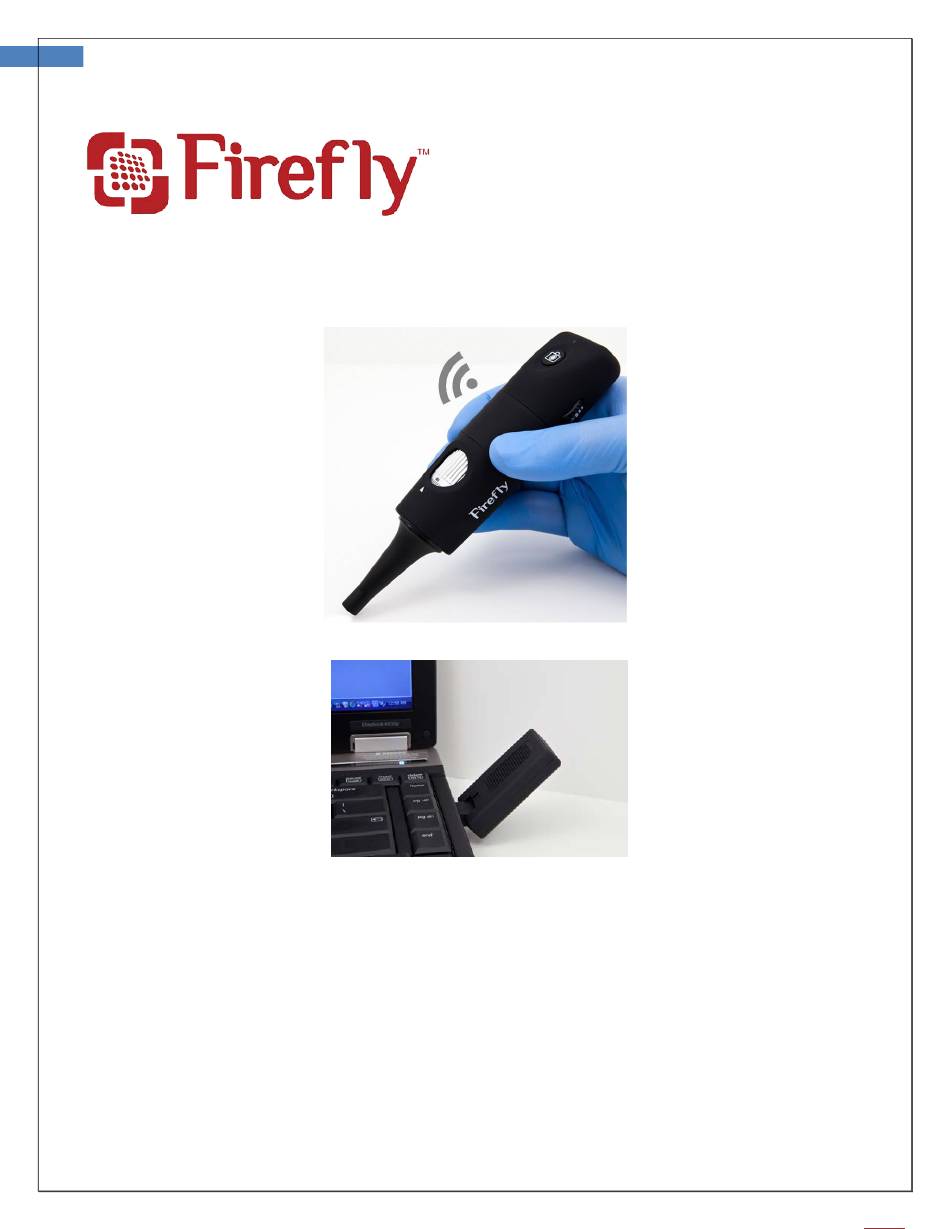

- Page 1 Firefly DE550/551 User Manual Version: 3.3 DE550/551 User Manual WIRELESS OTOSCOPE THANKS FOR SELECTING A WIRELESS FIREFLY OTOSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
- Page 2 Firefly Global (www.Fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
Firefly DE550/551 User Manual Version: 3.3 Table of Contents Introduction ........................ 4 Warnings & Cautions ....................5 Check List ........................7 Nomenclature ......................8 Operation ........................9 Setting up the Otoscope with Specula： ..................9 Connecting to PC and Powering the Device On： ................ 10 Charging the Battery: ...................... -
Page 4: Introduction
Saturation, Hue, Brightness, Contrast and Sharpness for desired applications. System Requirements The Firefly Otoscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port. -
Page 5: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly Otoscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. - Page 6 Firefly DE550/551 User Manual Version: 3.3 equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment. Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the ...
-
Page 7: Check List
Firefly DE550/551 User Manual Version: 3.3 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Otoscope x 1pc Receiver x 1 pc USB charger cable x 1 pc... -
Page 8: Nomenclature
Firefly DE550/551 User Manual Version: 3.3 OMENCLATURE... -
Page 9: Operation
Version: 3.3 PERATION Setting up the otoscope with specula： Only accepts original specula qualified for use with Firefly otoscopes. Plug the specula into the round concave guide Ensure a tight fit for proper operation and in front. To remove: Simply pull to unplug the adjust specula such that the circular opening specula. -
Page 10: Connecting To Pc And Powering The Device On
Firefly DE550/551 User Manual Version: 3.3 Setting up the Software Application： Prior to using the Firefly Otoscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD. Connect to PC： Connect the compact receiver to the PC’s USB port. -
Page 11: Charging The Battery
Version: 3.3 Charging the Battery: Duration: The Wireless Firefly Otoscope has a built-in high efficiency lithium battery that enables more than 2.5 hours continuous operation. Charging the Battery: Through the mini-USB port at the rear of the otoscope, the embedded battery can be charged with the provided USB DC cable. -
Page 12: Recommended Holding Position
Firefly DE550/551 User Manual Version: 3.3 Recommended holding position: It is suggested to hold the otoscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown). -
Page 13: Using Focus
Firefly DE550/551 User Manual Version: 3.3 Using Focus: Based on the relative distance of the observed object, the focus wheel can be turned for a clear image. When a higher magnification is required, the focus wheel can be turned to the left (see below). If a larger field of view is required, the otoscope can be moved farther away and the wheel turned to the right. - Page 14 Firefly DE550/551 User Manual Version: 3.3 Standby and Remove device: To temporarily turn off or remove the device, push and release the power button to the “OFF” position. Next, exit the FireflyPro software application. You can then remove the USB receiver from the PC.
-
Page 15: Launching The Software Application For Windows
Double-click the FireflyPro.app icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Otoscope. The Otoscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions. -
Page 16: Saving Images And Changing Image File Type
Version: 3.3 Saving Images: There are three ways to save an image: 1. Pressing the snapshot button on the Firefly device. 2. Clicking the Camera icon in the menu bar. 3. Pressing the center button on your mouse (middle click). -
Page 17: Changing The Location Where Images Are Saved
Firefly DE550/551 User Manual Version: 3.3 2. Change the Format of an Existing Image From the Image View Bar, Right click on an image and select Save as. Then select the file type from the dropdown and click Save. Changing the Location where Images are Saved Changing the Location of an Image Already Taken: Right click on the image in the Image View Bar and click Save As. - Page 18 Firefly DE550/551 User Manual Version: 3.3 Tool bars: The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control Tool bar: Icon Icon Name...
- Page 19 Firefly DE550/551 User Manual Version: 3.3 Image tool bar: Icon Icon Name Function Description Save Image Store frozen image Image Capture Capture and store instant image from live video Image Browsing Browse images in working directory Working Pop-up to select working directory path...
-
Page 20: Launching The Software Application For Mac
Double-click the FireflyPro.app icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Otoscope. The Otoscope communicates with the Mac through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of documentation functions. -
Page 21: Album Manager Feature
Firefly DE550/551 User Manual Version: 3.3 Album Manager Feature Close Window Select Album Maximize Window Delete Album Minimize Window Create New Album Pictures taken See Photos Taken See Videos Taken Selecting correct device: 1. Open -> select the Firefly product you are using... -
Page 22: Saving Images Or Videos
Version: 3.3 Saving Images: There are three ways to save an image: 1. Pressing the snapshot button on the Firefly device 2. Clicking the camera icon on the interface 3. Clicking when the camera icon is visible in live video monitor... -
Page 23: Creating A New Folder Or Setting Default Folder
1. After saving picture, Select where -> Select location or create a new folder 2. Make the New Folder or Location the default folder by using the select album directory 3. Go back to Firefly Pro album manager and select the location or new folder... -
Page 24: Moving An Image
Firefly DE550/551 User Manual Version: 3.3 Moving an Image to a New Location (same steps as a new default folder) 1. After opening image, click where -> select new location -> click move Icons and Functions Determines the resolution Zoom in and out on live video from 10% to 150%... -
Page 25: Maintenance And Service
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Otoscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse. -
Page 26: Service Policy
Version: 3.3 ERVICE POLICY All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 27: Specifications
Firefly DE550/551 User Manual Version: 3.3 PECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 11.4 cm (4.5 inches) Dimensions (approximate) Height: 3.7. cm (1.5 inches) Width: 3.7 cm (1.5 inches) Ratio USB 5 VDC, 150mA Protection against ingress of water IPXØ... -
Page 28: Limited Warranty
ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 29 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
- Page 30 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.
-
Page 31: Troubleshooting
Firefly DE550/551 User Manual Version: 3.3 ROUBLESHOOTING Please visit the FAQ section of our website for the latest troubleshooting information and additional support. http://www.fireflyglobal.com/ Thank you for choosing Firefly. www.fireflyglobal.com...
