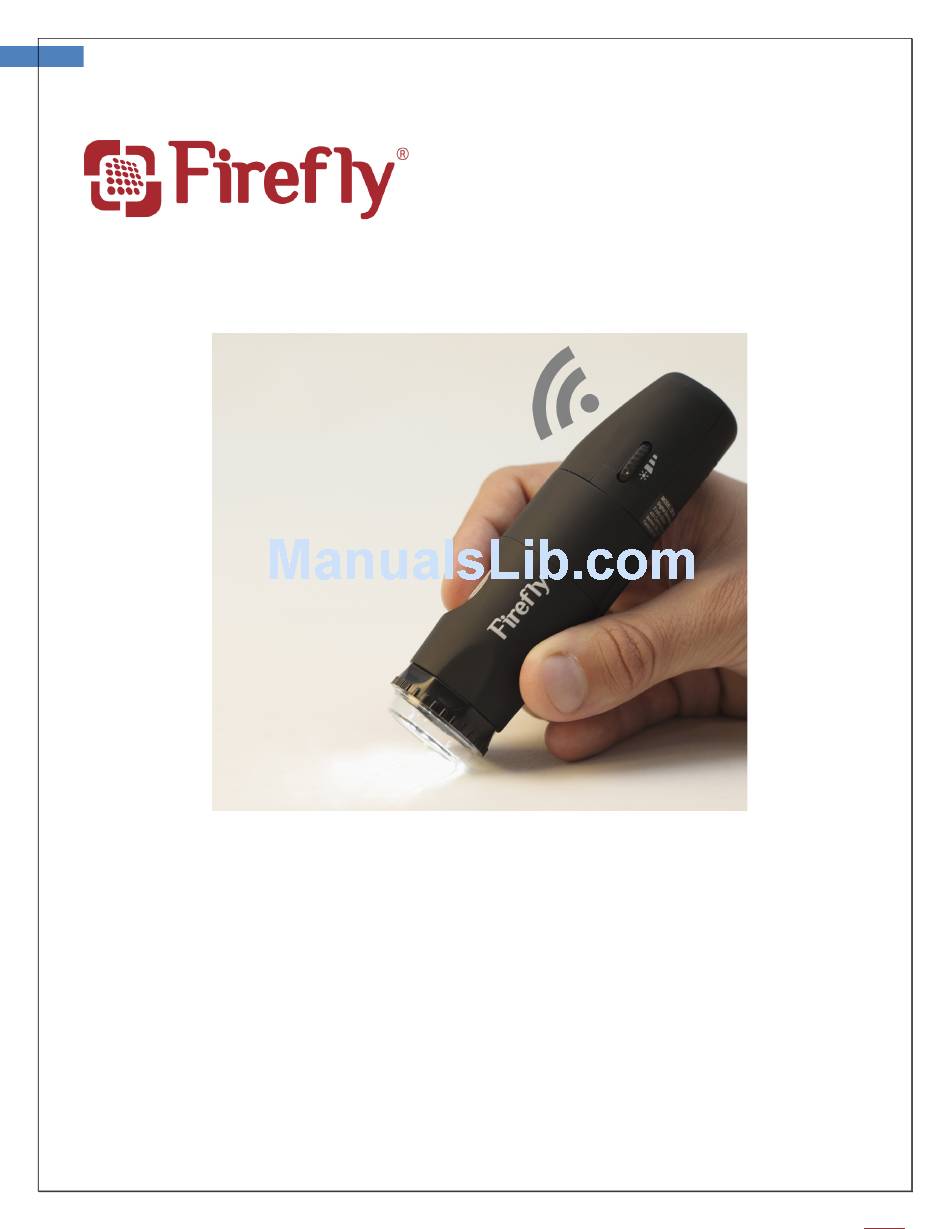

User Manual for Firefly Wireless Microscope GT630
Version: 1.3
1
GT630
User Manual
Wireless Microscope
THANKS FOR SELECTING A WIRELESS FIREFLY MICROSOCPE
To take full advantage of this product's advanced capabilities,
and to properly and safely use this product, please read the manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Firefly GT630

  • Page 1 User Manual for Firefly Wireless Microscope GT630 Version: 1.3 GT630 User Manual Wireless Microscope THANKS FOR SELECTING A WIRELESS FIREFLY MICROSOCPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
  • Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
  • Page 3: Table Of Contents

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 ABLE OF ONTENTS Introduction ........................ 4 Warnings & Cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................7 Nomenclature ......................8 Operation ........................9 Setting up the software application: ..................9 Connect to PC:...
  • Page 4: Introduction

    System Requirements Wireless Firefly Microscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 2.0 port. Intended use The Firefly Microscope System is intended to conveniently enable high magnification inspection and digital image/video recording.
  • Page 5: Warnings & Cautions

    In order to obtain optimum performance and ensure patient safety, thoroughly  read this manual. Do not use the Wireless Firefly Microscope if you notice any signs of damage to  the components of the system. Contact customer service for immediate assistance.
  • Page 6 User Manual for Firefly Wireless Microscope GT630 Version: 1.3 This product complies with current required standards for electromagnetic  interference and should not present problems to other equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment.
  • Page 7: Check List

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Dermatoscope x 1pc Receiver x 1 pc Scope spacer x 1pc...
  • Page 8: Nomenclature

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 OMENCLATURE...
  • Page 9: Operation

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 PERATION To obtain a clear image, please grip the Firefly Microscope; remain still and avoid vibration as much as possible during observation. Setting up the software application: Prior to using the Firefly Microscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD.
  • Page 10: Charging Battery

    Version: 1.3 Charging Battery: Duration:  The Wireless Firefly Microscope has a built-in high efficiency lithium battery that enables more than 3 hours continuous operation. Charging the Battery:  Through the mini-USB port at the rear of the microscope, the embedded battery can be charged with the provided USB DC cable.
  • Page 11: Recommended Holding Position

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 Using the Firefly Microscope System: Recommended holding position: It is suggested to hold the Microscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is...
  • Page 12: High Zoom Use

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 High zoom use: When there is a need for high zoom, maintaining body stability becomes more paramount. In such instances, it is suggested that the digital Microscope focus wheel opening should be placed towards the user, and the transparent cover vertically downward.
  • Page 13: Uv/White Light Setting Adjustment

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 UV/White Light Setting Adjustment: On left rear side of the Microscope, a knob allows the user to switch the type of light being used. Backward Turn: Turns on UV light LEDs ...
  • Page 14: Standby And Remove Device

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 The GT630 is equipped with an integrated polarizer feature. To activate polarization, turn the black ring behind the nose extender. Multiple degrees of polarization may be achieved by gradually turning the polarizer ring from 0degrees to 360degrees.
  • Page 15: Launch The Software Application

    Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Microscope. The Microscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions.
  • Page 16 User Manual for Firefly Wireless Microscope GT630 Version: 1.3 Image tool bar: Icon Icon Name Function Description Save Image Store frozen image Image Capture Capture and store instant image from live video Image Browsing Browse images in working directory Working Directory...
  • Page 17: Maintenance And Service

    Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Microscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse.
  • Page 18: Service Policy

    Version: 1.3 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.
  • Page 19: Specifications

    User Manual for Firefly Wireless Microscope GT630 Version: 1.3 PECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 11.4 cm (4.5 inches) Dimensions (approximate) Height: 3.7. cm (1.5 inches) Width: 3.7 cm (1.5 inches) Power USB 5 VDC, 150mA Protection against ingress of water IPXØ...
  • Page 20: Limited Warranty

    ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased.
  • Page 21 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
  • Page 22 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.
  • Page 23: Troubleshooting

    I got the message “Device driver software was not successfully installed”, what should I do? a) You may have accidently installed the DE300 software instead of the GT630. Please uninstall software, restart computer, and install the DE550 software. To uninstall, please follow the steps outlined in the “Uninstallation Instructions”...
  • Page 24 (simply follow the prompts for installation). Be sure to full install the wireless receiver driver before launching the software. Q7: I installed the DE300 software but I also bought a GT630, do I need to also install the GT630 software? a) The DE300 can run on both the GT630 and the DE300 software.
  • Page 25 Q2: My Firefly will not charge, what should I do? a) If you do not see a red LED lit up on the Firefly but instead see a flashing red/green LED on the Firefly, please make sure you are using the original short USB cable for charging. Using a long cable will not work properly for CHARGING.
  • Page 26 Version: 1.3 General Product Questions Q1: Will the Firefly device work on my Mac if I’m running Windows on my Mac? a) Although Firefly devices do not have native Mac OSx support, they do work well with Windows emulation packages such as Parallels, VMware, etc.
