Summary of Contents for Firefly GT600
-

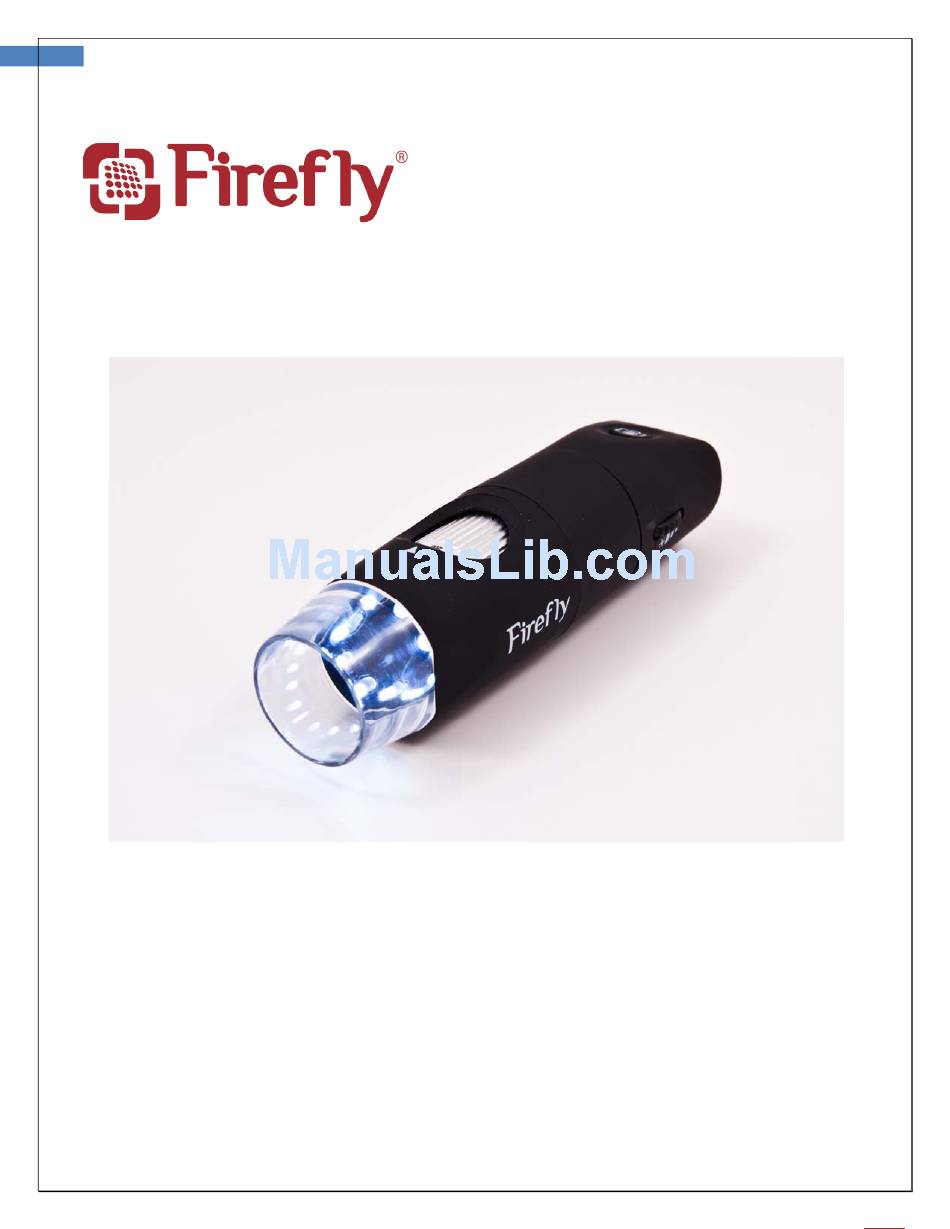

Page 1: Digital Microscope
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 GT600 User Manual IRELESS ICROSCOPE THANKS FOR SELECTING A WIRELESS FIREFLY MICROSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully. - Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 ABLE OF ONTENTS Digital Microscope .....................1 Table of Contents.......................3 Introduction ......................5 Warnings & Cautions ....................6 Warning ............................ 6 Caution............................6 Check List ........................8 Nomenclature ......................9 Operation.........................10 Setting up the software application： ..................10 Connect to PC：........................ - Page 4 User Manual for Wireless Firefly Microscope GT600 Version: 1.0 Service policy........................... 20 Specifications ......................21 Limited Warranty ....................22 Troubleshooting.......................24 Frequently Asked Questions (FAQs): ..................24 Wireless Interference Recommendations ...............26...
-
Page 5: Introduction
Saturation, Hue, Brightness, Contrast and Sharpness for desired applications. System Requirements The Wireless Firefly Microscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port. -
Page 6: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Wireless Firefly Microscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. - Page 7 User Manual for Wireless Firefly Microscope GT600 Version: 1.0 responsible for verifying that the system complies with the requirements of the system standard IEC 60601-1-1. This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices.
-
Page 8: Check List
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Microscope x 1pc Receiver x 1 pc Tripod x 1 pc... -
Page 9: Nomenclature
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 NOMENCLATURE... -
Page 10: Operation
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 PERATION To obtain a clear image, please grip the Firefly Microscope; remain still and avoid vibration as much as possible during observation. Setting up the software application： Prior to using the Firefly Microscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD. -
Page 11: Charging Battery
Version: 1.0 Charging Battery: Duration: The Wireless Firefly Microscope has a built-in high efficiency lithium battery that enables more than 4.5 hours continuous operation. Charging the Battery: Through the mini-USB port at the rear of the microscope, the embedded battery can be charged with the provided USB DC cable. -
Page 12: Using The Firefly Microscope System
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 Using the Firefly Microscope System: recommended holding position: It is suggested to hold the microscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown). -
Page 13: High Ratio >100X
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 high ratio >100x: When there is a need to zoom in more than 100 times, maintaining body stability becomes more paramount. In such instances, a microscope stand is recommended. When a stand is not available, it is suggested that... -
Page 14: Focus
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 Focus： Based on the relative height of the observed object, the focus wheel can be turned for a clear image. When a higher magnification is required, the focus wheel can be turned to the left (see below). If a larger field of view is required, the microscope can be moved farther away and the focus wheel turned to the right. -
Page 15: Using The Image Capture Control
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 Using the image capture control: Press and release the Capture button to capture image frames. The system will generate a shutter sound from the PC speaker as confirmation. C a p t u r... -
Page 16: Launch The Software Application
Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Microscope. The Microscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions. -
Page 17: Tool Bars
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars:... -
Page 18: Device Tool Bars
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 Device Tool bars: Icon Icon Name Function Description Device Connect Refresh image device connection Select available image devices, such as Microscope Select a video format (default 640x480 YUY2) -
Page 19: Maintenance And Service
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Microscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse. -
Page 20: Service Policy
Version: 1.0 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 21: Specifications
User Manual for Wireless Firefly Microscope GT600 Version: 1.0 SPECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 11.4 cm (4.5 inches) Dimensions (approximate) Height: 3.7. cm (1.5 inches) Width: 3.7 cm (1.5 inches) Ratio USB 5 VDC, 150mA Protection against ingress of IPXØ... -
Page 22: Limited Warranty
Limited Hardware Warranty (through distributors & resellers) FireFly Global hardware products purchased in the U.S. come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 23 How long does this limited hardware warranty last? The limited hardware warranty on all FireFly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced. FireFly Global may change the availability of limited hardware warranties, at its discretion, but any changes will not be retroactive.
-
Page 24: Troubleshooting
Version: 1.0 ROUBLESHOOTING Frequently Asked Questions (FAQs): Q1. What do I do if my Firefly Microscope and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly Microscope and disconnect the USB data cable from the computer. b) Close the FireflyPro software. - Page 25 User Manual for Wireless Firefly Microscope GT600 Version: 1.0 b. Check whether the system is infected by a virus. c. The PC may be too old to properly drive the video stream and does not meet the minimum standards set forth in the instructions. Please use faster system.
-
Page 26: Wireless Interference Recommendations
"802.11-friendly" are unlikely to interfere with wireless computer networks, but they may interfere with the Wireless Firefly Microscope and other wireless devices. Keep the 2.4-GHz analog phones as far away from the area as possible. Lower the antenna position of cordless phone If relocating or replacing the phone is not an immediate option, operate the cordless phone with the antenna in the lowered position if possible. - Page 27 Normally the WiFi wireless network router or access point uses #6 as the default channel, which is located in the center of the 2.4-GHz spectrum. This can easily conflict with the wireless Firefly Microscope’s spectrum. Try changing the channel on the access point (i.e. 1, 6, and 11). Anecdotally, users have found they have the least interference on channel 11 while the wireless Firefly Microscope’s channels are...
