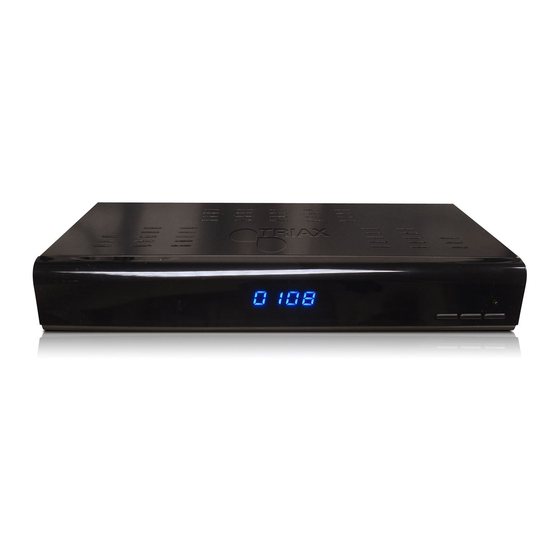

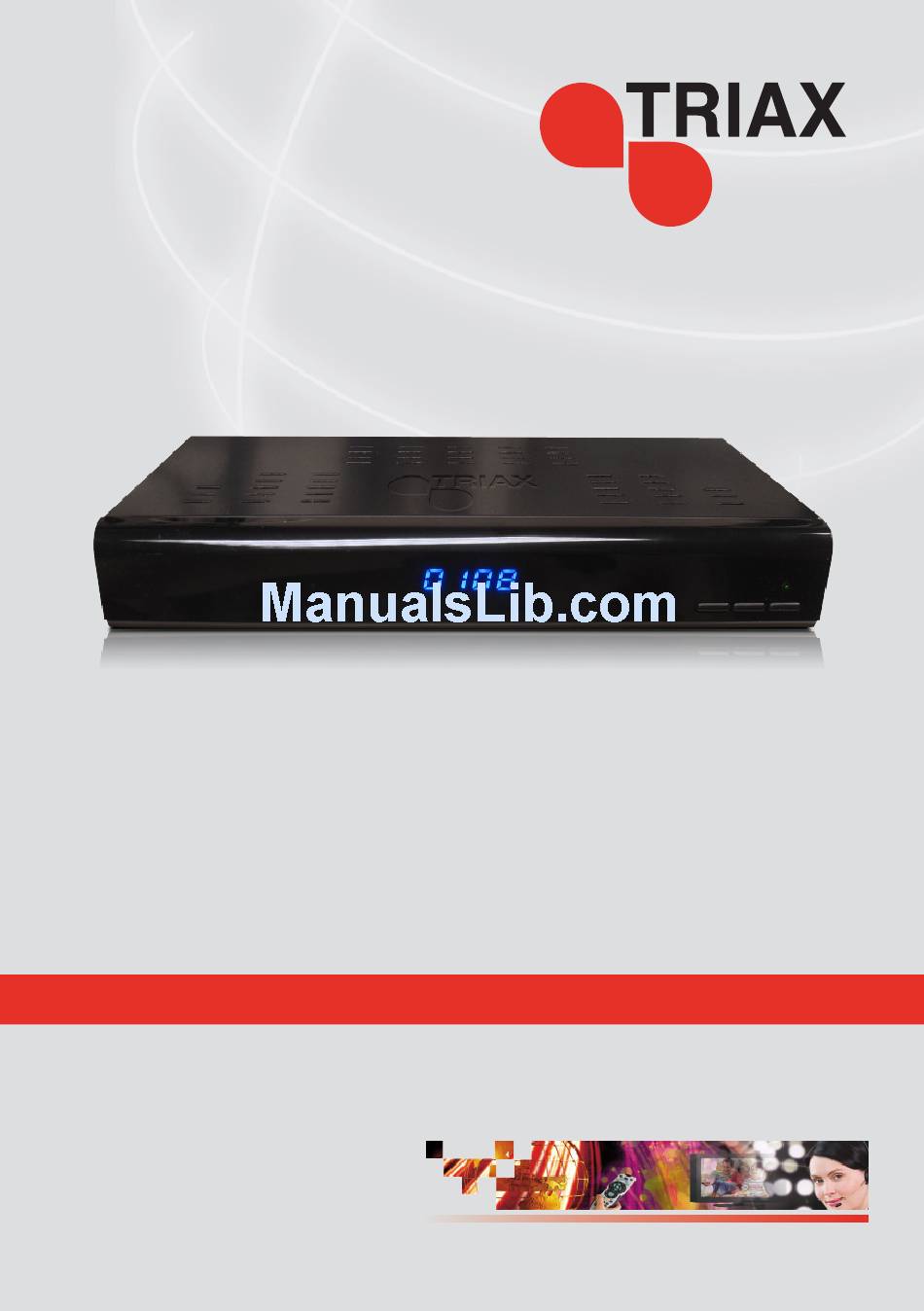

- Page 1 TRIAX HDS 110 FTA HD Satellite Receiver Part No. 305211 Operating Manual TRIAX - your ultimate connection...
-
Page 2: Table Of Contents
The illustrations and the OSD in this operation manual are for explanation and guidance purposes only. • The examples used throughout this manual are based on the HDS 110 model. Dear Triax customer Thank you for purchasing the TRIAX HDS 110 FTA HD Satellite Receiver. -
Page 3: Introduction
Introduction Important Safety Precautions • Cleaning - Unplug the AC power from the mains supply before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product, do not use a chemical cloth to clean it. -
Page 4: Remote Control Unit
Introduction Remote Control Unit STANDBY Switches the receiver into and out of Standby. NUMERICAL KEYS Allows the user to enter numerical values such as a channel number. INFO Press to view channel information. MEDIA Enter Media Menu Enter USB Menu RECORD Record a programme PLAYBACK CONTROLS... -
Page 5: Receiver (Front View)
Introduction Receiver (Front View) Receiver (Rear View) -
Page 6: Supplied Accessories
Introduction Supplied Accessories Remote Control Unit (x1) HDMI Cable (x1) HDS 110 Operating Manual AAA Batteries (x2) -
Page 7: Preparation
Preparation Inserting the batteries Before using the Receiver for the first time, insert the two supplied “AAA” size zinc-carbon batteries. When the batteries become depleted and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries. Open the battery cover. Insert the two supplied “AAA” size zinc-carbon batteries. • Place batteries with their terminals corresponding to the (+) and (-) indications in the battery compartment. -
Page 8: Quick Guide
Quick Guide Initial installation overview Follow the steps below one by one when using the Receiver for the first time Run the Preparation Watch TV Initial Settings Connect the Satellite Turn on the standy button Congratulations! cable to LNB IN on the Receiver You can now watch TV Run the installation guide... -
Page 9: Installation Guide
Installation Guide Getting Started If you are using the Set Top Box (STB) for the first time, the ‘Installation Guide’ menu appears. Press the cursor button to setup the OSD Language and Country settings. Highlight “Channel Search‘, then press the “ok” button to enter “Dish Setup” menu. On the “Dish Setup “ menu the following options are also available: GREEN button: Edit satellite RED button: Add satellite YELLOW button: Delete satellite BLUE button: Search Channels Press the “GOTO’ button to enter the Transponder menu. Pressing “GOTO” again... -
Page 10: Programme Menu
Programme Set a Favourite Channel Programme Main Menu 1. Press the MENU button to enter main menu. Move 2. Press RIGHT or LEFT button to highlight Press the “RED” button. The selected channel will and select the required icon, then press the be marked with the move symbol. Press the ‘UP’ or ‘DOWN’... -
Page 11: Epg Electronic Programme Guide
Programme EPG Electronic Programme Guide In the EPG menu, you can press the ‘RIGHT’ or ‘LEFT’ buttons to change channels. Press the “UP” or “DOWN” buttons to select programmes. Press the “OK” button to schedule an event. Pressing the ‘INFO’ button shows the scheduled events List. Programme Guide Channel Type: TV/Radio Channel No: Press the “LEFT/RIGHT” buttons to change the channel No. -
Page 12: Picture Settings
Picture Settings Picture 1. Press the “MENU” button to enter the main menu. 2. Press the “RIGHT” or “LEFT” buttons to select “Picture”, then press the “OK” button to enter the Picture menu. 3. Press the “UP” or “DOWN” buttons to highlight the desired item. Use the “LEFT” or “RIGHT” buttons to change the item to the required setting. 4. Press the “EXIT” button to return to main menu. The picture menu allows you to set the Aspect Ratio, Resolution, TV Format, and Video Output. Aspect Ratio: Auto//16:9 Pillar Box/ 16:9 Pan & Scan/4:3Letter Box/4:3 Pan &Scan/4:3 Full/16:9 Wide Screen Resolution: 576i/576p/720p/1080i /1080P... -
Page 13: Channel Search
Channel Search DB Management (Database) Main Menu 1. Press the “MENU’ button to enter the main This feature allows the user to save/load a menu. channel list to the STB using a USB memory 2. Press the “RIGHT” or “LEFT” buttons to device. select “Channel Search”, then press the “OK” button to enter the Channel Search menu. 3. Press the “UP” or “DOWN” buttons to highlight the desired item, then press “OK” or “RIGHT” buttons to enter the sub-menu. -
Page 14: Basic Adjustments
Time Settings Time 1. Press the “MENU” button to enter main menu. 2. Press the “RIGHT” or “LEFT” buttons to select the “Time”, press the “OK” button to enter the “Time” menu. 3. Press the “UP” or “DOWN” buttons to select the desired option. Press the “LEFT” or “RIGHT” buttons to set the item to the Auto Standby required setting. The Auto shutdown feature will place the STB 4. Press the “EXIT” button to return to main menu. into standby if there is no user intervention within Time Offset: a set time. This can be set to the following: You can set the time offset to Auto/Manual. -
Page 15: Parental Control
System Settings System Main Menu Set Password 1. Press the “MENU” button to enter main menu. 1. In “System” menu, select “Set Password” 2. Press the “RIGHT” or “LEFT” buttons to highlight and press the “OK” button to enter the menu. “System”. Press the “OK” button to enter the 2. Input the “Old Password” (the default System menu. password is “000000”) 3. Press the “UP” or “DOWN” buttons to highlight Input New Password: (user defined) the desired item. Press the “OK” or “RIGHT” 3. Confirm the new password. buttons to enter the sub-menu. 4) Press the “EXIT” button to return to main menu. *Note: Please keep a record of your password in a safe place see page 23. -
Page 16: System Settings
System Settings Information Hotkey The “Information” menu displays the STB Model In TV viewing mode, you can do the following: Number, SW Version, and HW Version. • Press the UP/DOWN button to change channel. • The Standby button toggles the STB Recall List between Standby and Active modes. • The Mute button toggles between Audio Press the “RIGHT” or “LEFT” buttons to set on/off Press the LEFT/RIGHT button to Recall List to On/Off. When the “Recall List” is adjust volume. On pressing the “Recall” button will display a •... -
Page 17: Usb
USB Main Menu 1. Press the “MENU” button to enter main menu. 2. Press “RIGHT” or “LEFT” buttons to highlight the “USB”. Press the “OK” button to enter the “USB” menu. 3. Press the “UP” or “DOWN” buttons to highlight the desired option. Press the “OK” or “RIGHT” button to enter the sub-menu. 4. Press the ”’EXIT”’ button to return to main menu. Music To Play the selected music file press the “OK” button To Pause the selected music file press the “PAUSE” button To Resume playback press the “PLAY” button To Fast Forward press the “>>” button To Rewind press the “<<” button To go to the next track press the “>>|” button To go to the previous track press the “|<<” button To stop the playback press the “STOP” Multimedia button To move to a specific time in the track press This option allows you to play files from a USB the “GOTO” button and enter the required memory device. You can play music, photos, movies time and PVR files. -
Page 18: Photo
Photo To view the selected photo file press the “OK” The PVR files can also be accessed by pressing button the “MEDIA” button To Play a slide show press the “PLAY” button To Preview the selected recording press the (See “Photo Configure” section for settings) “OK” button To Pause the slideshow press the “PAUSE” Press the “RED” button to toggle between button Preview/Full Screen To Resume the slideshow press the “PLAY” To Play the selected recording press the “PLAY” button button To go to the next photo press the “>>|” button To Pause the selected recording press the To go to the previous photo press the “|<<” “PAUSE” button button To Resume playback press the “PLAY” button To stop the slideshow press the “STOP” button To Fast Forward press the “>>” button Press the “YELLOW/GREEN” button to rotate To Rewind press the “<<” button the picture. -
Page 19: Photo Configure
Subtitle Font Color Photo Configure Set the Movie Subtitle Font Color to Red/ Blue/ Green/ White/ Black The “Photo Configure” menu allows the user to setup a Slide Show. The “Photo Configure” options are shown below: Slide Time Sets the photo slide time to 1, 2, 3,4, 5, 6, 7 or 8 seconds Slide Mode Sets the transition effect between photographs Aspect Ratio Sets the photo Aspect Ratio to Keep/discard... -
Page 20: Instant Record
PVR Configure Cont. Record Record Device Instant record 1. Press the “LEFT” or “RIGHT” buttons to While viewing a programme, pressing the select Record Device. This gives “RECORD” button will instantaneously start to information about the USB memory record the current channel. device connected to the STB. *Note An instant recording must be manually stopped by pressing the “Stop” button. -
Page 21: Appendix
Helpline on 01443 778910 to obtain service or advice (Normal operator charges apply). Alternatively you can email us at: stbsupport@triax.co.uk. In the unlikely event of this equipment requiring repair during the guarantee period, you will need to pro- vide proof of purchase to your point of sale. -
Page 22: Specifications
Appendix Specifications IF INPUT CONNECTOR x1 (F-Type, IEC169-24, FEMALE) IF OUTPUT CONNECTOR x1 TUNER & CHANNEL (F-Type, IEC 169-24, FEMALE (LOOP THROUGH)) FREQUENCY RANGE 950MHz – 2150MHz FEATURES VIDEO DECODER MPEG-2 MP@HL, MPEG-4 SP, DIVX13.11, 4.X, 6.X, FLV Format, H.264, MP@HL, AP(81_3,RM&RMVB) AUDIO DECODER MPEG-1, MPEG-2 (Layer1/11),MP3,ACC-LC 4:3/16:9 VIDEO FORMATS VIDEO OUTPUTS CVBS, RGB, HDMI MODULATION QPSK, 8PSK CONNECTION... -
Page 23: Pin Code Reminder
Appendix PIN Code Reminder NOTE You need to insert the PIN code here and refer it to the pages in the manual where this is covered. IMPORTANT Removal of a lost PIN code could be subject to a service charge. -
Page 24: Trademarks
The copyrights for the software components and various relevant documents included with this product that were developed or written by TRIAX are owned by TRIAX UK LTD and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely distributed software and software components whose copyrights are held by third parties. -
Page 25: End Of Life Disposal
Appendix End of life disposal A. Information on Disposal for Users (private households) In the European Union Attention: If you want to dispose of this equipment, please recycle. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recy- Attention: cling of used electrical and electronic equipment. -
Page 26: Terms Of Guarantee
The product must be correctly installed and operated in accordance with the instructions contained in this operating manual. Triax UK Ltd disclaims any liability for incidental or consequential damages. This guarantee is in addition to, and does not diminish your statutory or legal rights. -
Page 27: Declaration Of Conformity
Triax UK Ltd Abergorki Industrial Estate, Company Address: Treorchy, Rhondda-Cynon-Taff CF42 6DL, UK Triax HDS 110, Part Number 305211 Object of the Declaration: The object of the declaration described above is in conformity with the requirements of the following documents: Low voltage directive 2006/95/EC... - Page 28 Issue 1...
