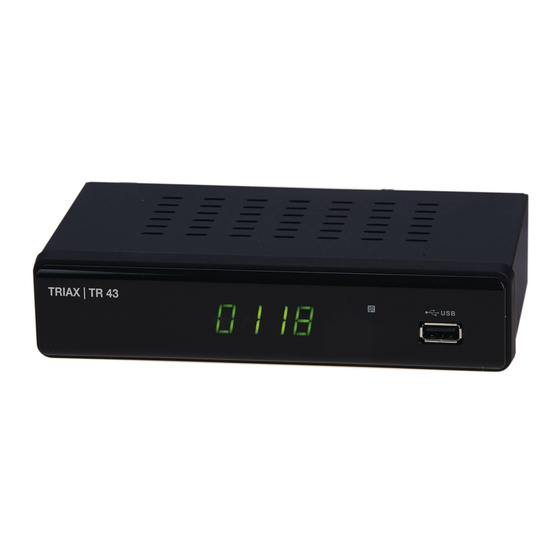

Triax TR-43 User Manual

Thank you for choosing the Triax TR43 this terrestrial receiver is built to a high standard and is designed for many years use
There are many settings in Terrestrial receivers that if not set correctly can cause you to loose pictures.
Please remember every Triax TR43 is fully tested before shipping so if you cannot get pictures please refer to the help chart supplied.
Initial Set up - Out of the Box.
The Triax TR-43 Terrestrial Receiver has been fully programed and
tested.
When you first set up you're TR 43 and there is no pictures press the
"SOS" button on the Remote Control.
Agree to the Warning
(fig 1)
The TR 43 Will now automatically
update it channels.
NOTE: If you have channels out of order after the scan is complete (fig 2)
please wait a minute or two and then repeat the above process.
Automatic search for channels.
To search for new channels on Freeview if they are not added
automatically press the "SOS" and follow the steps as above.
Recover from a Factory Reset
If for some reason you're TRiax TR-43 has been reset (Factory Defaulted)
you will be prompted to set the Receiver up From scratch (fig 3)
Please set up the TR-43 Receiver as per fig 3.
Region: United Kingdom
Language: English
Display Mode: By Source or 1080p_50Hz
Aspect Mode: Auto
You will now see the TR-43 Scanning for channels, do not panic if you see
some of the lines showing Failed. This is normal as we do not broadcast on
every available Frequency.
NOTE: If you have channels out of order after the scan is complete (fig 2)
please wait a minute or two and then follow the Initial Set up steps above.
When you do an auto scan the receiver may find temporary channels
or feeds - these channels may only work on the Receiver for hours
or days, just enjoy these channels while they are working
Only the Freeview channels are full time channels.
Please read through this guide so you can understand your Triax product better -
SOS
(if using HDMI only)
TR-43
(fig 1)
(fig 2)
(fig 3)
(fig 4)
