Summary of Contents for Triax DVB 75SI

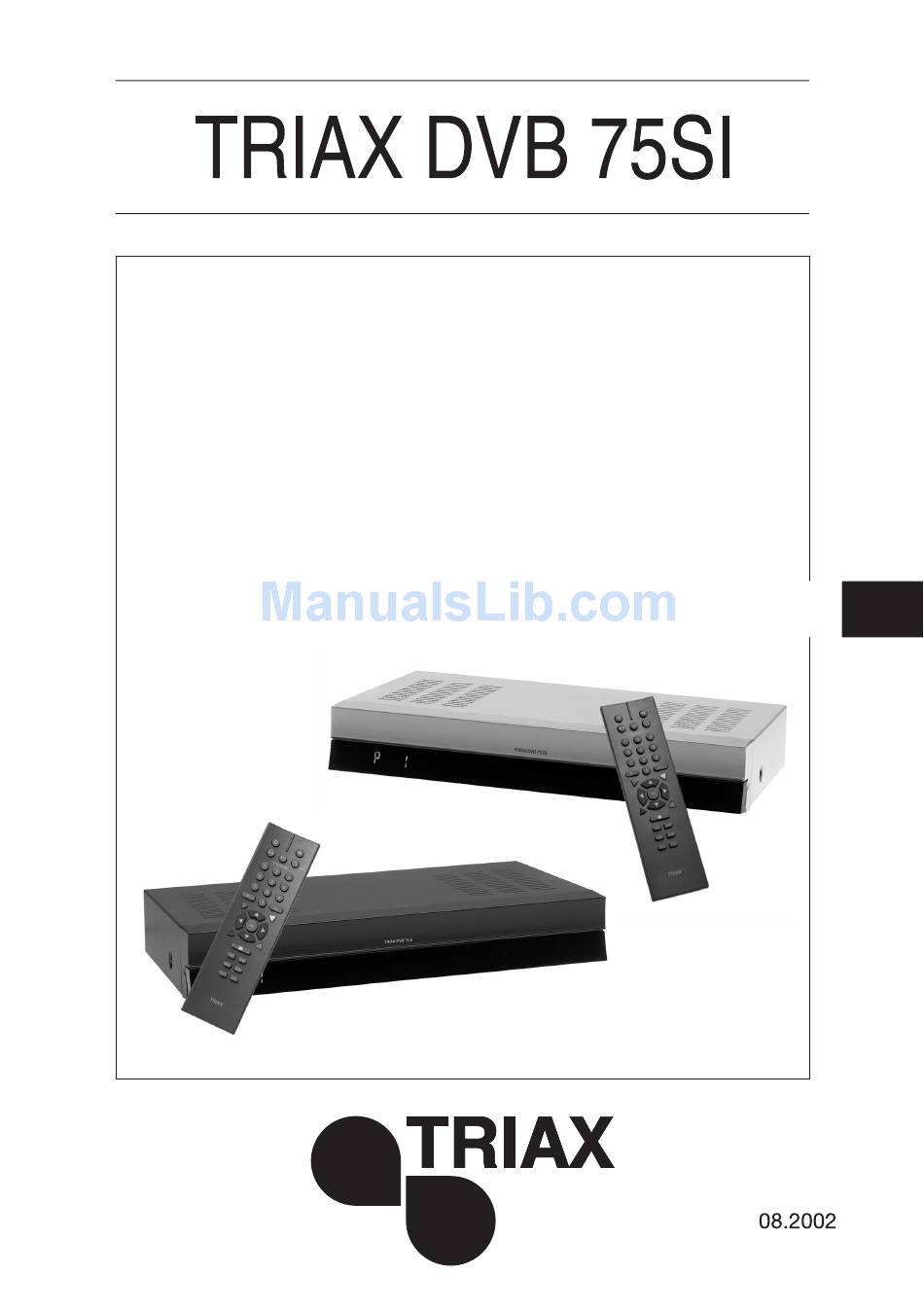

- Page 1 User´s guide...
- Page 2 However, we still recommend that you read the entire user's guide carefully in order to get a complete overview of the many features and possibilities offered by your new Triax DVB 75SI and to get the most out of your new satellite receiver and dish system.
- Page 3 4. Settings (advanced use) ... 20 4.1 The main menu ... 20 4.2 Menu language ... 20 4.3 An outline of the DVB 75SI system menus... 22 5. Troubleshooting ... 24 6. Technical terms ... 24 7. Technical specifications... 26...
- Page 4 TRIAX DVB 75SI The TRIAX DVB75SI is an advanced digital satellite receiver based on the latest technology. In addition to support of DiSEqC functions for controlling switches and LNBs for reception from more than one satellite position, the DVB 75SI features OpenTV (version EN2) and an integrated Electronic Programme Guide (EPG).
- Page 5 The system works by sending 'invisible' data in parallel with the television transmission. This data is called the interactive services . When your DVB 75SI receives an interactive service it will load it into the receiver and execute it. This is very much similar to loading and executing a program on a PC.
- Page 6 TRIAX DVB 75SI 2" M A D E IN G ER M A N Y DISH IN PU T DIGITAL AUDIO OUT DC 13/18V MAX 0,4 A DOLBY DIGITAL / PCM TRIAX DVB 75 SI AERIAL IN TV OUT AUDIO OUT...
- Page 7 25) menu: Activates and displays the receiver main menu for system settings. 26) guide: On Viasat channels the Viasat OpenTV portal application is activated, and on other channels the Triax EPG is activated. TRIAX DVB 75 SI Common Interface slot (For PCMCIA CA modules. For...
- Page 8 A lot of very exciting interactive services are already being offered, which the DVB 75SI will give you access to. And you will no doubt see a lot more in future. It is easy to predict that more and more satellite broadcasters will offer their own interactive EPG in future.
- Page 9 CAM modules. You do not have to have a subscription and a smart card to use your DVB 75SI. But without a subscription you will only be able to receive channels that are free of charge (free-to-air).
- Page 10 Note! • Your DVB 75SI has a pre-programmed channel list as it has been prepared to receive channels from satellites which especially service the Scandinavian countries: Thor/Intelsat (1 deg. West) and Sirius (5 deg.
- Page 11 38, the reason may be that channel 38 or an adjacent channel is already occupied by a programme that you receive via the antenna. You can ascertain this by removing the aerial cable from the connector (ANT IN) on the satellite receiver. TRIAX DVB 75 SI (ANT IN) of the...
- Page 12 TRIAX DVB 75SI If you get a clear picture from the satellite receiver, you must then set your satellite receiver to use another transmitter channel in the range from channel 21 to channel 69 (see below). NOTE: A change of the UHF output channel of the satellite receiver requires a change of setting via the main menu of the receiver.
- Page 13 Hi-fi amplifier. To do this you must connect the Audio R and Audio L connectors at the back of the satellite receiver with a suitable cable to the corresponding input on your Hi-fi amplifier (e.g. AUX, TAPE1 or TAPE2). Analog audio TRIAX DVB 75 SI...
- Page 14 The system software can also be updated via satellite without use of a PC. The DVB 75SI has an integrated telephone modem. You must connect the satellite receiver modem connector via the supplied telephone cable (10 m) to the nearest telephone socket in your house.
- Page 15 On/Standby button on the remote control. With your Triax DVB 75SI satellite receiver you can now enjoy the many digital channels and interactive services at your disposal.
- Page 16 TRIAX DVB 75SI This section describes the satellite receiver functions which you will need every day, and which can be operated via your remote control. When your satellite receiver has been connected to the wall socket (and the electric current has been switched on), you may switch the satellite receiver on and off by pressing the [standby] button of the satellite receiver.
- Page 17 As an alternative to the methods for change of channel described above a screen picture can display the active programme list. TRIAX DVB 75 SI If you hesitate more than 3 seconds after entering a number of the channel number, the satellite receiver assumes that you have completed your entries and switches to the channel number entered.
- Page 18 If no other screen menus are displayed on the screen, graphics indicating the relative volume will be displayed in the top right-hand corner, and the DVB 75SI will commit this setting to memory. With the [i] button of the remote control you can get...
- Page 19 Left mono With the [TV/R] button of the remote control you can change between the TV and radio programme lists of the DVB 75SI. At the same time you will change between TV and radio reception. Digital Audio The operation is the same of the two programme lists but during reception of radio programmes a black TV picture is shown.
- Page 20 If you find that the basic settings of the satellite receiver meet your demands, you do not have to change any of them. When you have connected your new Triax DVB 75SI satellite receiver and started using it, you can optimise it for your own use if you wish.
- Page 21 [back] button if you want to change other system settings. NOTE: As described in section 3.1, your DVB 75SI receiver has four programme lists, which can be activated through the four coloured buttons when the receiver is switched on from standby mode. As a starting point, the pre-programmed programme lists are designed for different countries (see 3.1).
- Page 22 TRIAX DVB 75SI Press the [menu] button of the remote control to open Main menu Menu language TV programmes Radio programmes Search Search programme Search transponder Select channel for list Move channel in list Lock channel EPG (active after update)
- Page 23 Basic settings Change of PIN code (standard code = 0000) Settings Service channel for downloading of new software version. TRIAX DVB 75 SI LNB set-up System Information Access settings Factory/default setting Timer settings Data for LNB (position) Set satellite position...
- Page 24 (625 lines and 50 Hz picture frequency) requires a digital data amount of 216 Mbit/s. This would require transmission Remedy Check mains cable and socket Turn off DVB 75SI, remove short circuit and turn receiver on again. Check all cable connections Replace LNB point at satellite correctly.
- Page 25 Connecting cable between LNB and satellite receiver, for transmission of signals received and for supply of power to LNB unit. TRIAX DVB 75 SI LNB/LNC: (Low Noise Block Converter): Receiving unit in the dish focus, converts the satellite frequency range to the intermediate frequency of the receiver.
- Page 26 TRIAX DVB 75SI circular left or circular right). Reception of both types of polarisation requires two single LNBs or a V/H-LNB (Universal LNB). Receiver: see satellite receiver Satellite: A designation for the transmitting unit in space. Most often referred to by name and position, e.g.
-
Page 27: Vcr Scart
Programme number, favourite list, radio: 999 radio programmes (R1 to R999) Programme memory: TV/radio: a total of 4000 programmes. TRIAX DVB 75 SI Favourite lists: 3 lists, assigned red, yellow and blue buttons on the remote control. Green button gives access to standard...
