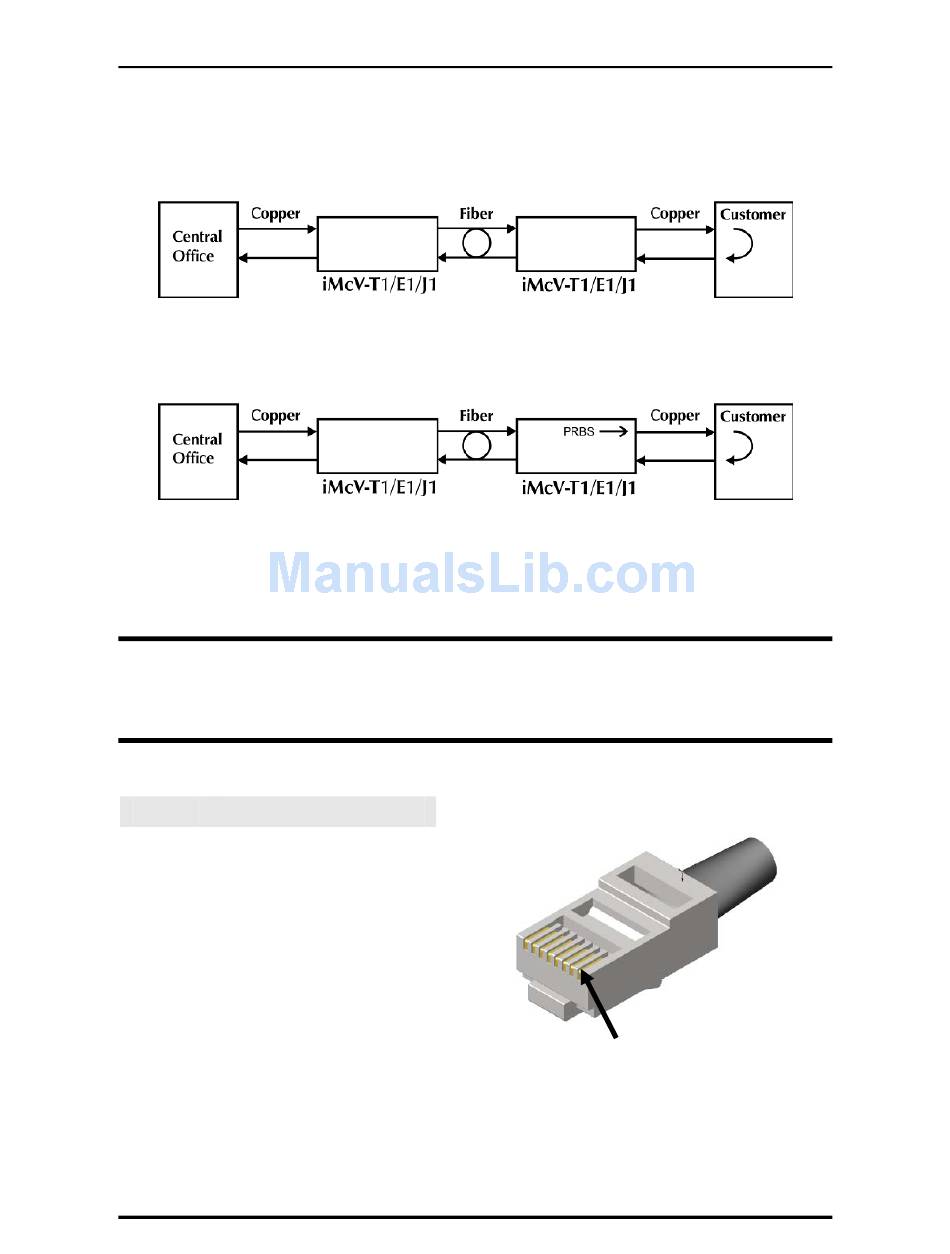

Testing with Pseudorandom Bit Sequence (PRBS)
To test the copper segment from the Remote module to the Customer Premises
Equipment (CPE) by using PRBS, perform the following:
1. Set the CPE to loopback the signal.
2. Set the Remote module to generate PRBSs
(DIP Switch S2-9=On and S2-10=Off).
Check the LEDs to verify errors are not received (refer to the Module LED Functions
section for more information).

Fiber Optic Specifications

For fiber optic specifications, visit our Web site at www.imcnetworks.com.

RJ-48 Pinout

The following table lists the pin configuration for the RJ-48 connector.
Pin Signal
1 Receive Ring
2 Receive Tip
3 No Connection
4 Transmit Ring
5 Transmit Tip
6 No Connection
7 No Connection
8 No Connection
PIN 1
