Tascam CD-A700 Technical Documentation

PRODUCT OVERVIEW
TASCAM's CD-A700 combines
popular consumer media formats into
box. The CD player and
one
cassette deck can act as totally
separate units with individual
outputs in the back, or take
advantage of the combination
rack with direct dubbing, long
play capabilities, and an input-saving cascade output mode. The CD-A700 is equipped with balanced
(XLR) and unbalanced (RCA) inputs and outputs plus digital coax SPDIF. A wireless remote control is
included.
Integrated CD Player & Reversible Cassette
Deck
3-U Rack Mount Design
± 12% Pitch Control on CD and Cassette
Deck
Return To Zero Function on Cassette Deck
Wireless Remote Control Included
Headphone Output with Level Control
CONSULTANT'S AND SYSTEM DESIGN SPECIFICATIONS

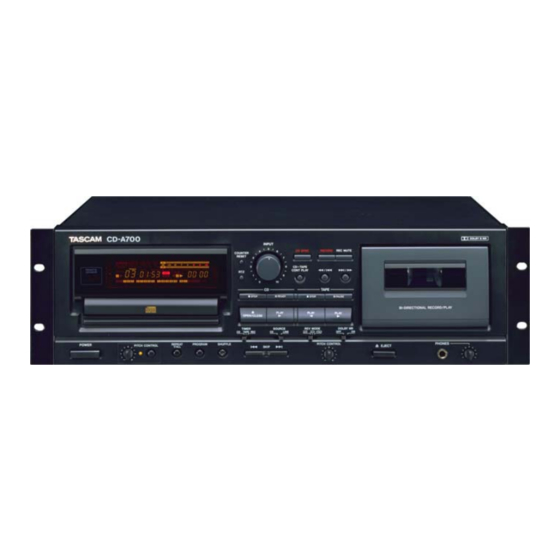

The TASCAM CD-A700 is a 3U rack-mountable combination CD player, tray loaded mechanism,
and cassette deck, two-head bi-directional player recorder. The unit offers the ability to record
directly from the CD to the cassette; or, onto the cassette from an external source.
The cassette deck provides 12 +/- Pitch Control, Dolby B noise reduction, and its counter reset has
an RTZ function. Rear panel I/O consists of balanced (XLR) and unbalanced (RCA) connectors
with front panel input volume control.
The CD player offers Program Play, Shuffle Play and allows continuous play of one or all tracks.
Output via rear panel balanced (XLR) and unbalanced (RCA) jacks. Digital output is available
through coax S/PDIF jacks.
The combination provides power on play/record and includes a wireless remote (RC-A500).
Additional control is accessible through a DB15 parallel port.
TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
CD-A700
Technical Documentation
Continuous Play function between Cassette &
CD
Program Play and Shuffle Play Modes
Dolby B Noise Reduction on Cassette
Mechanism
Balanced XLR and Unbalanced RCA Analog I/O
SPDIF Coaxial Output from CD Player
Control I/O for Custom Remotes & Tallies
http://www.tascamcontractor.com
MSRP $650.00
1
TASCAM CD-A700
