- Page 1 ADJUSTABLE SPONGE SANDER MODEL G0565 INSTRUCTION MANUAL COPYRIGHT © AUGUST, 2004 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #EW6331 PRINTED IN TAIWAN...
- Page 2 Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
-
Page 3: Table Of Contents
Sanding ... 16 Sanding Drums ... 16 SECTION 5: ACCESSORIES ... 17 SECTION 6: MAINTENANCE ... 19 General ... 19 Cleaning ... 19 G0565 Parts Breakdown ... 20 G0565 Parts List ... 23 Troubleshooting ... 25 Warranty and Returns... 26... -
Page 4: Introduction
INTRODUCTION Foreword We are proud to offer the Model G0565 Adjustable Sponge Sander. This machine is part of a grow- ing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s com-... -
Page 5: Machine Data Sheet
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 MODEL G0565 SPONGE SANDER Design Type ... Floor Model Overall Dimensions and Specifications: Width ... 39" Height ... 54" Depth ... 23" Footprint ... 22 Cabinet Height (Stand) ... -
Page 6: Identification

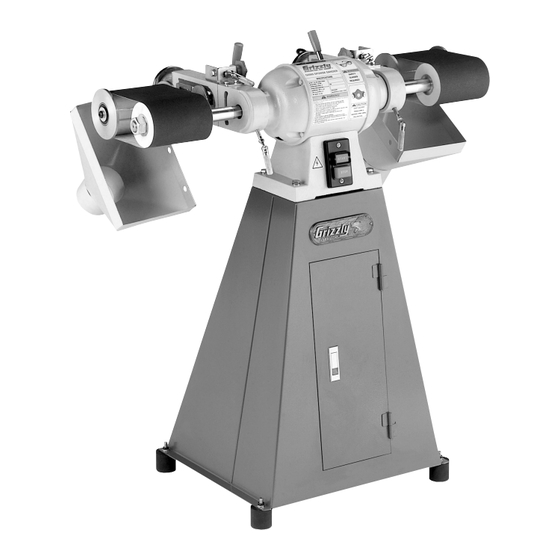

G0565 Adjustable Sponge Sander... -
Page 7: Section 1: Safety
ANSI SAFETY GLASSES WHEN OPERATING MACHINERY. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses. G0565 Adjustable Sponge Sander 4. ALWAYS WEAR AN ANSI APPROVED RESPIRATOR MACHINERY. MACHINERY THAT PRODUCES DUST. Wood dust is a carcinogen and can cause cancer and severe respiratory illnesses. - Page 8 23. MANY MACHINES WILL EJECT THE WORKPIECETOWARDTHEOPERATOR. Know and avoid conditions that cause the workpiece to be ejected. 24. ALWAYS SERVICING BEFORE OPERATING MACHINERY. ADJUSTING KEYS DAMAGED PARTS LOCK MOBILE BASES G0565 Adjustable Sponge Sander...
-
Page 9: Additional Safety Instructions For Sanders
Always wear a respirator when oper- ating Model G0565. G0565 Adjustable Sponge Sander SANDING DIRECTION. NEVER sand tapered or pointed stock with the point fac- ing the feed direction. EXCESSIVE FORCE. DO NOT attempt to sand faster by applying extra pressure. -
Page 10: Section 2: Circuit Requirements
DO NOT connect the machine to the power source until instructed to do so. Amperage Draw The 1 HP motor on the Model G0565 will draw the following amps: Amperage Draw ... 9 Amps Circuit Breaker Requirements... -
Page 11: Section 3: Set Up
Flat Head Screwdriver ... 1 • Wrench 9/16" ... 1 Unpacking The Model G0565 was carefully packed when it left our warehouse. If you discover the machine is damaged after you have signed for delivery, please immediately call Customer Service at (570) 546-9663 for advice. -
Page 12: Inventory
-10- Site Considerations Floor Load The Model G0565 weighs 167 lbs. and has a base footprint of 22 ⁄ " W x 19" D. Most commer- cial floors are suitable for your machine. Some residential floors may require additional reinforce- ment to support both the machine and operator. -
Page 13: Clean Up
Wipe off this protective coating with a clean dry rag and apply a solvent cleaner or citrus-based degreaser such as Grizzly’s G7895 Degreaser to remove any residue. To clean thor- oughly, some parts may need to be removed. For... -
Page 14: Test Run
If the sander seems to be running correctly, let it run for a short time to ensure that the moving parts are working properly. If any problem develops, correct it before attempt- ing to use the machine. G0565 Adjustable Sponge Sander... -
Page 15: Section 4: Operations
OMMEND that you read books, trade maga- zines, or get formal training before begin- ning any projects. Regardless of the con- tent in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training. G0565 Adjustable Sponge Sander... -
Page 16: Belt Tracking
3 and make fine adjustments until the sanding belt tracks in the center of the drum. 8. Turn the sander ON and allow it to run for several minutes without use. —If the belt is not tracking correctly, return... -
Page 17: Belt Tilt
Figure 8. Belt tilt lock lever. 3. Rotate the sanding belt to the desired angle. 4. Tighten the belt tilt lock lever. G0565 Adjustable Sponge Sander The dust hoods easily tilt to funnel the maximum amount of dust into the dust collection system. -
Page 18: Sanding
Figure 11 . Replacing the sanding drums. Slide the sanding drum off of the spindle and slide the replacement drum on. Thread the nut onto the spindle and tighten it with the open end and arbor wrenches. G0565 Adjustable Sponge Sander... -
Page 19: Section 5: Accessories
Also compatible with safety glasses! Figure . Half-mask respirator and filters. G0565 Adjustable Sponge Sander T20501—Face Shield, 4" Crown, Clear T20502—Face Shield, 7" Crown, Clear T20448—Ecomony Clear Safety Glasses T20452—"Kirova" Anti-Reflective Glasses T20456—"Dakura"... - Page 20 Hard—4" X 6" X 1" ... H5856 Medium—2" X 6" X 1" ... H5861 Medium—3" X 6" X 1" ... H5860 Medium—4" X 6" X 1" ... H5859 Figure 19 . Sponge sanding drums. G0565 Adjustable Sponge Sander Model Model...
-
Page 21: Section 6: Maintenance
Other conditions that could hamper the safe operation of this machine. G0565 Adjustable Sponge Sander Cleaning the Model G0565 is relatively easy. Vacuum up excess sawdust, and wipe off the adjust- remaining dust with a dry cloth. Keep bare metal... -
Page 22: G0565 Parts Breakdown
������ �������� ������ ��� ������ �������� �������� ���� ������� �� ����� �������� �� ����� ����� ������� -20- �� �� � �� �� �� � �� �� �� � � �� �� � G0565 Adjustable Sponge Sander �� �� � � � �... - Page 23 ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� -21- G0565 Adjustable Sponge Sander...
- Page 24 ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� -22- G0565 Adjustable Sponge Sander...
-
Page 25: G0565 Parts List
MACHINE ID LABEL PLABEL-32 DUST MASK LABEL PLABEL-11 SAFETY GLASSES LABEL PLABEL-14 ELECTRICITY LABEL P0565027 ROTATION DIRECTION LABEL P0565028 TIGHT/LOOSE LABEL G0565 Adjustable Sponge Sander G0565 Parts List REF PART # P0565029 101 P0565101 102 PW01M 103 PB30M 104 P0565104... - Page 26 LOCK HANDLE 3/8 X 12 238 PW02 FLAT WASHER 3/8 239 P0565139 SPRING 2.0 X 67MM 240 PW02 FLAT WASHER 3/8 241 P0565141 STAR KNOB 3/8-16 (FEMALE) 242 PLW03M LOCK WASHER 6MM 243 PB02M HEX BOLT M6-1.0 X 12 G0565 Adjustable Sponge Sander...
-
Page 27: Troubleshooting
Motor overheats. Motor stalls (resulting in blown fuses or tripped circuit). Vibration when running or cutting. G0565 Adjustable Sponge Sander Troubleshooting Possible Cause 1. Low voltage. 2. Open circuit in motor or loose connec- tions. -
Page 28: Warranty And Returns
Warranty and Returns Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 29 ___Yes Would you recommend Grizzly Industrial to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly custom- ers in your area? Note: We never use names more than three times. ___Yes Comments: ________________________________________________...
- Page 30 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
- Page 32 Buy Direct and Save with Grizzly Visit Our Website Today And Discover Why • • • – Trusted, Proven and a Great Value! ® Grizzly Is The Industry Leader! ® SECURE ORDERING ORDERS SHIPPED WITHIN 24 HOURS E-MAIL RESPONSE WITHIN ONE HOUR...
