COMPONENTS
Technisches Handbuch / Technical Manual
Mainboard D1555

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1555 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fujitsu Siemens Computers D1555

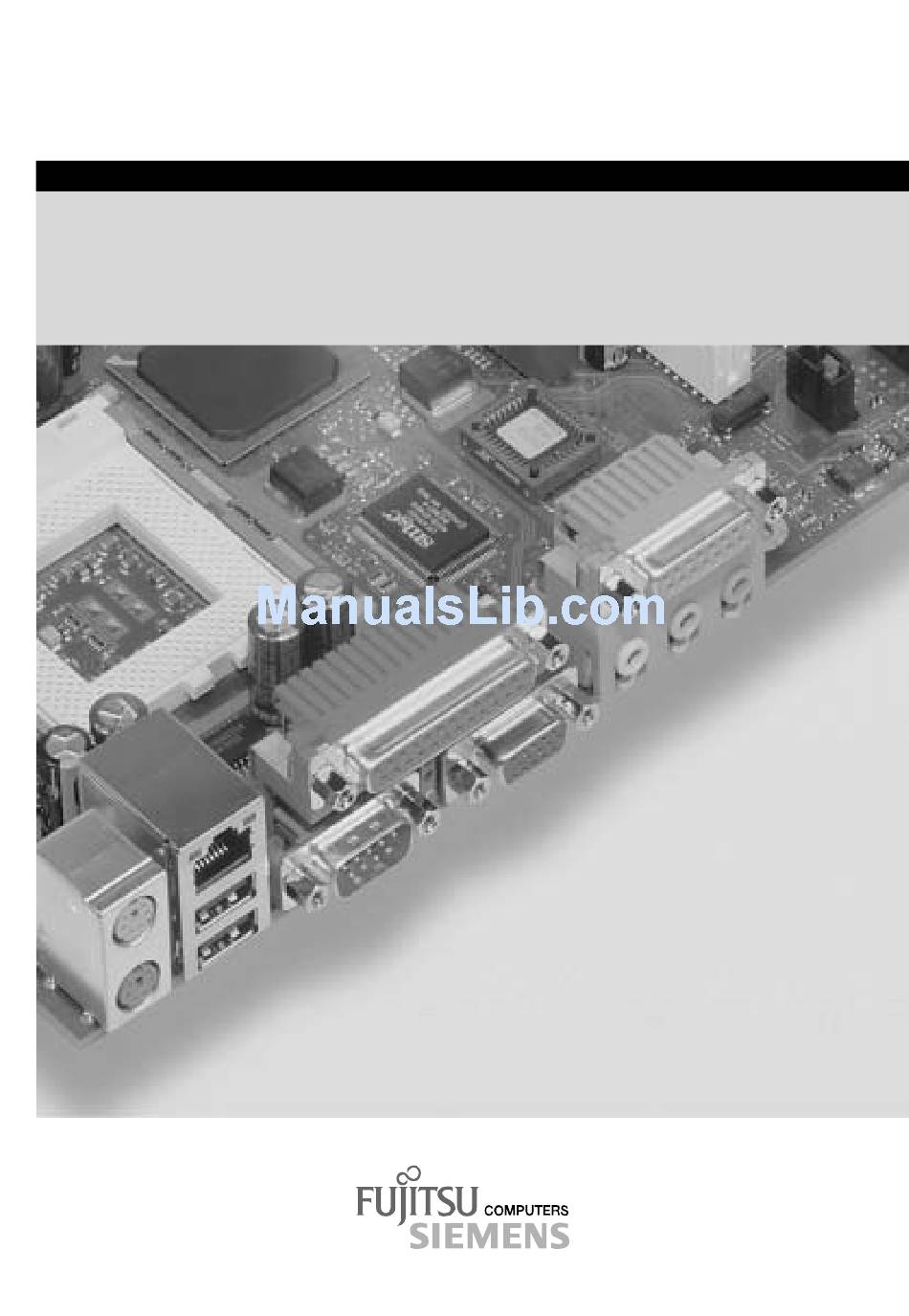

  • Page 1 COMPONENTS Technisches Handbuch / Technical Manual Mainboard D1555...
  • Page 2 ... any technical problems or other questions you need clarified? Please contact: your sales partner your sales outlet You will find further information in the manuals "Safety" and "Ergonomics". The latest information and updates (e. g. BIOS update) on our mainboards can be found on the Internet under: http://www.fujitsu-siemens.com/mainboards...
  • Page 4 Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26361-D1555-Z120-1-6319 Bestell-Nr./Order No.: Printed in the Federal Republic of Germany AG 1002...
  • Page 5 Deutsch English Mainboard D1555 Français Technisches Handbuch Technical Manual Ausgabe Oktober 2002 October 2002 edition...
  • Page 6 Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Inhaber und werden als geschützt anerkannt. Copyright ã Fujitsu Siemens Computers GmbH 2002 Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
  • Page 7 Übersicht/Overview Mainboard D1555 Stromversorgung / Power supply Interne Anschlüsse und Steckplätze / Internal Bedienfeld / Front panel connectors and slots USB C/D USB E/F Diskettenlaufwerk / Floppy disk drive IDE-Laufwerke 3/4 / IDE-drives 3/4 IDE-Laufwerke 1/2 / IDE-drives 1/2 Batterie / Battery...
  • Page 9: Table Of Contents

    Contents Mainboard D1555 ..........................1 Notational conventions ......................1 Important notes..........................2 Information about boards ......................2 List of features...........................3 Special features.........................4 Brief instructions on installing mainboard...................5 Prior to installation ........................5 Interfaces and connectors ......................7 External ports ............................7 Internal ports and connectors ......................7 Hard disk connection .........................7 Pin assignment of internal ports......................8...
  • Page 11: Mainboard D1555

    Mainboard D1555 Your mainboard is available in different configuration levels. Depending on the configuration chosen, some of the hardware components described may not be available on your mainboard. Further information Information on the BIOS Setup and additional descriptions of the drivers are contained:...
  • Page 12: Important Notes

    The equipment and tools you use must be free of static charges. Remove the power plug from the mains supply before inserting or removing boards containing ESDs. Always hold boards with ESDs by their edges. Never touch pins or conductors on boards fitted with ESDs. 2 - English A26361-D1555-Z120-1-6319...
  • Page 13: List Of Features

    SmartCard Reader Support (USB / serial) - / - Temperature monitoring System Monitoring Fujitsu Siemens Computers Keyboard Power Button Support Internal ports DIMM slots (DDR 333 SDRAM / DDR 266 SDRAM) 2 / 3 AGP Slot (4/8x, 32 bit, 66 MHz, 1.5 V) PCI slot (32-bit, 33 MHz, 5 V and 3.3 V)
  • Page 14: Special Features

    If an error occurs during a BIOS update (e.g. due to a power failure), the system BIOS will be destroyed. All Fujitsu Siemens Computers mainboards are equipped with a recovery BIOS. With it a destroyed BIOS can easily be restored. Exact instructions are provided in the chapter "BIOS Recovery - Recovering System BIOS".
  • Page 15: Brief Instructions On Installing Mainboard

    (power supply unit, case connections such as ATX on/off switch, hard disk or floppy disk drive). You should not install additional cards and devices until this minimum configuration successfully boots (see chapter entitled "Add-on modules / Upgrading". English - 5 A26361-D1555-Z120-1-6319...
  • Page 16: Driver Installation

    Connect the plugs for the power supply, control panel and drives to the corresponding connections on the mainboard. Driver installation Ê Install the drivers for the chipset. You may find the driver on the "Drivers & Utilities" CD. Please refer to chapter "Drivers" for a description of installing drivers. 6 - English A26361-D1555-Z120-1-6319...
  • Page 17: Interfaces And Connectors

    An ultra ATA/66, ultra ATA/100 or ultra ATA/133 hard disk must be connected with a cable especially designed for the ultra ATA/66, ultra ATA/100 or ultra ATA/133 mode. Ê Connect the end of the cable marked with blue to the mainboard. English - 7 A26361-D1555-Z120-1-6319...
  • Page 18: Pin Assignment Of Internal Ports

    "APM and ACPI system status, energy-saving modes"). C/D - dual channel E/F - dual channel (internal or external via special cable) Signal Signal VCC C VCC D Data negative C Data negative D Data positive C Data positive D not connected 8 - English A26361-D1555-Z120-1-6319...
  • Page 19 If the audio front panel is not used, you must plug jumpers on pinpairs 5/6 and 9/10. Audio S/PDIF Signal SPDIF out CD-ROM audio Signal Left CD audio input CD GND CD GND Right CD audio input English - 9 A26361-D1555-Z120-1-6319...
  • Page 20 Lüfter 2 / Fan 2 (system fan - only for 3 pin fans) Signal Fix Fan voltage (+12 V, max. 1 A) Fan sense Stromversorgung ATX12 V / Power supply ATX12 V Signal Signal +12 V +12 V 10 - English A26361-D1555-Z120-1-6319...
  • Page 21 Stromversorgung ATX / Power supply ATX Signal Signal +3.3V(P2V2P) +3.3V(P2V2P) +3.3V(P2V2P) -12V (P12VN) +5V (VCC) PS on (low asserted) +5V (VCC) Powergood (high asserted) -5V (5PVN) +5V Auxiliary (VCC Aux) +5V (VCC) +12V (P12VP) +5V (VCC) English - 11 A26361-D1555-Z120-1-6319...
  • Page 22: Settings With Switches And Jumpers

    The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS- Diskette" restores the System BIOS on the mainboard. Normal operation (default setting). Reserved - switch 3 and switch 4 Switch 3 and 4 are reserved. The position of the switch doesn't matter. English - 12 A26361-D1555-Z120-1-6319...
  • Page 23: Add-On Modules / Upgrading

    (A) with regard to the position (4). The angled corner of the processor can also be at a different location than shown in the illustration. Ê Push the lever back down until it clicks into place (5). English - 13 A26361-D1555-Z120-1-6319...
  • Page 24: Mounting Heat Sink

    Depending on the processor variant, clips may also be supplied for mounting the heat sink that fix it in place. Ê When you have mounted the optional fan, connect the fan plug to the corresponding connection on the mainboard. 14 - English A26361-D1555-Z120-1-6319...
  • Page 25: Upgrading Main Memory

    32, 64, 128, 256, 512 or 1024 Mbyte for one socket A current list of the memory modules recommended for this mainboard is available on the Internet at: www.fujitsu-siemens.de/mainboards. At least one memory module must be installed. You may only use three double-sided memory modules for DDR 266 modules.
  • Page 26: Upgrading Agp Screen Controllers

    PCI IRQ Lines connect AGP slots, PCI slots and onboard components to the interrupt controller. PCI IRQ Lines are permanently wired on the mainboard. Which ISA IRQs are assigned to the PCI IRQ Lines is normally automatically specified by the BIOS (see description in "BIOS Setup"). 16 - English A26361-D1555-Z120-1-6319...
  • Page 27 PCI slot with IRQ sharing, check whether the expansion card properly supports IRQ sharing with the other devices on this PCI IRQ Line. The drivers of all cards and components on this PCI IRQ Line must also support IRQ sharing. English - 17 A26361-D1555-Z120-1-6319...
  • Page 28: Replacing The Lithium Battery

    Press the locking lug in the direction of the arrow; the battery jumps somewhat out of the holder (1). Ê Remove the battery (2). Ê Push the new lithium battery of the identical type into the holder (3) and press it downward until it engages (4). 18 - English A26361-D1555-Z120-1-6319...
  • Page 29: Bios Update

    BIOS update BIOS update When should a BIOS update be carried out? Fujitsu Siemens Computers makes new BIOS versions available to ensure compatibility to new operating systems, new software or new hardware. In addition, new BIOS functions can also be integrated.
  • Page 30: Bios Recovery - Recovering System Bios

    To guarantee the best possible performance and error-free operation, Intel recommends updating the microcode for every new processor. Intel refers to the use of the processor without microcode updates as operation outside the specifications. 20 - English A26361-D1555-Z120-1-6319...
  • Page 31: Drivers

    Drivers Safety for processor on Fujitsu Siemens Computers mainboards If the processor uses an old or incorrect microcode, error-free operation cannot be ensured. Fujitsu Siemens Computers has therefore implemented a function on its mainboards that interrupts the booting process if no suitable microcode is available for the installed processor. The output error message is Patch for installed CPU not loaded.
  • Page 32: Annex

    Mainboard current requirement You require a Pentium4 power supply nit as per the ATX12V specification for this mainboard. If you do not have a PC from Fujitsu Siemens Computer, make sure that the power supply unit provides the required amperages.
  • Page 33: Apm And Acpi System Status, Energy-Saving Modes

    * G = Global status; S = System status The power supply unit must provide sufficiently loadable 5 V standby voltage. To use the WOL functionality the power supply must provide a 5 V auxiliary voltage (5V SB) of at least 1 A. English - 23 A26361-D1555-Z120-1-6319...
  • Page 34: Mainboard Revision And Bios Version

    . Mainboard Revision The revision status of the mainboard exactly identifies which mainboard you have. It is indicated on a sticker on the edge of the mainboard: D1555-B10 GS 1 05618476 Example Mainboard-Revision BIOS version The BIOS version can be displayed in the BIOS Setup.
  • Page 35: Error Messages

    Available CPUs do not support the same bus frequency - System halted! Memory type mixing detected Non Fujitsu Siemens Memory Module detected - Warranty void There are more than 32 32 RDRAM devices in the system Check whether the system configuration has changed. If necessary, correct the settings.
  • Page 36 Keyboard error Check that the keyboard is connected properly. Keyboard error nn nn Stuck Key Release the key on the keyboard (nn is the hexadecimal code for the key). 26 - English A26361-D1555-Z120-1-6319...
  • Page 37 = Group number x = Number of SEs found on the communication bus y = Number of SEs entered in Number of connected SE k1, k2 ... = Device ID of the storage extensions found English - 27 A26361-D1555-Z120-1-6319...
  • Page 38 Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre. Verify CPU frequency selection in Setup The frequency setting for the processor is invalid. Correct the BIOS Setup and the setting. 28 - English A26361-D1555-Z120-1-6319...
  • Page 39: Glossary

    Universal Serial Bus GMCH Graphics and Memory Controller Video Graphic Adapter Graphics Performance Wake On LAN Accelerator Inter Integrated Circuit IAPC Instantly Available Power Managed Desktop PC Design I/O Controller Hub Intelligent Drive Electronics IPSEC Internet Protocol Security English - 29 A26361-D1555-Z120-1-6319...
