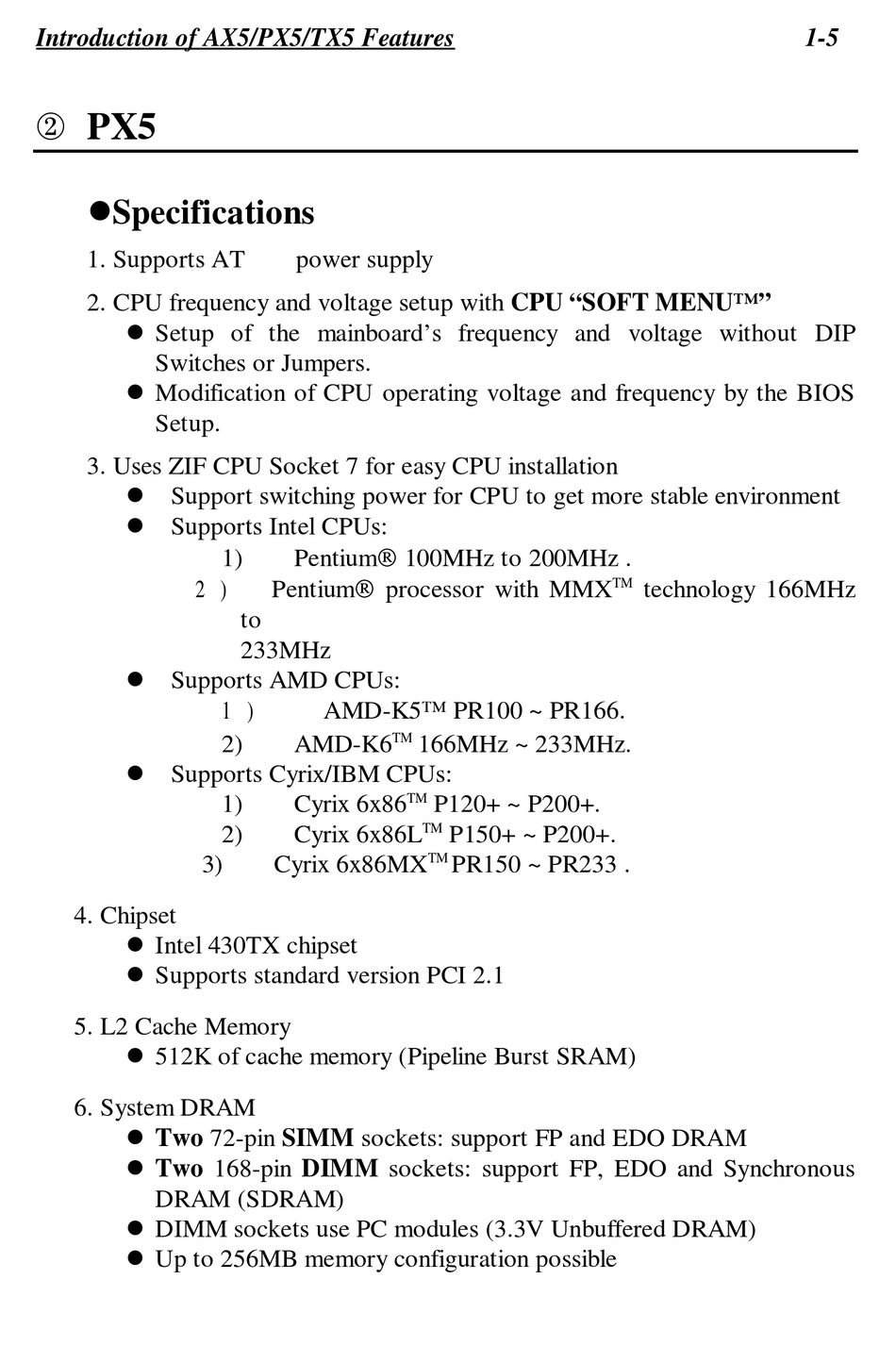

Introduction of AX5/PX5/TX5 Features

- PX5

n

Specifications

1. Supports AT
2. CPU frequency and voltage setup with CPU "SOFT MENU™"
l Setup of the mainboard's frequency and voltage without DIP
Switches or Jumpers.
l Modification of CPU operating voltage and frequency by the BIOS
Setup.
3. Uses ZIF CPU Socket 7 for easy CPU installation
l Support switching power for CPU to get more stable environment
l Supports Intel CPUs:
2 )
l Supports AMD CPUs:
l Supports Cyrix/IBM CPUs:
3)
4. Chipset
l Intel 430TX chipset
l Supports standard version PCI 2.1
5. L2 Cache Memory
l 512K of cache memory (Pipeline Burst SRAM)
6. System DRAM
l Two 72-pin SIMM sockets: support FP and EDO DRAM
l Two 168-pin DIMM sockets: support FP, EDO and Synchronous
DRAM (SDRAM)
l DIMM sockets use PC modules (3.3V Unbuffered DRAM)
l Up to 256MB memory configuration possible
power supply
1) Pentium 100MHz to 200MHz .
Pentium processor with MMX
to
233MHz
1 )
AMD-K5™ PR100 ~ PR166.
2) AMD-K6
1) Cyrix 6x86
2) Cyrix 6x86L
Cyrix 6x86MX
TM
166MHz ~ 233MHz.
TM
P120+ ~ P200+.
TM
P150+ ~ P200+.
TM
PR150 ~ PR233 .
TM
technology 166MHz
1-5
