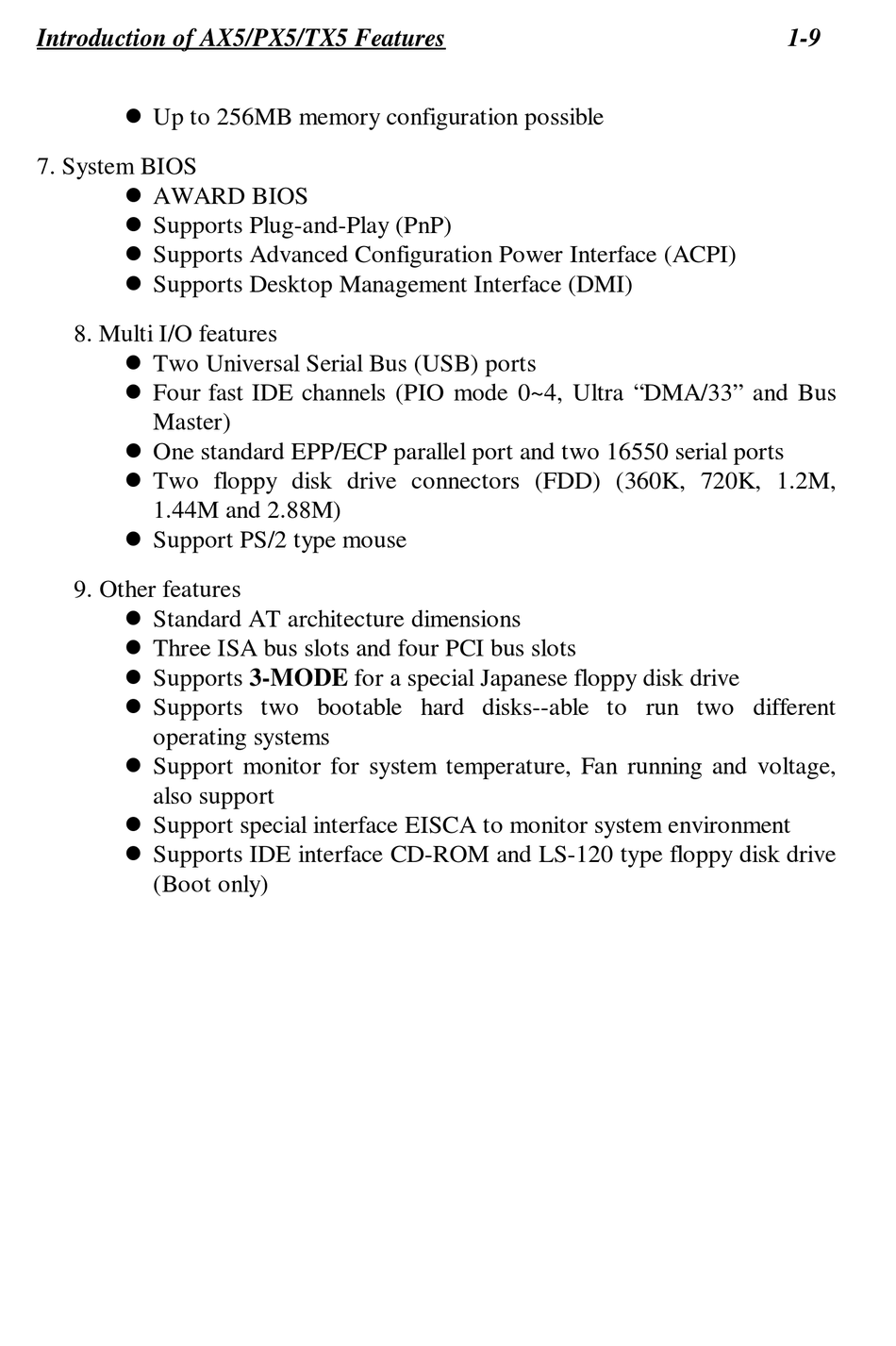

Introduction of AX5/PX5/TX5 Features
l Up to 256MB memory configuration possible
7. System BIOS
l AWARD BIOS
l Supports Plug-and-Play (PnP)
l Supports Advanced Configuration Power Interface (ACPI)
l Supports Desktop Management Interface (DMI)
8. Multi I/O features
l Two Universal Serial Bus (USB) ports
l Four fast IDE channels (PIO mode 0~4, Ultra "DMA/33" and Bus
Master)
l One standard EPP/ECP parallel port and two 16550 serial ports
l Two floppy disk drive connectors (FDD) (360K, 720K, 1.2M,
1.44M and 2.88M)
l Support PS/2 type mouse
9. Other features
l Standard AT architecture dimensions
l Three ISA bus slots and four PCI bus slots
l Supports 3-MODE for a special Japanese floppy disk drive
l Supports two bootable hard disks--able to run two different
operating systems
l Support monitor for system temperature, Fan running and voltage,
also support
l Support special interface EISCA to monitor system environment
l Supports IDE interface CD-ROM and LS-120 type floppy disk drive
(Boot only)
1-9
