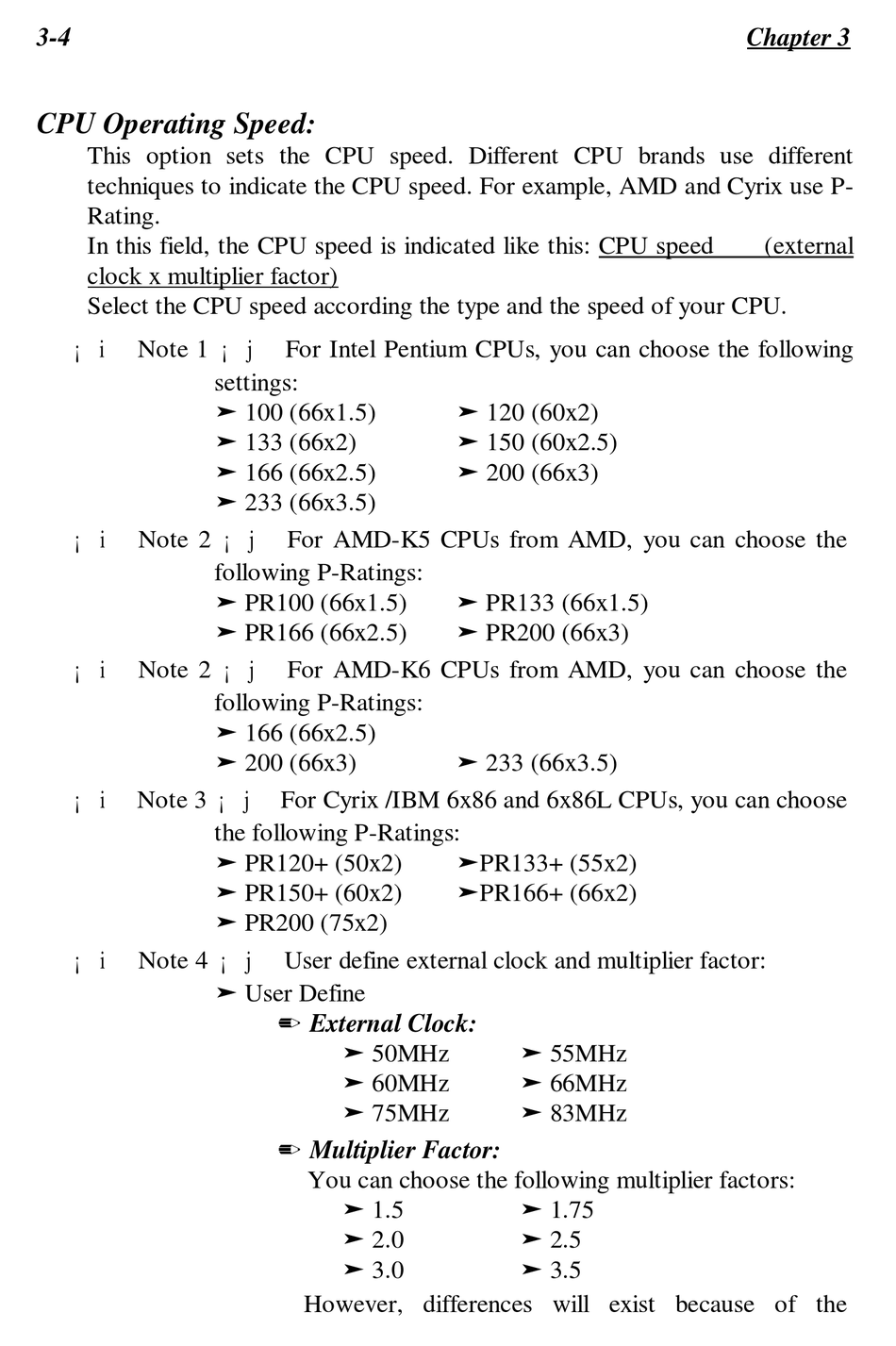

Abit AX5 Instruction Booklet page 46

3-4
CPU Operating Speed:
This option sets the CPU speed. Different CPU brands use different
techniques to indicate the CPU speed. For example, AMD and Cyrix use P-
Rating.
In this field, the CPU speed is indicated like this: CPU speed
clock x multiplier factor)
Select the CPU speed according the type and the speed of your CPU.
¡i Note 1 ¡j For Intel Pentium CPUs, you can choose the following
¡i Note 2 ¡j For AMD-K5 CPUs from AMD, you can choose the
¡i Note 2 ¡j For AMD-K6 CPUs from AMD, you can choose the
¡i Note 3 ¡j For Cyrix /IBM 6x86 and 6x86L CPUs, you can choose
¡i Note 4 ¡j User define external clock and multiplier factor:
settings:
ä 100 (66x1.5)
ä 133 (66x2)
ä 166 (66x2.5)
ä 233 (66x3.5)
following P-Ratings:
ä PR100 (66x1.5)
ä PR166 (66x2.5)
following P-Ratings:
ä 166 (66x2.5)
ä 200 (66x3)
the following P-Ratings:
ä PR120+ (50x2)
ä PR150+ (60x2)
ä PR200 (75x2)
ä User Define
/ External Clock:
ä 50MHz
ä 60MHz
ä 75MHz
/ Multiplier Factor:
You can choose the following multiplier factors:
ä 1.5
ä 2.0
ä 3.0
However, differences will exist because of the
ä 120 (60x2)
ä 150 (60x2.5)
ä 200 (66x3)
ä PR133 (66x1.5)
ä PR200 (66x3)
ä 233 (66x3.5)
äPR133+ (55x2)
äPR166+ (66x2)
ä 55MHz
ä 66MHz
ä 83MHz
ä 1.75
ä 2.5
ä 3.5
Chapter 3
(external
