Ax5; Specifications - Abit AX5 Instruction Booklet

1-2
¬

AX5

n

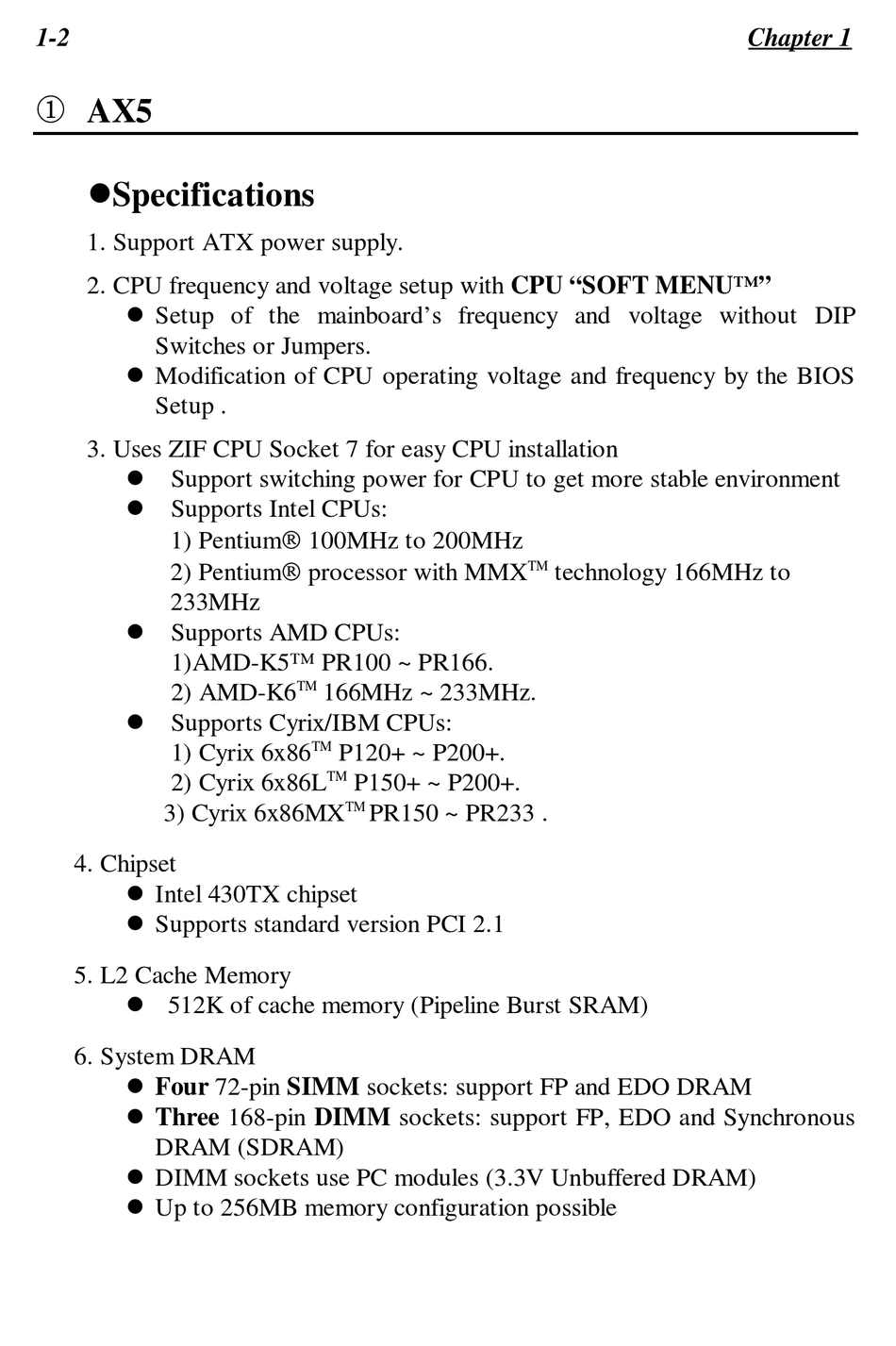

Specifications

1. Support ATX power supply.
2. CPU frequency and voltage setup with CPU "SOFT MENU™"
l Setup of the mainboard's frequency and voltage without DIP
Switches or Jumpers.
l Modification of CPU operating voltage and frequency by the BIOS
Setup .
3. Uses ZIF CPU Socket 7 for easy CPU installation
l Support switching power for CPU to get more stable environment
l Supports Intel CPUs:
1) Pentium 100MHz to 200MHz
2) Pentium processor with MMX
233MHz
l Supports AMD CPUs:
1)AMD-K5™ PR100 ~ PR166.
2) AMD-K6
l Supports Cyrix/IBM CPUs:
1) Cyrix 6x86
2) Cyrix 6x86L
3) Cyrix 6x86MX
4. Chipset
l Intel 430TX chipset
l Supports standard version PCI 2.1
5. L2 Cache Memory
l 512K of cache memory (Pipeline Burst SRAM)
6. System DRAM
l Four 72-pin SIMM sockets: support FP and EDO DRAM
l Three 168-pin DIMM sockets: support FP, EDO and Synchronous
DRAM (SDRAM)
l DIMM sockets use PC modules (3.3V Unbuffered DRAM)
l Up to 256MB memory configuration possible
TM
166MHz ~ 233MHz.
TM
P120+ ~ P200+.
TM
P150+ ~ P200+.
TM
PR150 ~ PR233 .
TM
technology 166MHz to
Chapter 1
