25.2 Channel Routing ASIO at 96 kHz

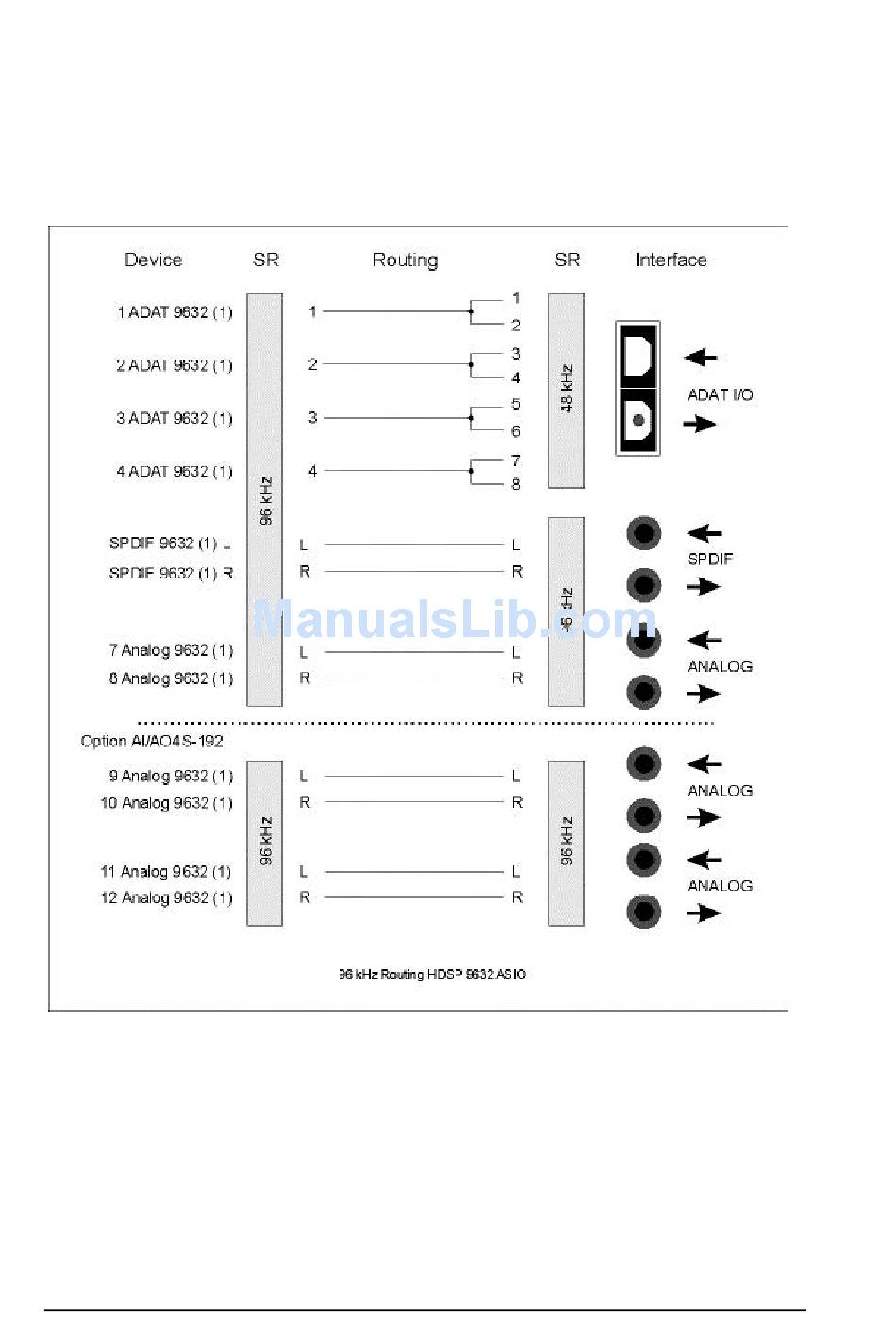

This diagram shows the signal paths in ASIO double speed mode (88.2 / 96 kHz). The devices
available under ASIO have been implemented so that they equal the physical hardware. Signal
routing is identical for record and playback.
Device: The device name in the audio application
SR: Sample Rate
Device name code: Channel in ASIO host, interface, HDSP 9632, card number
User's Guide Hammerfall DSP 9632 © RME
42
