Summary of Contents for Audio Authority 1392A

  • Page 1: User Manual

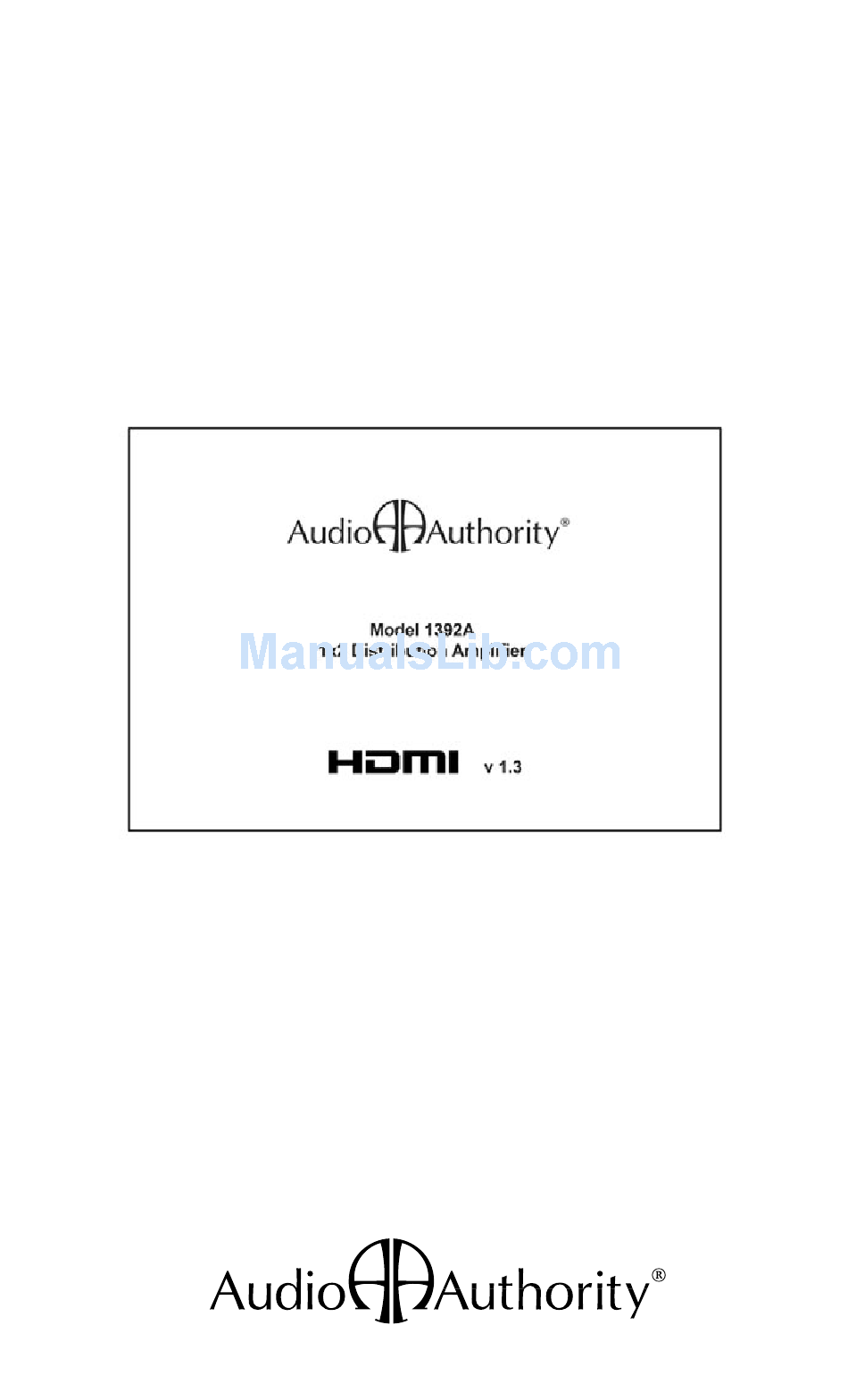

    User Manual Model 1392A 1x2 HDMI Distribution Amplifier...
  • Page 3: Table Of Contents

    Contact Information ....Liability Statement Every effort has been made to ensure that this product is free of defects. Audio Authority cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use.
  • Page 4: Introduction

    HDMI displays without signal degradation or loss of encryption. The 1392A is HDMI v1.3 compliant, supporting Dolby TrueHD and DTS- HD Master Audio. Ultra high bandwidth, equalized inputs, and amplified outputs insure a flawless installation even with long cable runs.
  • Page 5: Getting The Best Results

    2.0 GETTING THE BEST RESULTS Many factors influence the quality and reliability of HDMI switcher installations. Consider the following and take basic precautions suggested below to ensure the best possible performance. • Output display device. The quality of the output signal depends largely upon the type and quality of the HDMI display device used;...
  • Page 6: Checking Package Contents

    Please study the front and rear panel drawings and become familiar with the signal input, outputs and power input. The 1392A has a single HDMI input and two HDMI outputs. The Power LED indicates that the unit is receiving power.
  • Page 7: Troubleshooting

    • Remember that HDMI devices communicate with one another so the source device and all destination devices must be fully HDMI and HDCP compatible. If a problem still persists after trying the above suggestions, contact the Audio Authority Technical Service department via email: support@audioauthority.com, or call 800-322-8346 or 859-233-4599.
  • Page 8: Specifications

    6.0 SPECIFICATIONS Video Inputs HDMI (All Models) 1x via HDMI connector Video Output HDMI 2x via HDMI connector HDMI Transport Frequency Bandwidth 2.25Gbps single link Color Depth 10/12 bit color depth display Supported PC/DVI Resolutions XGA through 1920x1200 Supported HDTV Formats 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p Compliance HDMI V1.3, HDCP V1.1, DVI 1.0...
  • Page 10: Limited Warranty

    7.0 LIMITED WARRANTY Should any consumer use product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only).
  • Page 11: Regulatory Compliance

    8.0 REGULATORY COMPLIANCE The 1392A Distribution Amplifier has been tested for compliance with appropriate FCC and CE rules and regulations and is also RoHS compliant. The power adaptor/supply has been tested for compliance with UL, CE and CSA rules and regulations and is also RoHS compliant.
  • Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 Website: http://www.audioauthority.com E-079 4/08...
