Audio Authority 975A Installation Instructions

Am/fm distribution amplifier

Advertisement

Model 975A AM/FM Distribution Amplifier
Installation Instructions

Installation

Caution
Car Antenna
Included Wire
Antenna
To Radios
System Bus from any Access

Figure 1. Model 975A Hookup

Details. Use one of these
indoor antenna options, or an
outdoor antenna, as shown in
Figure 2.
975A
CAR AM/FM
AMPLIFIER
ANTENNA
CD CHANGER
INPUT
INPUT

From CD Changers

RADIOS
SYSTEM
BUS
Yellow wire on
this side
Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 975A and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Authority 975A

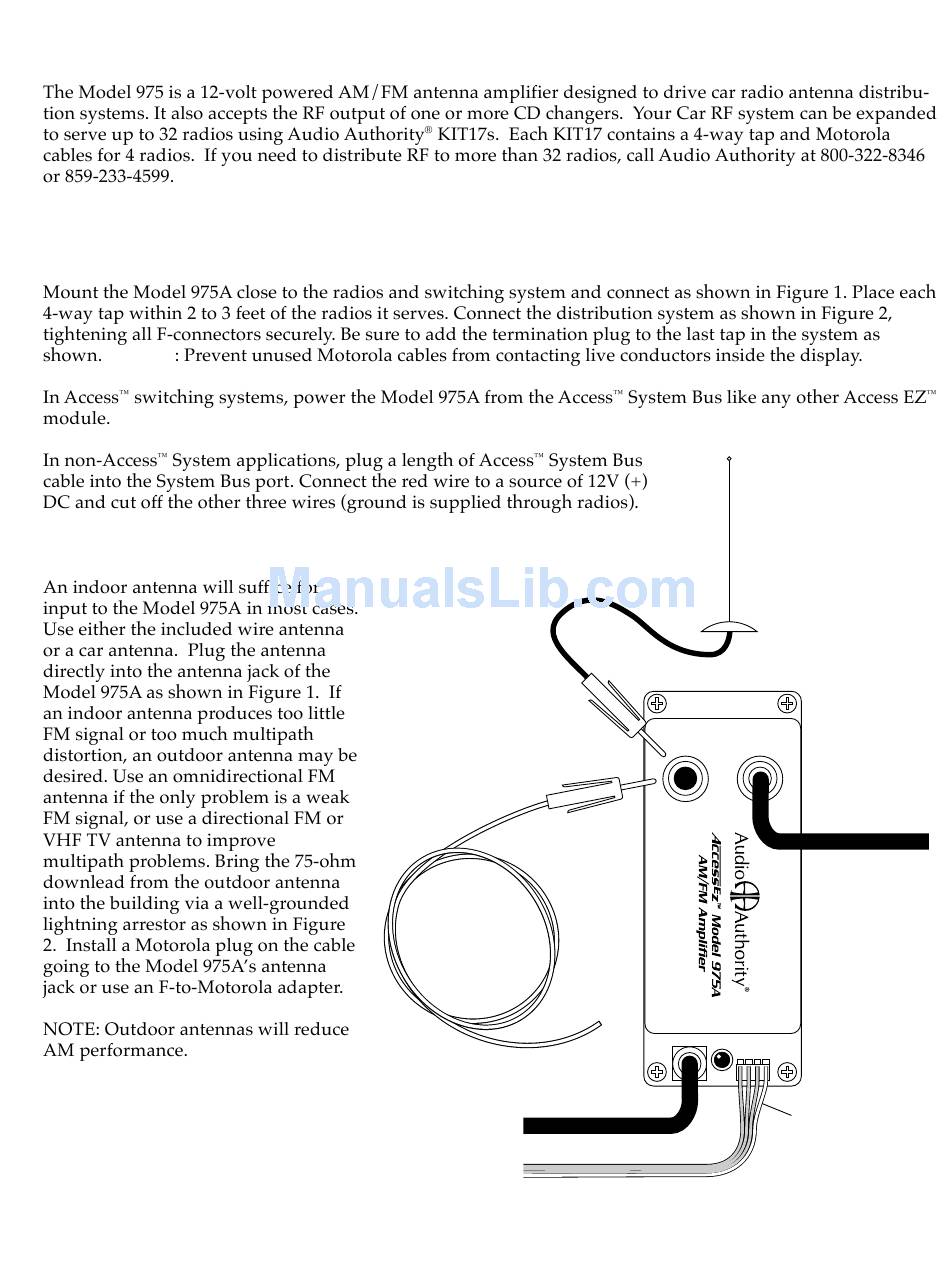

  • Page 1 Model 975A AM/FM Distribution Amplifier Installation Instructions Installation Caution Figure 1. Model 975A Hookup Details. Use one of these indoor antenna options, or an outdoor antenna, as shown in Figure 2. Car Antenna 975A CAR AM/FM AMPLIFIER ANTENNA CD CHANGER INPUT INPUT From CD Changers...
  • Page 2 Car Radios Termination Optional Plug Outdoor Antenna Last 4-Way Tap Lightning Arrestor Ground Distribution Amplifier Changer System Bus RF Modules CD Changers Model 980 Figure 2. A complete FM Distribution System. 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA &...
