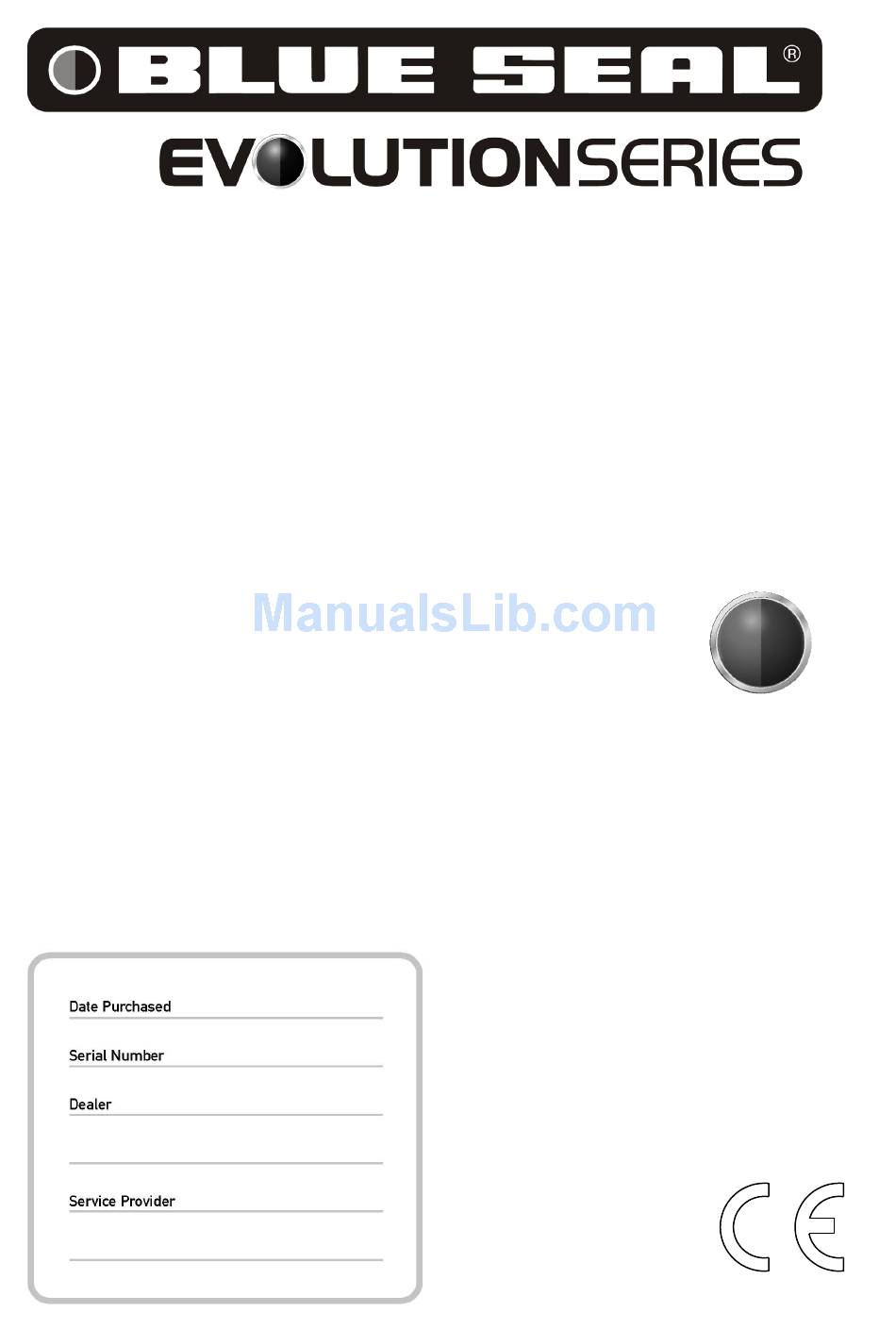

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L ELECTRIC FRYERS E43E E44E For use in GB & IE 229099-12...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
-
Page 3: Table Of Contents
Commissioning Operation ....................9 Operation Guide Description of the Controls (E43 & E44 Fryers Only) Description of the Controls (E43E & E44E Fryers Only) Control Panel Functions - (E43E & E44E Fryers Only) Controller Basic Programming Mode - (E43E & E44E Fryers Only) - Page 4 Contents Fault Finding ................... 19 Guide to Cooking Problems with Fryer Fault Finding the Electrical System Wiring Schematics................... 22 Controller Advanced Programming Mode ..........26 Timing Mode Temperature Offset Temperature Display Mode Programming the Melt Cycle Setting the Temperature Units System Programmable Default Settings Replacement Parts List ................
-
Page 5: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL Electric Deep Fryer, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal Electric Deep Fryer, there are two important things you can do. -
Page 6: Specifications
IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD Power Supply Amps Total Power Model Input Voltage Type Frequency E43 / E43E 400-415Vac 3 P+N+E 50 / 60Hz 17kW 23.6 23.6 23.6 E44 / E44E 400-415Vac... -
Page 7: Dimensions
Dimensions E43 FRYER E44 FRYER Electrical Entry Point. - Page 8 Dimensions E43E FRYER E44E FRYER Electrical Entry Point.
-
Page 9: Installation
Installation shall comply with local electrical and health and safety requirements. Blue Seal Deep Fryers are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering health and safety, electrical and fire safety. -
Page 10: Electrical Connection
Installation Electrical Connection NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. Each fryer should be connected to an adequately protected power supply and an isolation switch mounted adjacent to, but not behind fryer. This switch must be clearly marked and readily accessible in case of fire. Check electricity supply is correct as shown on Rating Plate attached to the inside of access door. -
Page 11: Operation
This appliance is for professional use and is only to be used by qualified persons. Only authorised service persons are to carry out installation or servicing operations. Description of the Controls (E43 and E44 Fryers Only) E44 Manual Controls - Twin Tank Temperature Control Knob Temperature Graduations 60°C to 200°C. -
Page 12: Control Panel Functions - (E43E & E44E Fryers Only)
Operation Control Panel Functions -E43E and E44E Fryers Only Each control panel comprises the following:- One 4 digit, seven segment display with a 0.5” high, bright green LED display. Three green LED indicator lights located under each of the 3 Timer Controls. 6 Touch Control Keys;- ‘ON’... -
Page 13: Controller Basic Programming Mode - (E43E & E44E Fryers Only)
Operation Controller Basic Programming Mode - E43E and E44E Fryers Only The following Parameters can be changed in Controller Basic Programming Mode:- Timer 1 - Cook Time Settings. Timer 2 - Cook Time Settings. Timer 3 - Cook Time Settings. ... -
Page 14: Filling The Tank(S)
E43 and E44; - Set the tank control thermostat to 120°C and switch the appliance ‘ON’ for 30 seconds and then ‘OFF’ for 1 minute. Repeat the cycle until all the shortening is melted enough to apply full power to the heating elements. -
Page 15: Operation Of The Appliance
HOT. WHILST THE FRYER IS STILL E43 and E44 Models Only. Turn ‘ON’ mains power at mains supply, ensure that Temperature Cut-Out Reset Switch has been reset (which is located behind front access door, one for each tank on twin tank fryers E44 and E44E). -
Page 16: E43E And E44E Fryers Only
Operation E43E and E44E Fryers Only. Fryer Operation (Flow Chart) Refer to ‘Controller Basic Programming Mode’ at the start of this section for the basic programmable settings for the controller. Refer to the ‘Controller Advanced Programming Mode’ section for controller advanced programming. If Melt Cycle is turned ON. -
Page 17: 'Over-Temperature' Control System
Operation To Use the Timers To Use the Temperature Display NOTE: Refer to ‘Basic Programming Mode’ for NOTE: Refer to ‘Basic Programming Mode’ for information on how to set the Timer information on how to set the Cooking Pre-Set times. Temperature. -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance General Warning DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY TO RYER WHILST HOT. RYER IS STILL Caution Always turn ‘Off’ electrical supply before cleaning the fryer. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. - Page 19 Cleaning and Maintenance Opening the Drain Valve Warning OT OIL WILL BURN OT RUSH THIS JOB a. Lift the locking slide on the valve handle (Fig 5) to release valve. b. While holding the locking slide in the withdrawn position, rotate the handle anticlockwise (Fig 6) to open the valve.
-
Page 20: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: If fryer usage is very high, we recommend that the weekly cleaning procedure is carried out more frequently. Proceed to drain and filter the tank as for 'Daily Cleaning'. Do not refill tank with frying medium until it has been thoroughly cleaned as shown below. -
Page 21: Fault Finding
Fault Finding Guide to Cooking Problems with Fryer This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. - Page 22 Fault Finding Fault Possible Cause Remedy Insufficient turnover of oil. Maintain a minimum quantity of oil in fryer for more rapid turnover or increase the quantity of food fried in fryer. Replace with fresh oil every 3 to 5 days. Continual frying with excess moisture on Drain foods before frying, pat food dry.
-
Page 23: Fault Finding The Electrical System
Fault Finding Fault Finding the Electrical System Fault Possible Cause Remedy Check mains power is supplied to the unit Turn On power. Reset circuit breaker or and that a circuit breaker or fuse has not replace blown fuse. tripped / blown. Check element is flat and that the tilt Adjust microswitch so that the microswitch Elements do not Heat Up. -
Page 24: Wiring Schematics
Wiring Schematics E43 Single Tank ELEMENTS THERMOSTAT THERMOSTAT PANEL HEAT SELECTOR POWER SWITCH MICROSWITCH OVERTEMP OVERTEMP PANEL GEAR TRAY EARTH... - Page 25 Wiring Schematics E44 Twin Tank ELEMENTS CONTROL PANEL THERMOSTAT HEAT HEAT SELECTOR SELECTOR POWER POWER SWITCH SWITCH MICROSWITCH OVERTEMP THERMOSTAT PANEL EARTH GEAR TRAY...
- Page 26 Wiring Schematics E43E Single Tank ELEMENTS BROWN BROWN CONTROL PANEL BROWN BROWN MICROSWITCH OVERTEMP OVERTEMP PANEL GEAR TRAY...
- Page 27 Wiring Schematics E44E Twin Tank...
-
Page 28: Controller Advanced Programming Mode
Controller Advanced Programming Mode The following Parameters can be accessed and adjusted in the Advanced Programming Mode:- Timing Mode (Straight or Flexi cook time). Temperature Offset (Calibration Setting) -14° to +14°. Temperature Display Mode (Temp display or prompt display). ... -
Page 29: Temperature Offset
Controller Advanced Programming Mode Temperature Offset Factory Default Settings The display temperature can be adjusted by between -14° to +14°. O° To Calibrate the Control Temperature Set control temperature to 170°. Measure the oil temperature that the control is cycling at. higher positive ... -
Page 30: Programming The Melt Cycle
Controller Advanced Programming Mode Programming the ‘Melt Cycle’. One of the following 3 options may be selected:- ‘L’ (Liquid). ‘S’ (Solid). ‘O’ (Override). To change the programmed ‘Melt Cycle’, press either ‘Timer 1’ or ‘Timer 3’ Key to scroll through the three options. -
Page 31: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual).
